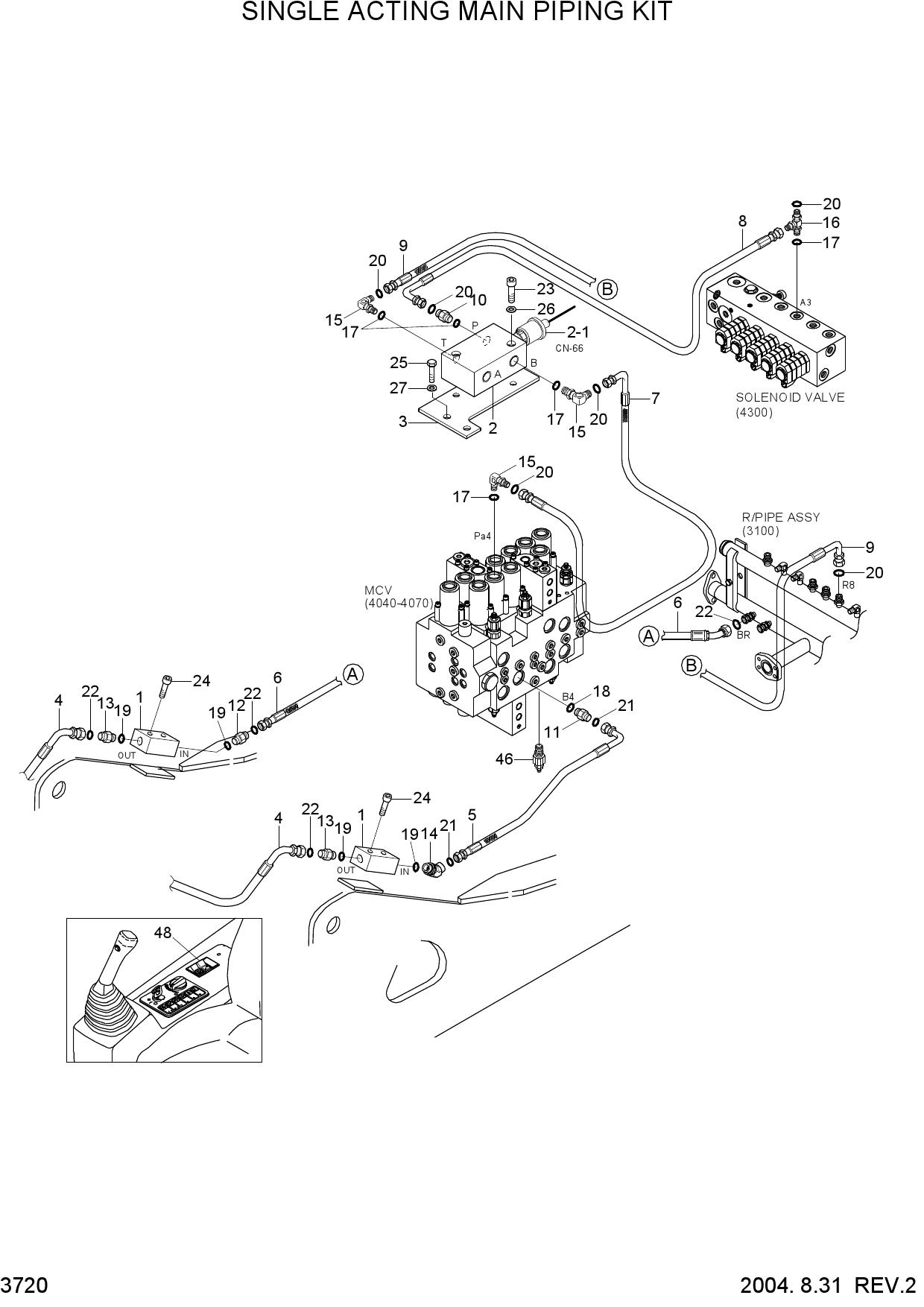

Запчасти для колесных экскаваторов Hyundai R170W-7 SINGLE ACTING MAIN PIPING KIT
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N5-94710 | BLOCK-HOSE JOINT | |
| 2 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 2-1 | XKBN-00192 | COIL-BREAKER SOL | |
| 3 | 31N6-93230 | BRACKET-SOL VLV | |
| 4 | P973-166325 | HOSE ASSY-ORFSXFLG | |
| 5 | P933-126016 | HOSE ASSY-ORFS 0X90 | |
| 6 | P923-163020 | HOSE ASSY-ORFS 0X45 | |
| 7 | P910-042052 | HOSE ASSY-ORFS 0X0 | |
| 8 | P930-042018 | HOSE ASSY-ORFS 0X90 | |
| 9 | P930-042046 | HOSE ASSY-ORFS 0X90 | |
| 10 | X500-110001 | CONNECTOR-ORFS | |
| 11 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 12 | X500-110005 | CONNECTOR-ORFS | |
| 13 | X511-116556 | CONNECTOR-ORFS | |
| 14 | X530-110018 | ELBOW-45,ORFS | |
| 15 | X520-110001 | ELBOW-90,ORFS | |
| 16 | X820-045151 | TEE-R/TYPE,ORFS | |
| 17 | S631-011004 | O-RING | |
| 18 | S631-024004 | O-RING | |
| 19 | S631-029004 | O-RING | |
| 20 | S621-011001 | O-RING | |
| 21 | S621-018001 | O-RING | |
| 22 | S621-021001 | O-RING | |
| 23 | S109-080456 | BOLT-SOCKET | |
| 24 | S109-120556 | BOLT-SOCKET | |
| 25 | S017-100256 | BOLT-HEX | |
| 26 | S411-080006 | WASHER-SPRING | |
| 27 | S411-100006 | WASHER-SPRING | |
| 46 | 31N4-90530 | PORT RELIEF VALVE | |
| 48 | 21E6-30540 | SWITCH-BREAKER |
