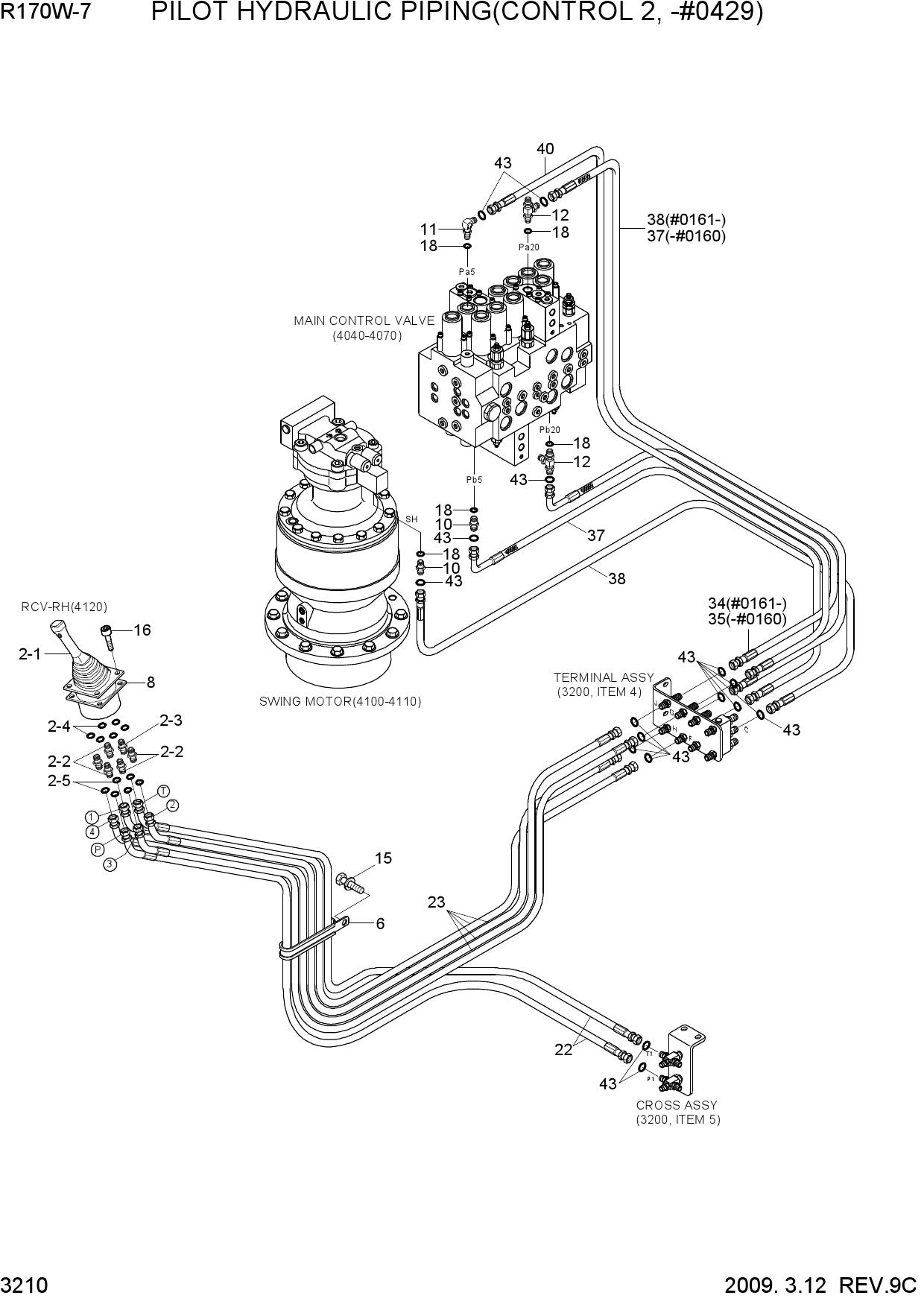

Запчасти для колесных экскаваторов Hyundai R170W-7 PILOT HYD PIPING(CONTROL 2, -#0429)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N6-20210 | RCV SUB ASSY-RH | |
| 2 | 31N6-25210 | RCV SUB ASSY-RH | |
| 2-2 | P010-110002 | CONNECTOR | |
| 2-2 | X500-110001 | CONNECTOR-ORFS | |
| 2-3 | 31EK-20100 | FILTER-LAST GUARD | |
| 2-3 | 31N6-25060 | FILTER-LAST GUARD | |
| 2-4 | S631-011004 | O-RING | |
| 2-5 | S621-011001 | O-RING | |
| 6 | 31E7-0312 | CLAMP-HOSE | |
| 7 | 31M6-51061 | SHIM(3.2T) | |
| 10 | P010-110002 | CONNECTOR | |
| 10 | X500-110001 | CONNECTOR-ORFS | |
| 11 | P020-110001 | ELBOW-90 | |
| 11 | X520-110001 | ELBOW-90,ORFS | |
| 11 | X520-110001 | ELBOW-90,ORFS | |
| 12 | P320-040404 | TEE-RUN TYPE | |
| 12 | X820-045151 | TEE-R/TYPE,ORFS | |
| 15 | S037-102042 | BOLT-W/WASHER | |
| 16 | S175-060256 | SCREW-SOCKET RD HD | |
| 18 | S631-011004 | O-RING | |
| 22 | P850-042028 | HOSE ASSY-SYN 0X45 | |
| 22 | X410-042028 | HOSE ASSY-SYNFLEX,ORFS | |
| 23 | P850-042035 | HOSE ASSY-SYN 0X45 | |
| 23 | X410-042035 | HOSE ASSY-ORFS 0X45 | |
| 34 | X400-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 35 | P840-042021 | HOSE ASSY-SYN THD | |
| 35 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | P840-042030 | HOSE ASSY-SYN THD | |
| 37 | X400-042030 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | X400-042024 | HOSE ASSY-SYNFLEX,ORFS | |
| 38 | P840-042026 | HOSE ASSY-SYN THD | |
| 38 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 38 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 40 | P840-042031 | HOSE ASSY-SYN THD | |
| 40 | X400-042031 | HOSE ASSY-SYNFLEX,ORFS | |
| 40 | X400-042029 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | S621-011001 | O-RING |
