- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM, #0022-)
- UPPER HYD PIPING 2(ADJUST BOOM, #0022-)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1, -#0429)
- PILOT HYD PIPING(CONTROL 2, -#0429)
- PILOT HYD PIPING(CONTROL 3, -#0429)
- PILOT HYD PIPING(CONTROL 1, #0430-)
- PILOT HYD PIPING(CONTROL 2, #0430-)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 1, 2-BLOCK, OPT)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 2, 2-BLOCK, OPT)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4, #0430-)
- PILOT HYD PIPING(BASE 3, 2-BLOCK, OPT)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1(-#0978)
- POWER TRAIN HYD PIPING 2(-#0978)
- POWER TRAIN HYD PIPING 1(#0979-)
- POWER TRAIN HYD PIPING 2(#0979-)
- LOWER HYD PIPING 1(-#0978)
- LOWER HYD PIPING 2(-#0978)
- LOWER HYD PIPING 1(#0979-)
- LOWER HYD PIPING 2(#0979-)
- LOWER HYD PIPING(REAR BLADE)
- LOWER HYD PIPING(REAR OUTRIGGER)
- LOWER HYD PIPING 1(4 OUTRIGGER)
- LOWER HYD PIPING 2(4 OUTRIGGER)
- LOWER HYD PIPING 1(F/OUT R/BLD)
- LOWER HYD PIPING 2(F/OUT R/BLD)
- LOWER HYD PIPING 1(F/BLD R/OUT)
- LOWER HYD PIPING 2(F/BLD R/OUT)
- LOWER HYD PIPING 1(F/BLD R/BLD, #0092-)
- LOWER HYD PIPING 2(F/BLD R/BLD, #0092-)
- BOOM HYD PIPING(5.1M, STD)
- BOOM HYD PIPING(ADJUST BOOM, #0022-)
- BOOM GREASE LUB SYSTEM(5.1M,STD)
- BOOM GREASE LUB SYSTEM(ADJ/BOOM, #0022-)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING(2.6M)
- ARM HYD PIPING(2.2M, STD)
- ARM HYD PIPING(3.1M)
- ARM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING(#0092-)
- QUICK CLAMP(HOOK TYPE, #0728-)
- QUICK CLAMP(CLOSE TYPE, #0728-)
- QUICK CLAMP CYLINDER(#0728-)
- QUICK CLAMP ASSY(#0092-)
- QUICK CLAMP CYLINDER(#0092-)
- QUICK CLAMP ASSY(#0590-)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- D/ACT MAIN PIPING KIT(ADJUST BOOM)
- D/ACT ATTACH PIPING KIT(ADJUST BOOM)
- SINGLE ACTING MAIN PIPING KIT

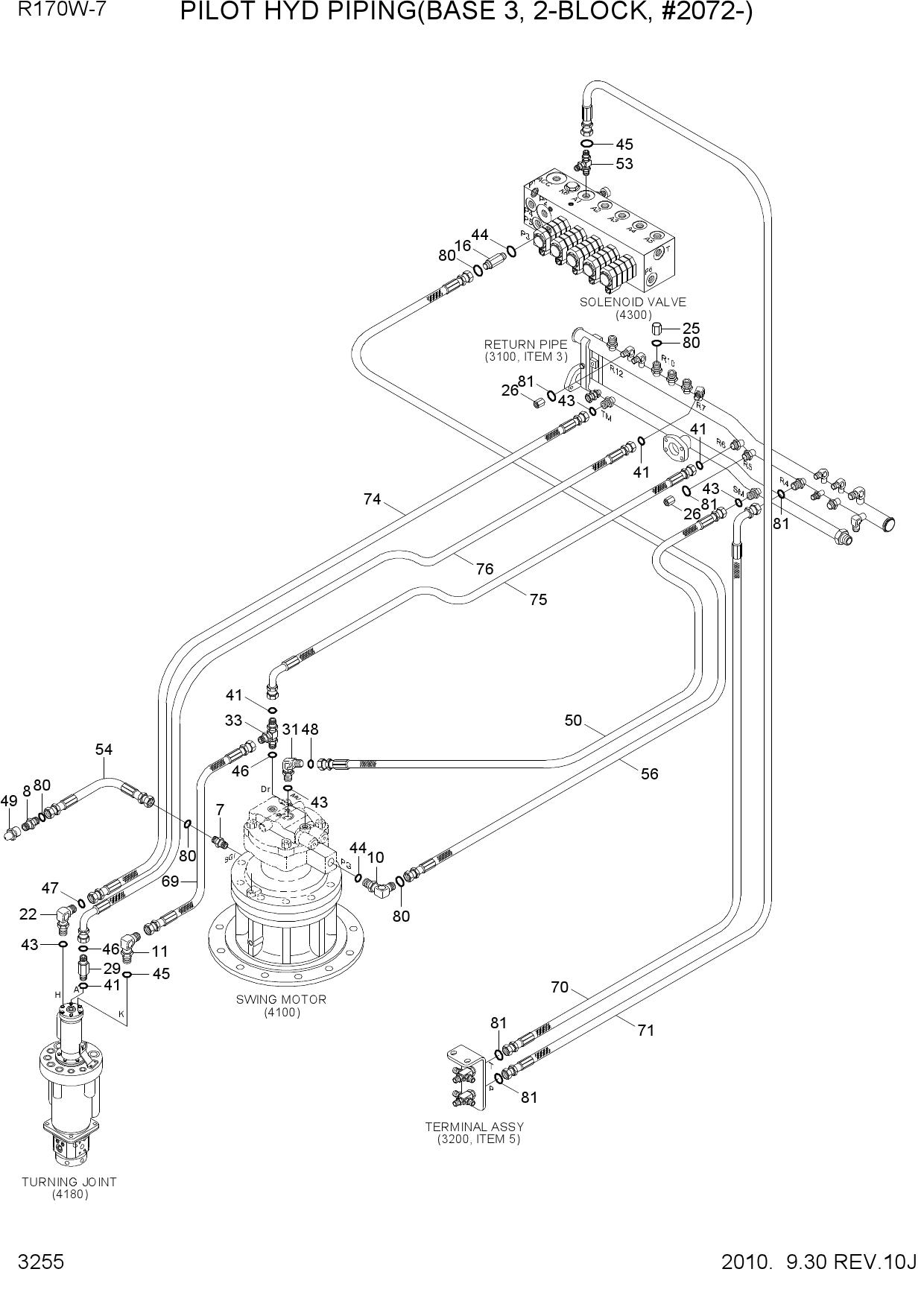

Запчасти для колесных экскаваторов Hyundai R170W-7 PILOT HYD PIPING(BASE 3, 2-BLOCK, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 7 | P010-430002 | CONNECTOR | |
| 8 | P010-430011 | CONNECTOR | |
| 10 | X520-110001 | ELBOW-90,ORFS | |
| 16 | X511-104514 | CONNECTOR-LONG,ORFS | |
| 25 | X710-100102 | CAP-ORFS | |
| 26 | X710-100103 | CAP-HYD,ORFS | |
| 31 | X500-110005 | CONNECTOR-ORFS | |
| 33 | X820-085253 | TEE-R/TYPE,ORFS | |
| 41 | S621-014001 | O-RING | |
| 43 | S621-021001 | O-RING | |
| 44 | S631-011004 | O-RING | |
| 45 | S631-014004 | O-RING | |
| 46 | S631-018004 | O-RING | |
| 47 | S631-024004 | O-RING | |
| 48 | S631-029004 | O-RING | |
| 49 | S651-810002 | NIPPLE-GREASE | |
| 50 | P930-162016 | HOSE ASSY-ORFS 0X90 | |
| 53 | X820-065251 | TEE-R/TYPE,ORFS | |
| 54 | P840-042026 | HOSE ASSY-SYN THD | |
| 56 | X400-042044 | HOSE ASSY-SYNFLEX,ORFS | |
| 69 | P910-062013 | HOSE ASSY-ORFS 0X0 | |
| 70 | P930-062029 | HOSE ASSY-ORFS 0X90 | |
| 71 | P910-062057 | HOSE ASSY-ORFS 0X0 | |
| 74 | P930-162041 | HOSE ASSY-ORFS 0X90 | |
| 75 | P930-082014 | HOSE ASSY-ORFS 0X90 | |
| 76 | P930-082031 | HOSE ASSY-ORFS 0X90 | |
| 80 | S621-011001 | O-RING | |
| 81 | S621-012001 | O-RING |
