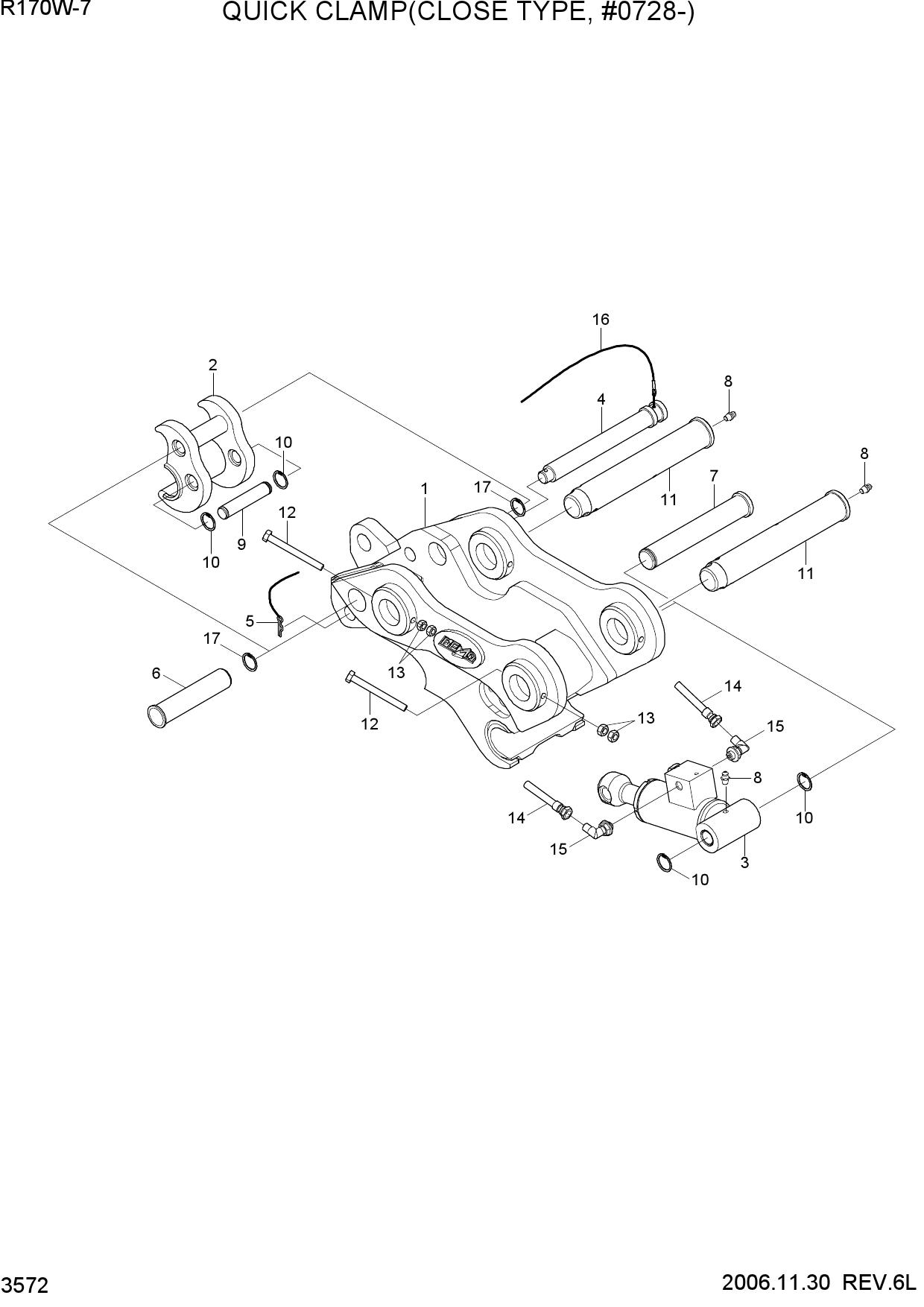

Запчасти для колесных экскаваторов Hyundai R170W-7 QUICK CLAMP(CLOSE TYPE, #0728-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N5-95820 | QUICK CLAMP ASSY | |
| 1 | XKBN-00317 | BODY | |
| 2 | XKBN-00102 | HITCH | |
| 4 | XKBN-00104 | PIN-SAFETY | |
| 5 | XKBN-00163 | PIN-SNAP | |
| 6 | XKBN-00314 | PIN-HITCH | |
| 7 | XKBN-00315 | PIN-FRAME | |
| 8 | XKBN-00009 | NIPPLE-GREASE | |
| 9 | XKBN-00108 | PIN-CYLINDER | |
| 10 | XKBN-00109 | RING-SNAP | |
| 11 | XKBN-00110 | PIN-BRACKET | |
| 12 | XKBN-00205 | BOLT-HEX | |
| 13 | XKBN-00196 | NUT-HEX | |
| 14 | XKBN-00112 | HOSE-PROTECTOR | |
| 15 | XKBN-00016 | ELBOW-90 | |
| 16 | XKBN-00083 | WIRE ASSY | |
| 17 | XKBN-00206 | RING-SNAP |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R170W-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
