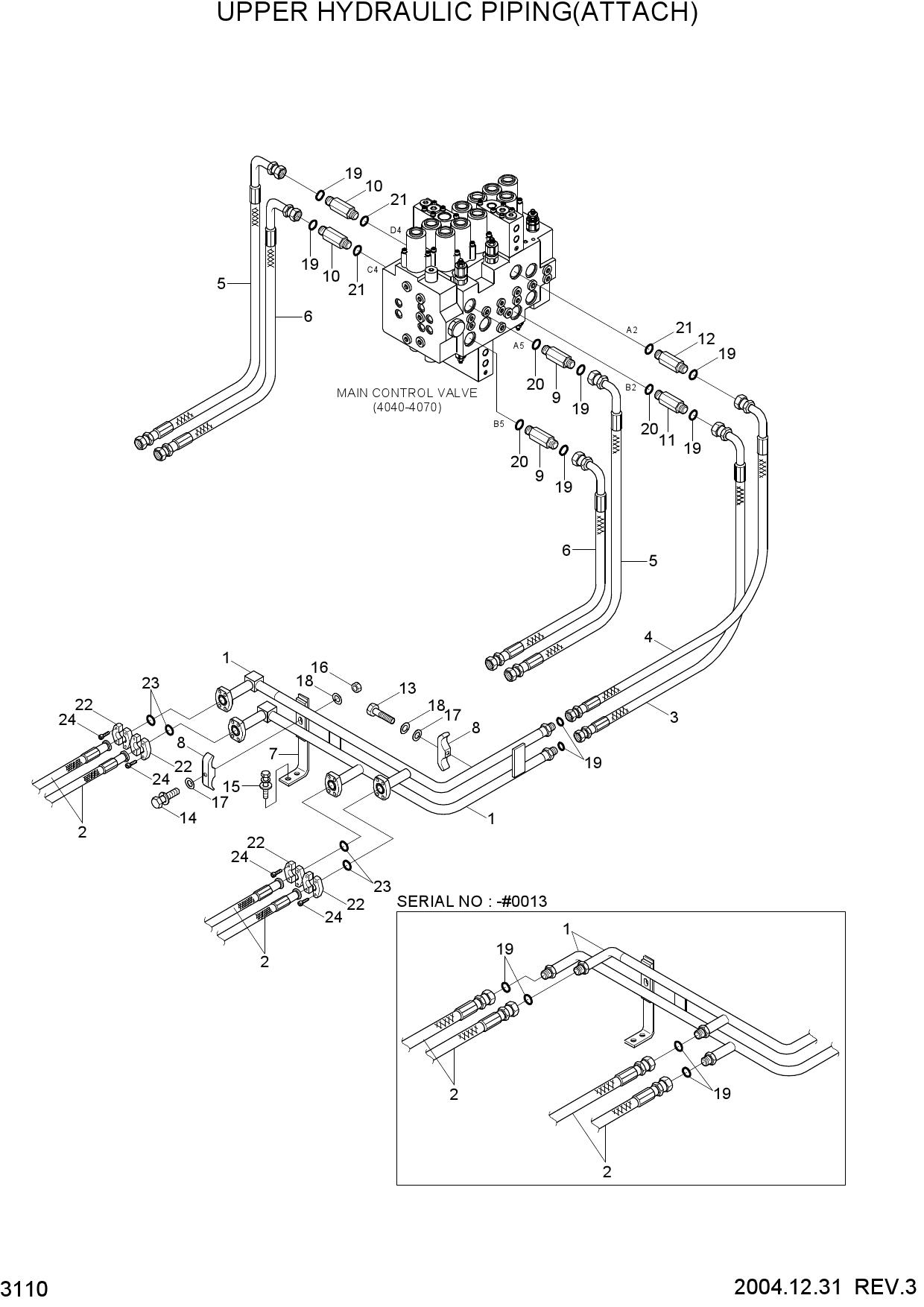

Запчасти для колесных экскаваторов Hyundai R170W-7 UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N5-10311 | PIPE ASSY | |
| 1 | 31N5-10312 | PIPE ASSY | |
| 2 | P913-127016 | HOSE ASSY-ORFS 0X0 | |
| 2 | 31N5-10260 | HOSE ASSY | |
| 3 | P930-127017 | HOSE ASSY-ORFS 0X90 | |
| 4 | P930-127019 | HOSE ASSY-ORFS 0X90 | |
| 5 | P930-127024 | HOSE ASSY-ORFS 0X90 | |
| 6 | P930-127026 | HOSE ASSY-ORFS 0X90 | |
| 7 | 31N5-10340 | BRACKET | |
| 8 | 31N4-12270 | CLAMP-PIPE | |
| 9 | X511-112548 | CONNECTOR-LONG,ORFS | |
| 10 | X511-116548 | CONNECTOR-LONG,ORFS | |
| 11 | X511-112546 | CONNECTOR-LONG,ORFS | |
| 12 | X511-116546 | CONNECTOR-LONG,ORFS | |
| 13 | S017-100606 | BOLT-HEX | |
| 14 | S017-100856 | BOLT-HEX | |
| 15 | S037-103026 | BOLT-W/WASHER | |
| 16 | S207-101006 | NUT-HEX | |
| 17 | S403-102006 | WASHER-PLAIN | |
| 18 | S411-100006 | WASHER-SPRING | |
| 19 | S621-018001 | O-RING | |
| 19 | S621-018001 | O-RING | |
| 20 | S631-024004 | O-RING | |
| 21 | S631-029004 | O-RING | |
| 22 | P173-120102 | FLANGE-HYD,SPLIT | |
| 23 | Y171-019004 | O-RING | |
| 24 | S109-100356 | BOLT-SOCKET | |
| 24 | S109-100306 | BOLT-SOCKET |
