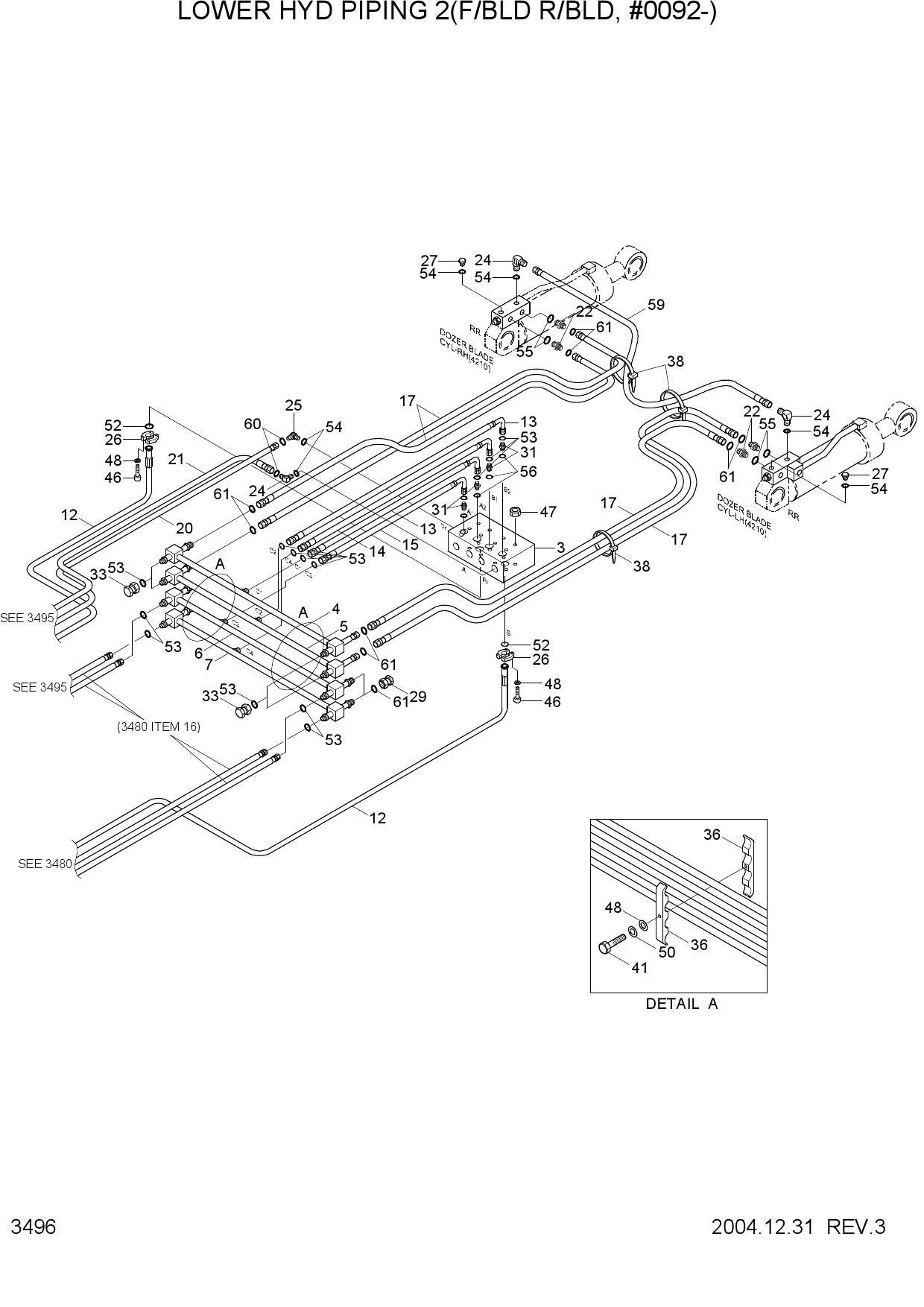

Запчасти для колесных экскаваторов Hyundai R170W-7 LOWER HYD PIPING 2(F/BLD R/BLD, #0092-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31ER-12010 | SELECTOR VALVE | |
| 4 | 31N5-70111 | PIPE ASSY | |
| 5 | 31N5-70121 | PIPE ASSY | |
| 6 | 31N5-70311 | PIPE ASSY | |
| 7 | 31N5-70321 | PIPE ASSY | |
| 12 | 31N5-70370 | HOSE ASS-ORFS | |
| 13 | 31N5-70381 | HOSE ASSY-ORFS | |
| 14 | 31N5-70390 | HOSE ASSY-ORFS | |
| 15 | P933-087009 | HOSE ASSY-ORFS 0X90 | |
| 17 | P913-067024 | HOSE ASSY-ORFS 0X0 | |
| 20 | P923-042024 | HOSE ASSY-ORFS 0X45 | |
| 21 | P933-042029 | HOSE ASSY-ORFS 0X90 | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 24 | X520-110001 | ELBOW-90,ORFS | |
| 25 | X530-110001 | ELBOW-45,ORFS | |
| 26 | P173-160104 | FLANGE-HYD,SPLIT | |
| 27 | P220-110102 | PLUG-HEX | |
| 29 | X710-100103 | CAP-HYD,ORFS | |
| 31 | X500-110003 | CONNECTOR-ORFS | |
| 33 | X710-100104 | CAP-DUST | |
| 36 | 31EK-70370 | CLAMP-PIPE | |
| 38 | S552-102370 | CLAMP-BAND | |
| 41 | S017-100502 | BOLT-HEX | |
| 46 | S109-101306 | BOLT-SOCKET | |
| 47 | S205-101006 | NUT-HEX | |
| 48 | S403-101006 | WASHER-PLAIN | |
| 50 | S411-100002 | WASHER-SPRING | |
| 52 | Y171-024004 | O-RING | |
| 53 | S621-014001 | O-RING | |
| 54 | S631-011004 | O-RING | |
| 55 | S631-014004 | O-RING | |
| 56 | S631-018004 | O-RING | |
| 59 | P913-047018 | HOSE ASSY-ORFS 0X0 | |
| 60 | S621-011001 | O-RING | |
| 61 | S621-012001 | O-RING |
