- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM, #0022-)
- UPPER HYD PIPING 2(ADJUST BOOM, #0022-)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1, -#0429)
- PILOT HYD PIPING(CONTROL 2, -#0429)
- PILOT HYD PIPING(CONTROL 3, -#0429)
- PILOT HYD PIPING(CONTROL 1, #0430-)
- PILOT HYD PIPING(CONTROL 2, #0430-)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 1, 2-BLOCK, OPT)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 2, 2-BLOCK, OPT)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4, #0430-)
- PILOT HYD PIPING(BASE 3, 2-BLOCK, OPT)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1(-#0978)
- POWER TRAIN HYD PIPING 2(-#0978)
- POWER TRAIN HYD PIPING 1(#0979-)
- POWER TRAIN HYD PIPING 2(#0979-)
- LOWER HYD PIPING 1(-#0978)
- LOWER HYD PIPING 2(-#0978)
- LOWER HYD PIPING 1(#0979-)
- LOWER HYD PIPING 2(#0979-)
- LOWER HYD PIPING(REAR BLADE)
- LOWER HYD PIPING(REAR OUTRIGGER)
- LOWER HYD PIPING 1(4 OUTRIGGER)
- LOWER HYD PIPING 2(4 OUTRIGGER)
- LOWER HYD PIPING 1(F/OUT R/BLD)
- LOWER HYD PIPING 2(F/OUT R/BLD)
- LOWER HYD PIPING 1(F/BLD R/OUT)
- LOWER HYD PIPING 2(F/BLD R/OUT)
- LOWER HYD PIPING 1(F/BLD R/BLD, #0092-)
- LOWER HYD PIPING 2(F/BLD R/BLD, #0092-)
- BOOM HYD PIPING(5.1M, STD)
- BOOM HYD PIPING(ADJUST BOOM, #0022-)
- BOOM GREASE LUB SYSTEM(5.1M,STD)
- BOOM GREASE LUB SYSTEM(ADJ/BOOM, #0022-)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING(2.6M)
- ARM HYD PIPING(2.2M, STD)
- ARM HYD PIPING(3.1M)
- ARM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING(#0092-)
- QUICK CLAMP(HOOK TYPE, #0728-)
- QUICK CLAMP(CLOSE TYPE, #0728-)
- QUICK CLAMP CYLINDER(#0728-)
- QUICK CLAMP ASSY(#0092-)
- QUICK CLAMP CYLINDER(#0092-)
- QUICK CLAMP ASSY(#0590-)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- D/ACT MAIN PIPING KIT(ADJUST BOOM)
- D/ACT ATTACH PIPING KIT(ADJUST BOOM)
- SINGLE ACTING MAIN PIPING KIT

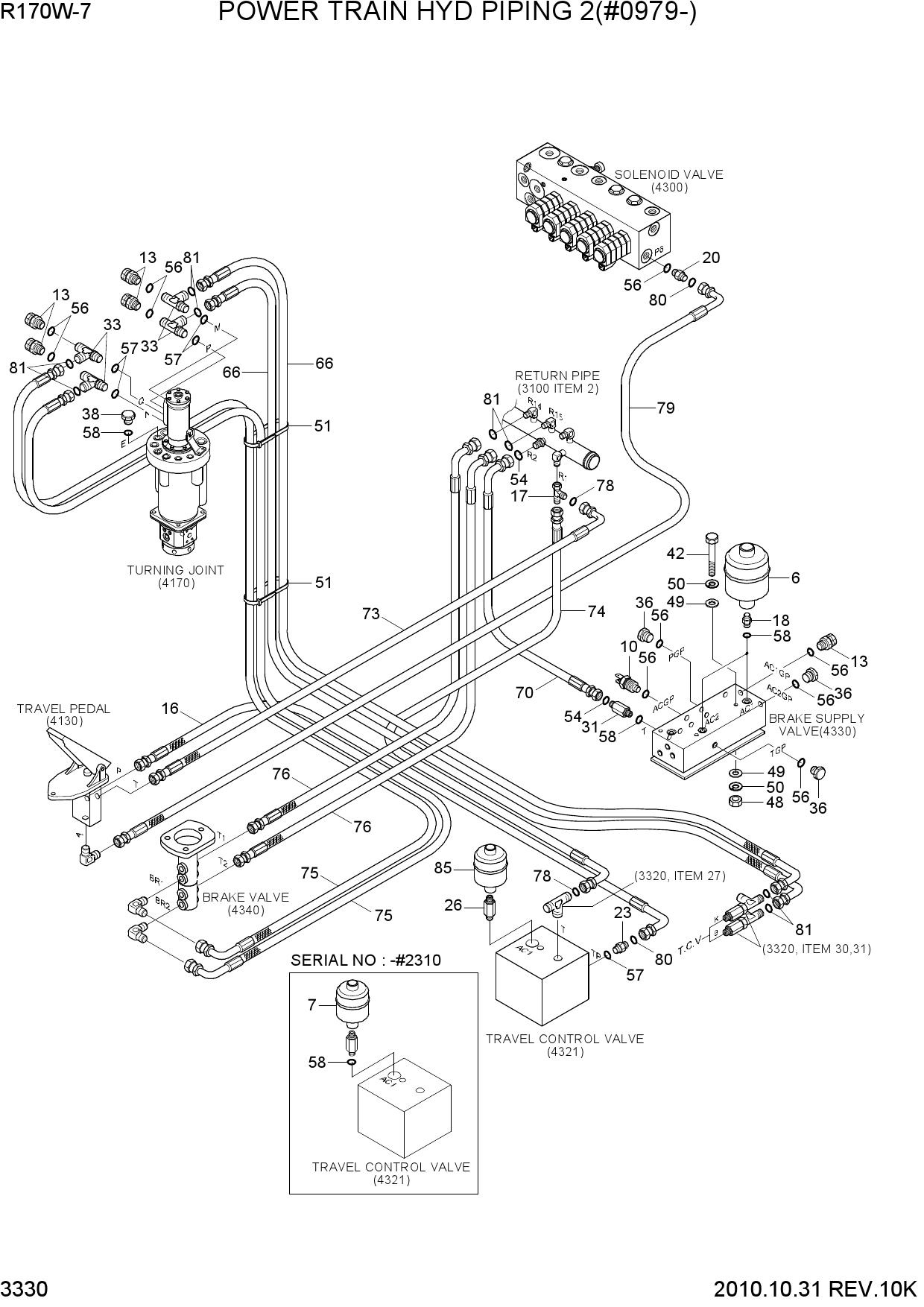

Запчасти для колесных экскаваторов Hyundai R170W-7 POWER TRAIN HYD PIPING 2(#0979-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 81L1-0003 | ACCUMULATOR | |
| 7 | 31EC-02190 | ACCUMULATOR | |
| 10 | 31LF-00500 | SWITCH-PRESSURE | |
| 13 | 31EK-11130 | COUPLING-SCREW | |
| 16 | X420-042044 | HOSE ASSY-ORFS 0X90 | |
| 17 | X840-535153 | TEE-R/TYPE,ORFS | |
| 18 | 31N6-30110 | CONNECTOR | |
| 20 | X500-110001 | CONNECTOR-ORFS | |
| 23 | X500-110013 | CONNECTOR-ORFS | |
| 26 | 31N6-30120 | CONNECTOR | |
| 26 | 31Q6-30160 | CONNECTOR-LONG | |
| 31 | 31N4-31280 | CONNECTOR | |
| 33 | 31N5-30040 | TEE | |
| 36 | P220-110102 | PLUG-HEX | |
| 38 | P220-110104 | PLUG-HEX | |
| 42 | S017-100906 | BOLT-HEX | |
| 48 | S205-101006 | NUT-HEX | |
| 49 | S403-102006 | WASHER-PLAIN | |
| 50 | S411-100006 | WASHER-SPRING | |
| 51 | S551-050203 | CLAMP-BAND | |
| 54 | Y161-016001 | O-RING | |
| 56 | S631-011004 | O-RING | |
| 57 | S631-014004 | O-RING | |
| 58 | S631-018004 | O-RING | |
| 58 | S631-018004 | O-RING | |
| 66 | P930-062047 | HOSE ASSY-ORFS 0X90 | |
| 66 | P910-064047 | HOSE ASSY-ORFS 0X0 | |
| 70 | P930-082026 | HOSE ASSY-ORFS 0X90 | |
| 73 | X420-042050 | HOSE ASSY-SYNFLEX,ORFS | |
| 74 | P930-082024 | HOSE ASSY-ORFS 0X90 | |
| 75 | X420-062041 | HOSE ASSY-SYNFLEX,ORFS | |
| 76 | X420-062049 | HOSE ASSY-ORFS 0X90 | |
| 78 | S621-014001 | O-RING | |
| 79 | X420-042079 | HOSE ASSY-ORFS 0X90 | |
| 80 | S621-011001 | O-RING | |
| 81 | S621-012001 | O-RING | |
| 85 | 31E3-3187 | ACCUMULATOR |
