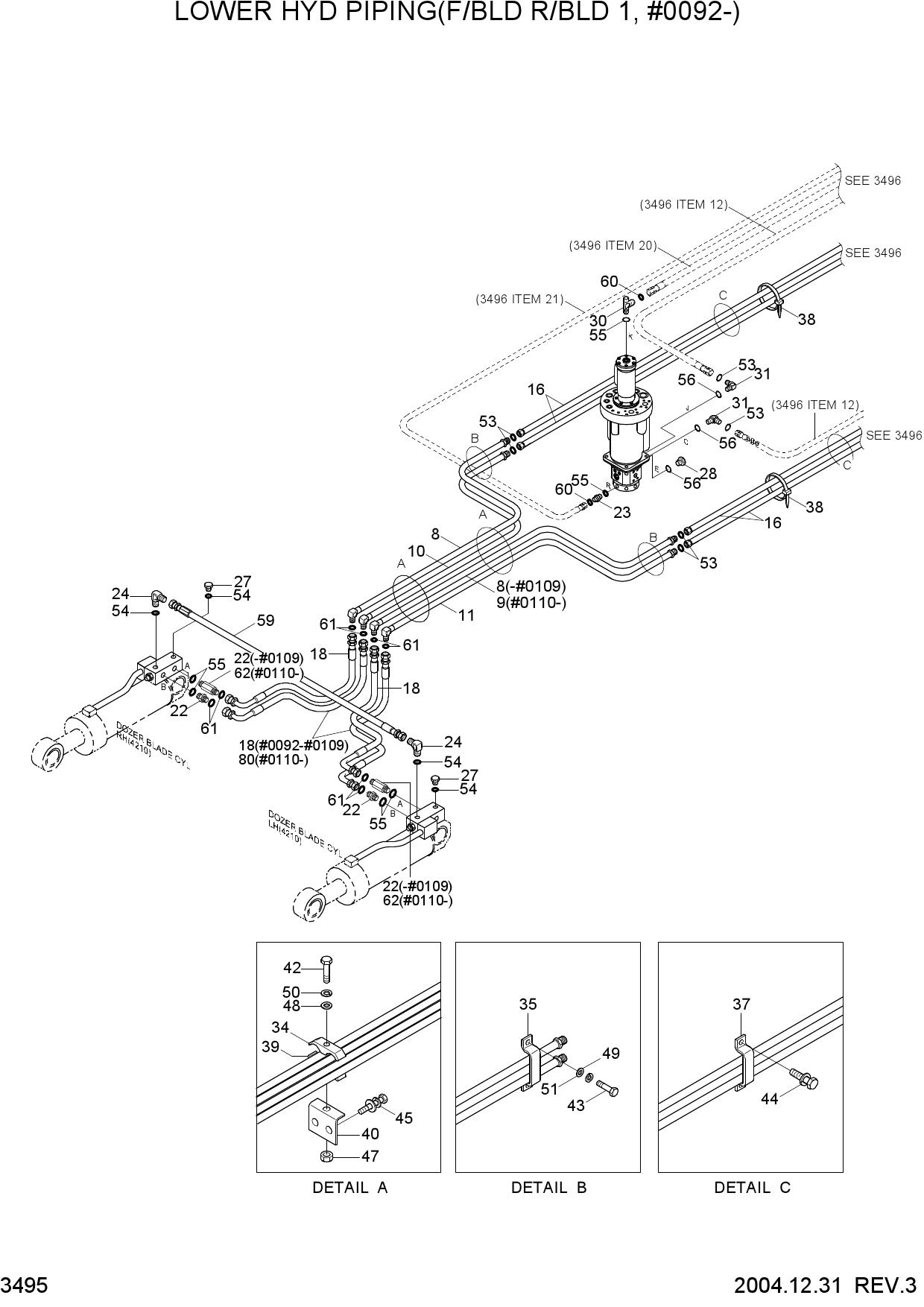

Запчасти для колесных экскаваторов Hyundai R170W-7 LOWER HYD PIPING 1(F/BLD R/BLD, #0092-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | 31N5-70402 | PIPE ASSY | |
| 8 | 31N5-70331 | PIPE ASSY | |
| 9 | 31N5-70341 | PIPE ASSY | |
| 10 | 31N5-70412 | PIPE ASSY | |
| 10 | 31N5-70351 | PIPE ASSY | |
| 11 | 31N5-70440 | PIPE ASSY | |
| 11 | 31N5-70361 | PIPE ASSY | |
| 16 | P913-087030 | HOSE ASSY-ORFS 0X0 | |
| 18 | 31N5-70450 | HOSE ASSY | |
| 18 | P933-067013 | HOSE ASSY-ORFS 0X90 | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 23 | X500-110013 | CONNECTOR-ORFS | |
| 24 | X520-110001 | ELBOW-90,ORFS | |
| 27 | P220-110102 | PLUG-HEX | |
| 28 | P220-110104 | PLUG-HEX | |
| 30 | X810-065152 | TEE-B/TYPE,ORFS | |
| 31 | X500-110003 | CONNECTOR-ORFS | |
| 34 | 31E4-3030 | CLAMP-PIPE | |
| 35 | 31EE-50180 | CLAMP ASSY | |
| 37 | 31E4-3146 | STRAP | |
| 38 | S552-102370 | CLAMP-BAND | |
| 39 | 31EK-70490 | SPACER-CLAMP | |
| 40 | 31E4-31440 | BRACKET-PIPE | |
| 42 | S017-101002 | BOLT-HEX | |
| 43 | S017-160602 | BOLT-HEX | |
| 44 | S035-081512 | BOLT-W/WASHER | |
| 45 | S037-102522 | BOLT-W/WASHER | |
| 47 | S205-101006 | NUT-HEX | |
| 48 | S403-101006 | WASHER-PLAIN | |
| 49 | S403-162006 | WASHER-PLAIN | |
| 50 | S411-100002 | WASHER-SPRING | |
| 51 | S411-160002 | WASHER-SPRING | |
| 53 | S621-014001 | O-RING | |
| 54 | S631-011004 | O-RING | |
| 55 | S631-014004 | O-RING | |
| 56 | S631-018004 | O-RING | |
| 59 | P913-047014 | HOSE ASSY-ORFS 0X0 | |
| 60 | S621-011001 | O-RING | |
| 61 | S621-012001 | O-RING | |
| 62 | X511-106524 | CONNECTOR-LONG,ORFS | |
| 80 | P933-067015 | HOSE ASSY-ORFS 0X90 |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R170W-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
