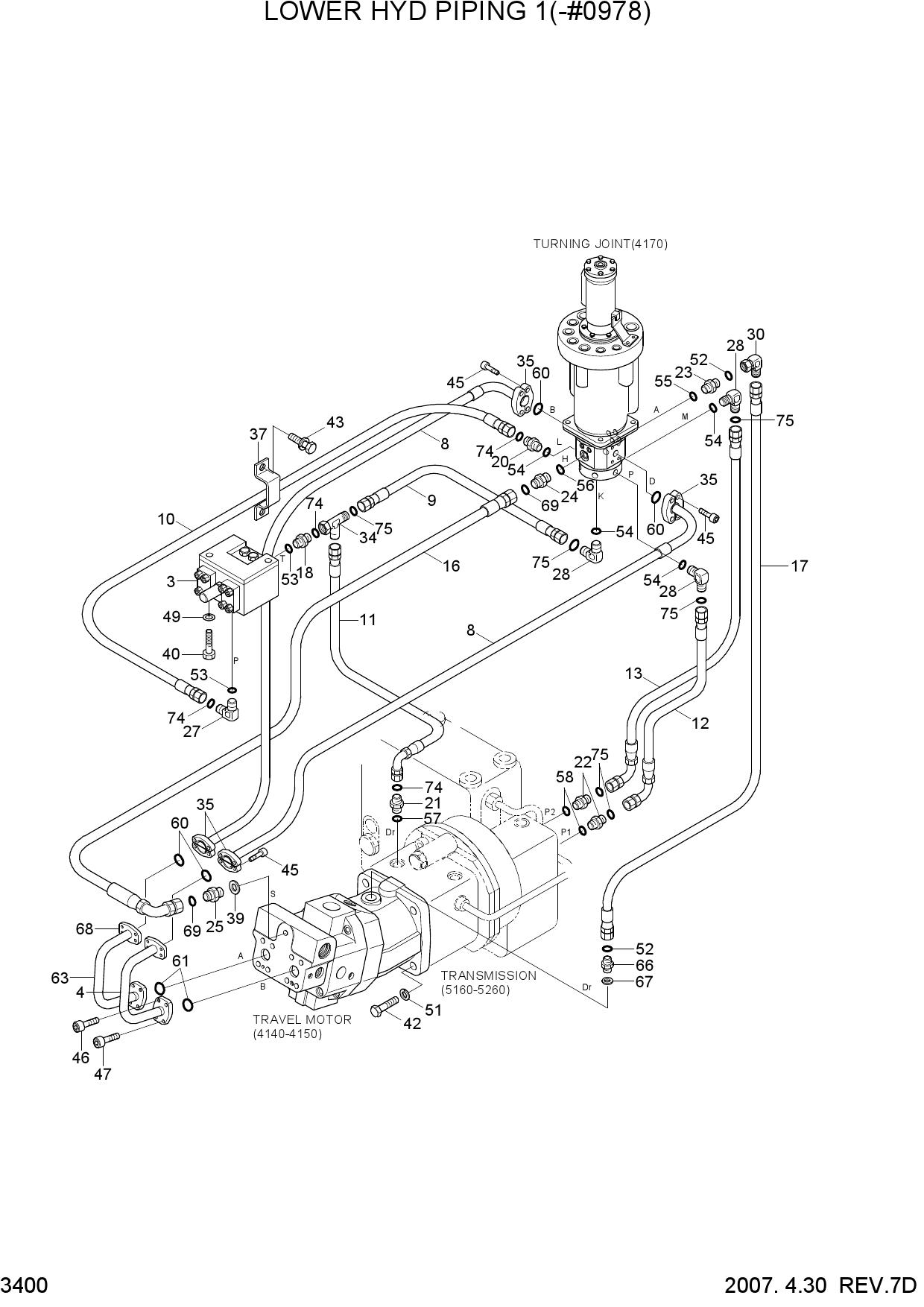

Запчасти для колесных экскаваторов Hyundai R170W-7 LOWER HYD PIPING 1(-#0978)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 81E3-0014 | VALVE-LOCKING | |
| 4 | 31N5-41010 | PIPE ASSY | |
| 8 | P703-127317 | HOSE ASSY-FLG 0X90 | |
| 9 | P603-062019 | HOSE ASSY-THD | |
| 9 | P913-062019 | HOSE ASSY-ORFS 0X0 | |
| 10 | P613-042026 | HOSE ASSY-THD 0X45 | |
| 10 | P923-042026 | HOSE ASSY-ORFS 0X45 | |
| 11 | P623-042013 | HOSE ASSY-THD 0X90 | |
| 11 | P933-042013 | HOSE ASSY-ORFS 0X90 | |
| 12 | P623-062011 | HOSE ASSY-THD 0X90 | |
| 12 | P923-062011 | HOSE ASSY-ORFS 0X45 | |
| 13 | P623-062013 | HOSE ASSY-THD 0X90 | |
| 13 | P923-062013 | HOSE ASSY-ORFS 0X45 | |
| 16 | P933-122020 | HOSE ASSY-ORFS 0X90 | |
| 17 | P933-082026 | HOSE ASSY-ORFS 0X90 | |
| 18 | P010-110002 | CONNECTOR | |
| 18 | X500-110001 | CONNECTOR-ORFS | |
| 20 | P010-110013 | CONNECTOR | |
| 20 | X500-110013 | CONNECTOR-ORFS | |
| 21 | P010-210002 | CONNECTOR | |
| 21 | X500-210002 | CONNECTOR-ORFS | |
| 22 | P010-210005 | CONNECTOR | |
| 22 | X500-210005 | CONNECTOR-ORFS | |
| 23 | X500-110003 | CONNECTOR-ORFS | |
| 24 | X500-110004 | CONNECTOR-ORFS | |
| 25 | X500-220010 | CONNECTOR-ORFS | |
| 27 | P020-110001 | ELBOW-90 | |
| 27 | X520-110001 | ELBOW-90,ORFS | |
| 28 | P020-110002 | ELBOW-90 | |
| 28 | X520-110002 | ELBOW-90,ORFS | |
| 30 | X850-535300 | ELBOW-90,SWIVEL,ORFS | |
| 34 | 31M6-51160 | TEE-R/TYPE,S/NUT | |
| 34 | X840-515152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 35 | P173-120102 | FLANGE-HYD,SPLIT | |
| 37 | 31EK-70400 | CLAMP-HOSE | |
| 39 | P392-270000 | WASHER-COPPER | |
| 40 | S015-080802 | BOLT-HEX | |
| 42 | S017-160502 | BOLT-HEX | |
| 43 | S035-081512 | BOLT-W/WASHER | |
| 45 | S109-100306 | BOLT-SOCKET | |
| 46 | S109-120406 | BOLT-SOCKET | |
| 47 | S109-121056 | BOLT-SOCKET | |
| 49 | S411-080006 | WASHER-SPRING | |
| 51 | S411-160006 | WASHER-SPRING | |
| 52 | S621-014001 | O-RING | |
| 53 | S631-011004 | O-RING | |
| 54 | S631-014004 | O-RING | |
| 55 | S631-018004 | O-RING | |
| 56 | S631-024004 | O-RING | |
| 57 | Y161-014001 | O-RING | |
| 58 | Y161-016001 | O-RING | |
| 60 | Y171-019004 | O-RING | |
| 61 | Y171-024004 | O-RING | |
| 63 | 31N5-41020 | PIPE ASSY | |
| 66 | X500-220007 | CONNECTOR-ORFS | |
| 67 | P392-180000 | WASHER-COPPER | |
| 68 | P174-160115 | FLANGE-SPLIT | |
| 69 | S621-018001 | O-RING | |
| 74 | S621-011001 | O-RING | |
| 75 | S621-012001 | O-RING |
