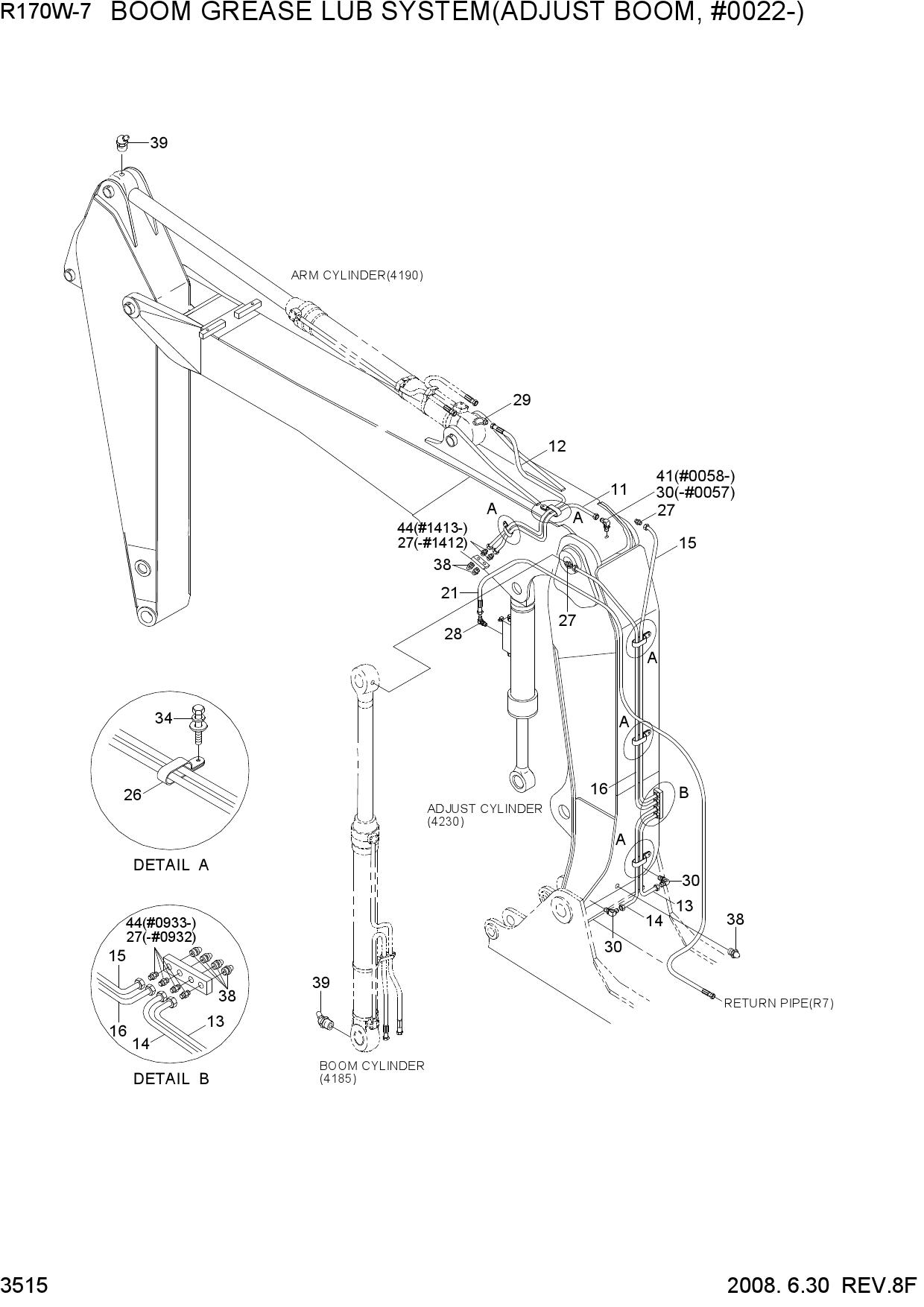

Запчасти для колесных экскаваторов Hyundai R170W-7 BOOM GREASE LUB SYSTEM(ADJ/BOOM, #0022-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 11 | P840-042024 | HOSE ASSY-SYN THD | |
| 12 | P840-042027 | HOSE ASSY-SYN THD | |
| 12 | P840-042029 | HOSE ASSY-SYN THD | |
| 13 | P840-042015 | HOSE ASSY-SYN THD | |
| 13 | P840-042016 | HOSE ASSY-SYN THD | |
| 14 | P840-042016 | HOSE ASSY-SYN THD | |
| 14 | P840-042017 | HOSE ASSY-SYN THD | |
| 15 | P840-042035 | HOSE ASSY-SYN THD | |
| 16 | P840-042036 | HOSE ASSY-SYN THD | |
| 21 | P400-042126 | HOSE ASSY-COMPACT | |
| 21 | P910-042126 | HOSE ASSY-ORFS 0X0 | |
| 26 | 31N8-50380 | CLAMP-HOSE | |
| 26 | 31Q6-50380 | CLAMP-HOSE | |
| 27 | P010-430011 | CONNECTOR | |
| 27 | P010-430011 | CONNECTOR | |
| 28 | 31E5-50350 | ELBOW-90 | |
| 28 | 31N6-90550 | ELBOW-90,ORFS | |
| 29 | E231-0207 | ELBOW-45 | |
| 30 | 31NB-50280 | ELBOW-90 | |
| 30 | 31NB-50280 | ELBOW-90 | |
| 34 | S035-062022 | BOLT-W/WASHER | |
| 34 | S035-082026 | BOLT-W/WASHER | |
| 38 | S651-810002 | NIPPLE-GREASE | |
| 39 | S653-810002 | NIPPLE-GREASE | |
| 41 | 61E7-0059 | ELBOW-90 | |
| 44 | 31W5-70060 | CONNECTOR |
