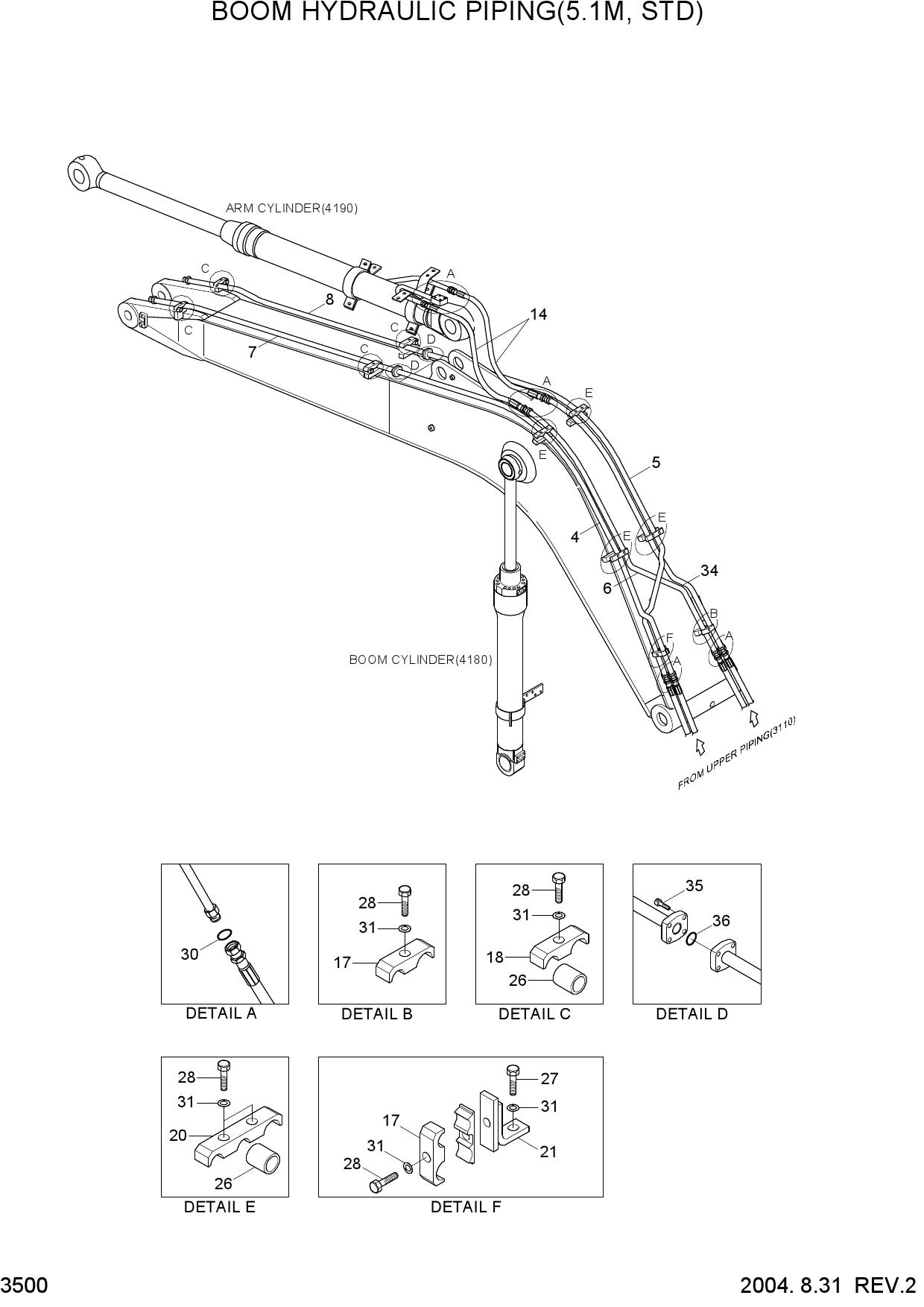

Запчасти для колесных экскаваторов Hyundai R170W-7 BOOM HYD PIPING(5.1M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N5-50171 | PIPE ASSY | |
| 4 | 31N5-50172 | PIPE ASSY | |
| 5 | 31N5-50181 | PIPE ASSY | |
| 5 | 31N5-50182 | PIPE ASSY | |
| 6 | 31N5-50021 | PIPE ASSY | |
| 6 | 31N5-50022 | PIPE ASSY | |
| 7 | 31N5-50031 | PIPE ASSY | |
| 8 | 31N5-50041 | PIPE ASSY | |
| 8 | 31N5-50042 | PIPE ASSY | |
| 14 | P910-127018 | HOSE ASSY-ORFS 0X0 | |
| 14 | P910-127027 | HOSE ASSY-ORFS 0X0 | |
| 17 | 31N4-12200 | CLAMP-PIPE | |
| 18 | 31N5-50100 | CLAMP-PIPE | |
| 20 | 31N5-50140 | CLAMP-PIPE | |
| 21 | 31N5-50190 | BRACKET ASSY | |
| 26 | 31N5-50230 | SPACER-PIPE | |
| 27 | S017-160402 | BOLT-HEX | |
| 28 | S017-160702 | BOLT-HEX | |
| 30 | S621-018001 | O-RING | |
| 31 | S411-160002 | WASHER-SPRING | |
| 34 | 31N5-50260 | PIPE ASSY | |
| 34 | 31N5-50261 | PIPE ASSY | |
| 35 | S109-100506 | BOLT-SOCKET | |
| 36 | Y171-019004 | O-RING |
