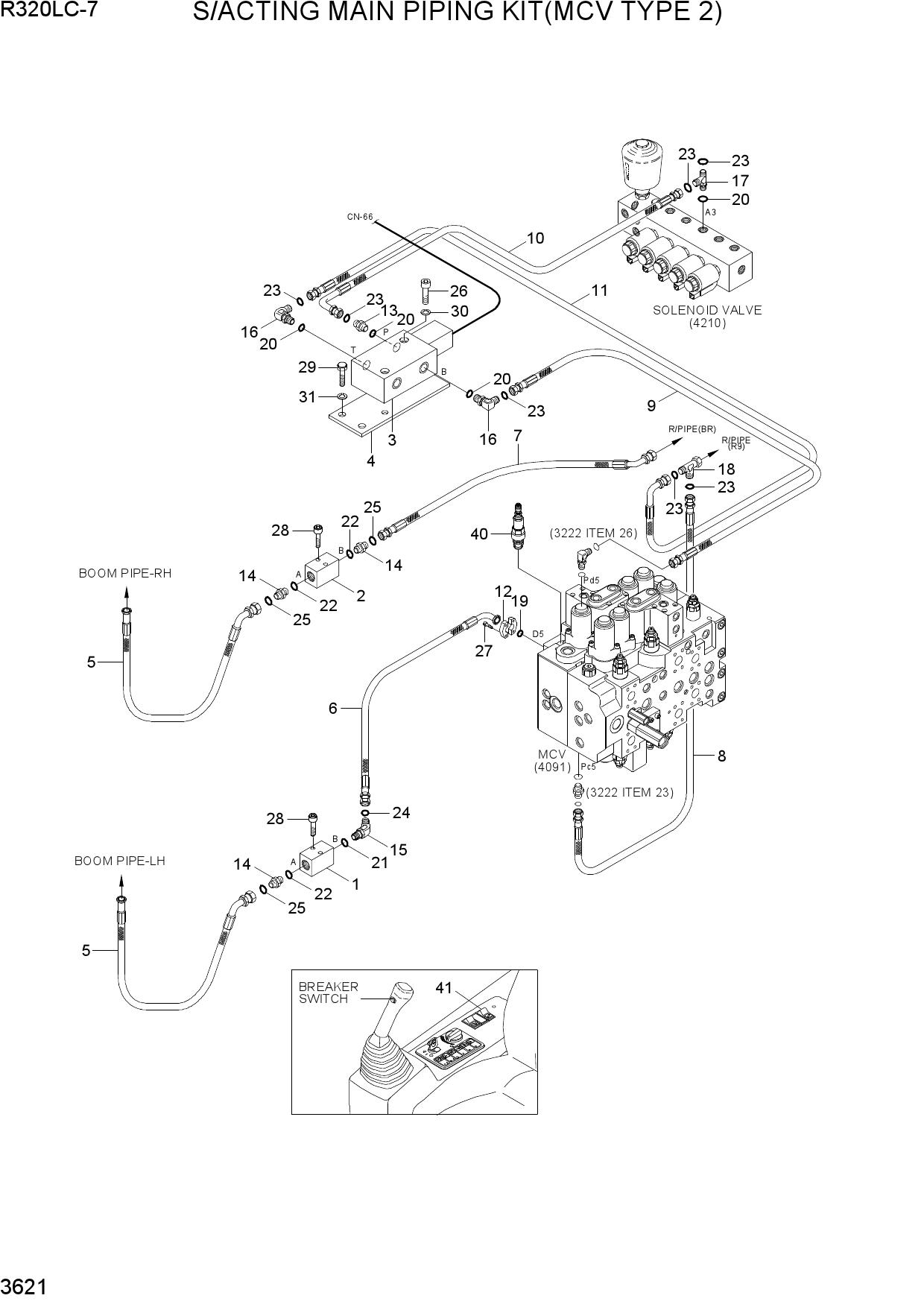

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 S/ACTING MAIN PIPING KIT(MCV TYPE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-1 | 33N9-90310 | S/ACT MAIN PIPING KIT | |
| 1 | 31EM-91540 | JOINT ASSY-HOSE | |
| 2 | 31EM-91550 | JOINT ASSY-HOSE | |
| 3 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 3-1 | XKBN-00192 | COIL-BREAKER SOL | |
| 4 | 31N6-91250 | BRACKET-SOL VLV | |
| 5 | P973-207334 | HOSE ASSY-ORFS 0X90 | |
| 6 | P983-166325 | HOSE ASSY-ORFS 0X90 | |
| 7 | P923-203027 | HOSE ASSY-ORFS 0X45 | |
| 8 | P910-042024 | HOSE ASSY-ORFS 0X0 | |
| 9 | P910-042066 | HOSE ASSY-ORFS 0X0 | |
| 10 | P930-042023 | HOSE ASSY-ORFS 0X90 | |
| 11 | P930-042056 | HOSE ASSY-ORFS 0X90 | |
| 12 | P173-160104 | FLANGE-HYD,SPLIT | |
| 13 | X500-110001 | CONNECTOR-ORFS | |
| 14 | X500-110006 | CONNECTOR-ORFS | |
| 15 | X530-110005 | ELBOW-45,ORFS | |
| 16 | X520-110001 | ELBOW-90,ORFS | |
| 17 | X820-045151 | TEE-R/TYPE,ORFS | |
| 18 | X840-515151 | TEE-R/TYPE,ORFS | |
| 19 | Y171-024004 | O-RING | |
| 20 | S631-011004 | O-RING | |
| 21 | S631-029004 | O-RING | |
| 22 | S631-038004 | O-RING | |
| 23 | S621-011001 | O-RING | |
| 24 | S621-021001 | O-RING | |
| 25 | S621-025001 | O-RING | |
| 26 | S109-080456 | BOLT-SOCKET | |
| 27 | S109-100306 | BOLT-SOCKET | |
| 28 | S109-120656 | BOLT-SOCKET | |
| 29 | S017-100256 | BOLT-HEX | |
| 30 | S411-080006 | WASHER-SPRING | |
| 31 | S411-100006 | WASHER-SPRING | |
| 40 | XKBF-01455 | RELIEF VALVE-OVERLOAD | |
| 41 | 21E6-30540 | SWITCH-BREAKER |
