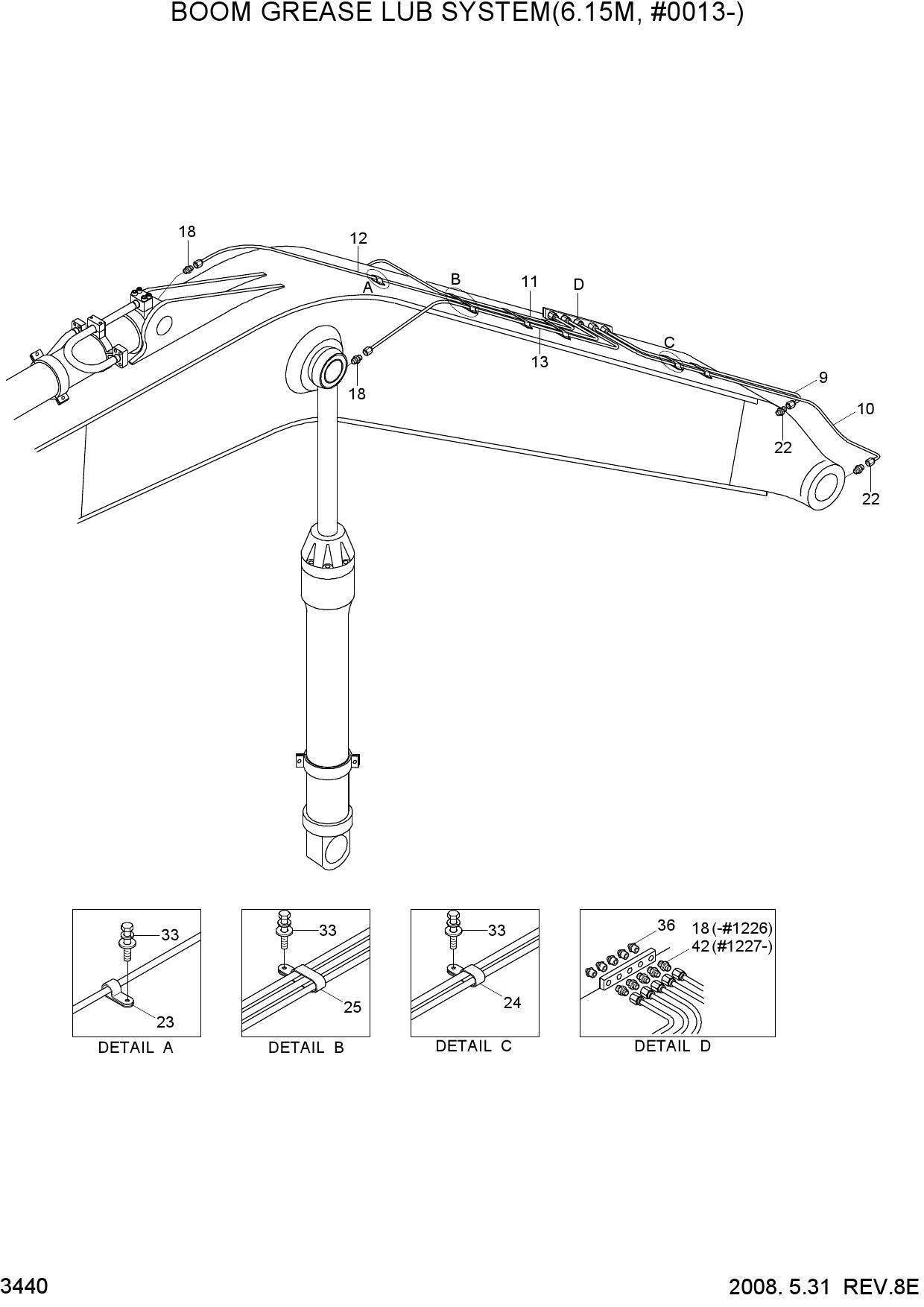

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 BOOM GREASE LUB SYSTEM(6.15M,#0013-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | P840-042024 | HOSE ASSY-SYN THD | |
| 10 | P840-042025 | HOSE ASSY-SYN THD | |
| 11 | P840-042049 | HOSE ASSY-SYN THD | |
| 12 | P840-042059 | HOSE ASSY-SYN THD | |
| 13 | P840-042051 | HOSE ASSY-SYN THD | |
| 18 | P010-430011 | CONNECTOR | |
| 18 | P010-430011 | CONNECTOR | |
| 22 | 31NB-50280 | ELBOW-90 | |
| 23 | 31N8-50370 | CLAMP-HOSE | |
| 24 | 31N8-50380 | CLAMP-HOSE | |
| 25 | 31N8-50390 | CLAMP-HOSE | |
| 33 | S035-062022 | BOLT-W/WASHER | |
| 36 | S651-810002 | NIPPLE-GREASE | |
| 42 | 31W5-70060 | CONNECTOR |
