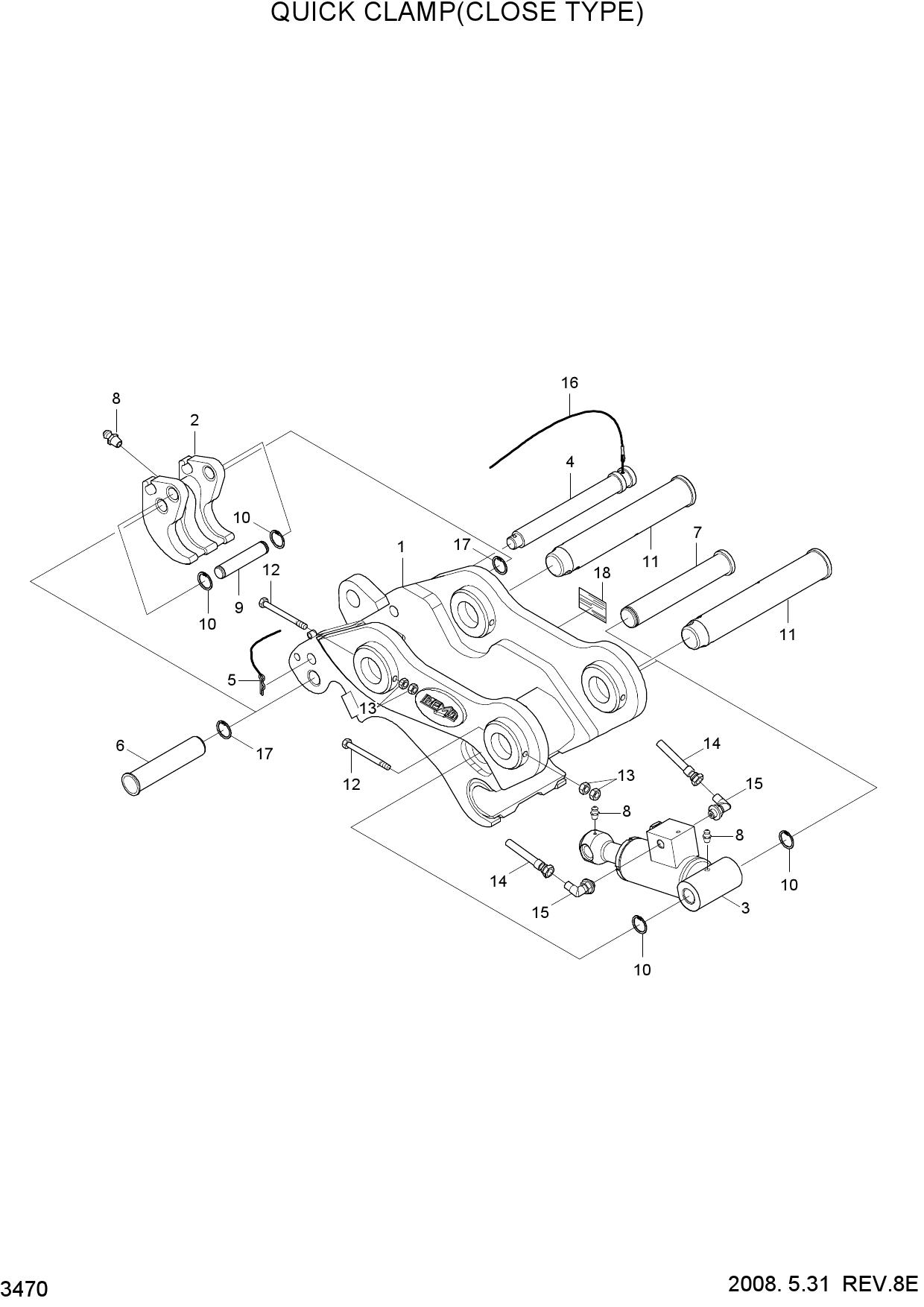

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 QUICK CLAMP(CLOSE TYPE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31NA-96860 | QUICK CLAMP ASSY | |
| 1 | XKBN-00241 | BODY | |
| 2 | XKBN-00237 | HITCH ASSY | |
| 3 | XKBN-00238 | CYLINDER ASSY | |
| 4 | XKBN-00229 | PIN-SAFETY | |
| 5 | XKBN-00163 | PIN-SNAP | |
| 6 | XKBN-00230 | PIN-HITCH | |
| 7 | XKBN-00231 | PIN-FRAME | |
| 8 | XKBN-00009 | NIPPLE-GREASE | |
| 9 | XKBN-00232 | PIN-CYLINDER | |
| 10 | XKBN-00167 | RING-SNAP | |
| 11 | XKBN-00233 | PIN-BRACKET | |
| 12 | XKBN-00234 | BOLT-HEX | |
| 13 | XKBN-00080 | NUT-HEX | |
| 14 | XKBN-00112 | HOSE-PROTECTOR | |
| 15 | XKBN-00016 | ELBOW-90 | |
| 16 | XKBN-00235 | WIRE ASSY | |
| 17 | XKBN-00218 | RING-SNAP | |
| 18 | XKBN-00240 | PLATE-ID |
