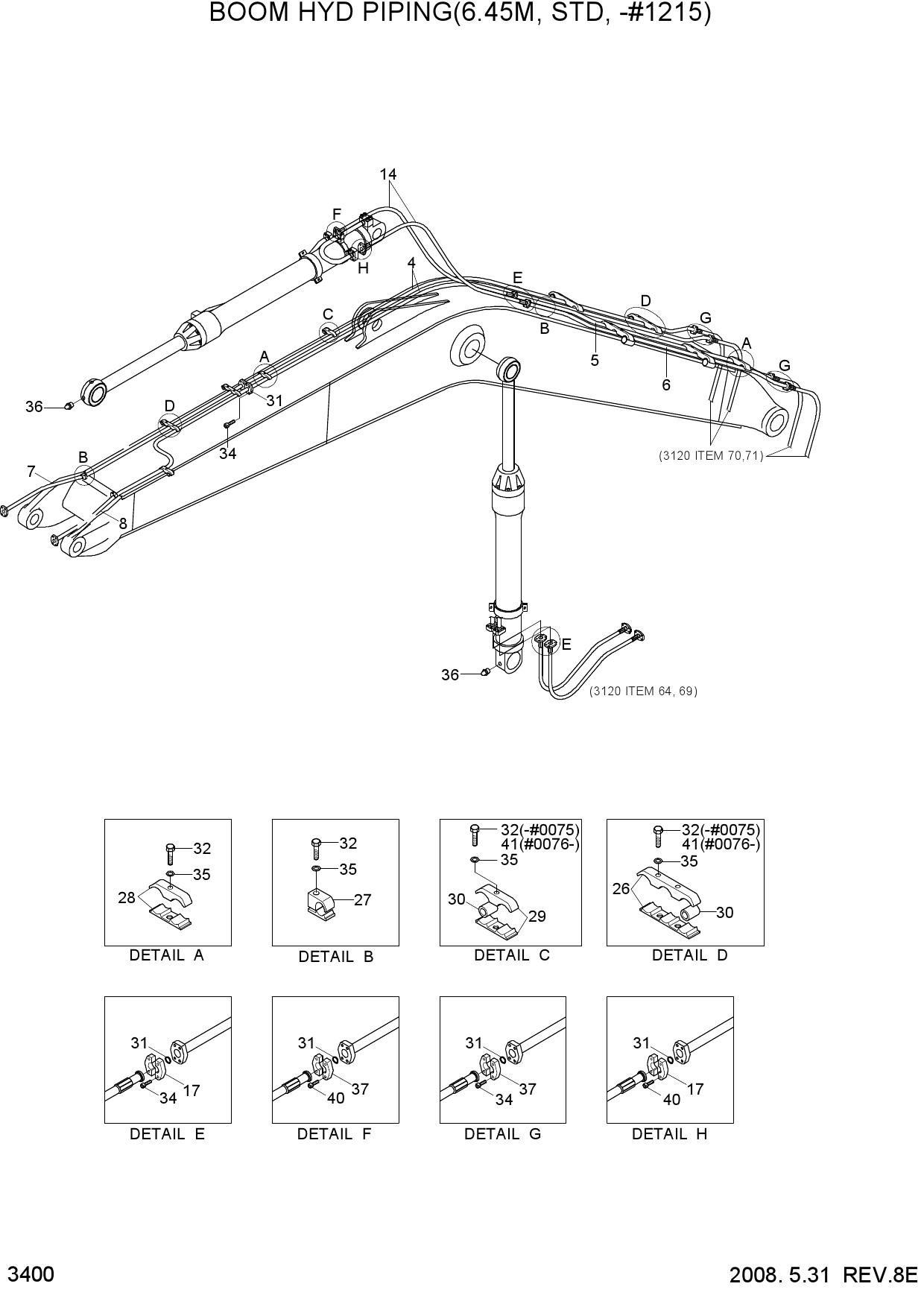

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 BOOM HYD PIPING(6.45M, STD, -#1215)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N9-50220 | PIPE ASSY | |
| 5 | 31N9-50240 | PIPE ASSY | |
| 6 | 31N9-50230 | PIPE ASSY | |
| 7 | 31N9-50211 | PIPE ASSY | |
| 8 | 31N9-50191 | PIPE ASSY | |
| 14 | P680-167322 | HOSE ASSY-FLG | |
| 17 | P173-160104 | FLANGE-HYD,SPLIT | |
| 26 | 31N6-50340 | CLAMP ASSY | |
| 27 | 31N6-50300 | CLAMP ASSY | |
| 28 | 31N6-50310 | CLAMP ASSY | |
| 29 | 31N6-50320 | CLAMP ASSY | |
| 30 | 31N5-50240 | SPACER-PIPE | |
| 31 | Y171-024004 | O-RING | |
| 32 | S017-160752 | BOLT-HEX | |
| 32 | S017-160752 | BOLT-HEX | |
| 34 | S109-100356 | BOLT-SOCKET | |
| 35 | S411-160002 | WASHER-SPRING | |
| 36 | S651-810002 | NIPPLE-GREASE | |
| 37 | 31E9-01320 | FLANGE-SPLIT | |
| 40 | S109-100406 | BOLT-SOCKET | |
| 41 | S017-16080A | BOLT-HEX(COATING) |
