- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYD PIPING(BASE, TYPE 2, #2403-)
- UPPER HYD PIPING(TRAVEL, TYPE 1)
- UPPER HYD PIPING(TRAVEL, TYPE 2, #2403-)
- UPPER HYD PIPING(ATTACH, TYPE 1)
- UPPER HYD PIPING(ATTACH, TYPE 2, #2403-)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIP(CONTROL 1, TYPE 2, #2403-)
- PILOT HYD PIP(CONTROL 2, TYPE 2, #2403-)
- PILOT HYD PIPING(BASE 1, S/MOTOR TYPE 1)
- PILOT HYD PIPING(BASE 2, S/MOTOR TYPE 1)
- PILOT HYD PIPING(BASE 3, S/MOTOR TYPE 1)
- PILOT HYD PIPING(BASE 1, S/MOTOR TYPE 2)
- PILOT HYD PIPING(BASE 2, S/MOTOR TYPE 2)
- PILOT HYD PIPING(BASE 3, S/MOTOR TYPE 2)
- TRAVEL HYDRAULIC PIPING(-#0455)
- TRAVEL HYDRAULIC PIPING(#0456-)
- TRAVEL HYD PIPING(HIGH WALKER,-#0455)
- TRAVEL HYD PIPING(HIGH WALKER,0456-)
- BOOM HYD PIPING(6.45M, STD, -#1215)
- BOOM HYD PIPING(6.45M, STD, #1216-)
- BOOM HYDRAULIC PIPING(6.15M, #2403-)
- BOOM GREASE LUB SYS(6.45M, STD, -#1215)
- BOOM GREASE LUB SYS(6.45M, STD, #1216-)
- BOOM GREASE LUB SYS(6.15M, #2403-)
- BOOM SAFETY LOCK SYSTEM
- BOOM HYDRAULIC PIPING(6.15M,#0013-)
- BOOM GREASE LUB SYSTEM(6.15M,#0013-)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(2.2M, #0013-)
- ARM HYDRAULIC PIPING(2.5M, #0013-)
- ARM HYDRAULIC PIPING(4.05M, #0013-)
- ARM SAFETY LOCK SYSTEM(-#0818)
- ARM SAFETY LOCK SYSTEM(#0819-)
- S/ACTING MAIN PIPING KIT(MCV TYPE 1)
- S/ACTING MAIN PIPING KIT(MCV TYPE 2)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT(MCV TYPE1)
- DOUBLE ACTING MAIN PIPING KIT(MCV TYPE2)
- SINGLE PEDAL (DOUBLE ACTING)

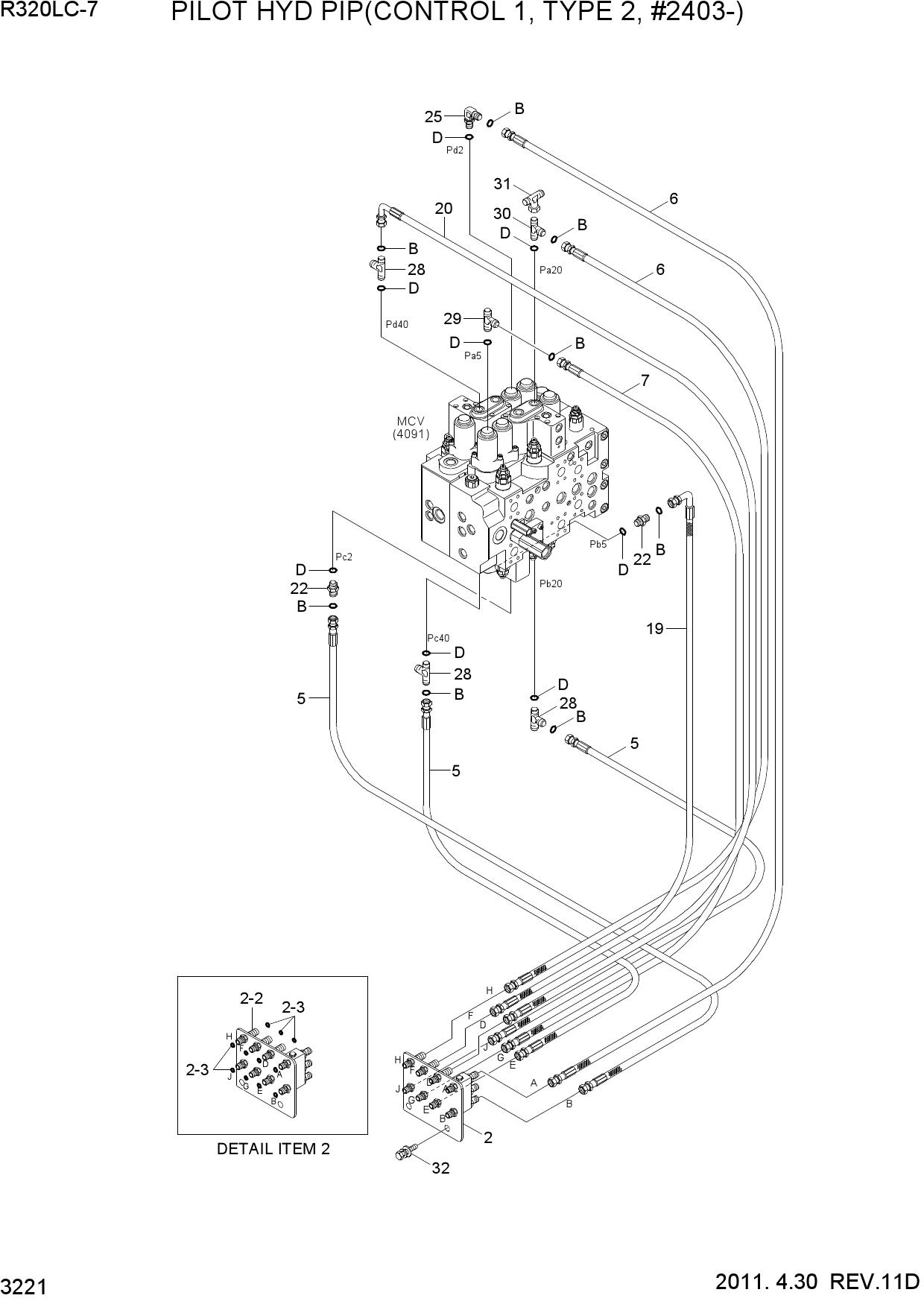

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 PILOT HYD PIP(CONTROL 1, TYPE 2, #2403-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N8-24010 | TERMINAL ASSY-C | |
| 2-2 | 31N8-24030 | SHUTTLE-5 PORT | |
| 2-3 | X540-120002 | CONNECTOR-ORFS | |
| 5 | X400-062029 | HOSE ASSY-SYNF,ORFS | |
| 6 | X400-062034 | HOSE ASSY-SYNF,ORFS | |
| 7 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 19 | X420-062030 | HOSE ASSY-ORFS 0X90 | |
| 20 | X420-062036 | HOSE ASSY-ORFS 0X90 | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 25 | X520-110002 | ELBOW-90,ORFS | |
| 28 | X820-065152 | TEE-R/TYPE,ORFS | |
| 29 | X820-065251 | TEE-R/TYPE,ORFS | |
| 30 | X820-065252 | TEE-R/TYPE,ORFS | |
| 31 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 32 | S037-103026 | BOLT-W/WASHER | |
| B | S621-012001 | O-RING | |
| D | S631-014004 | O-RING |
