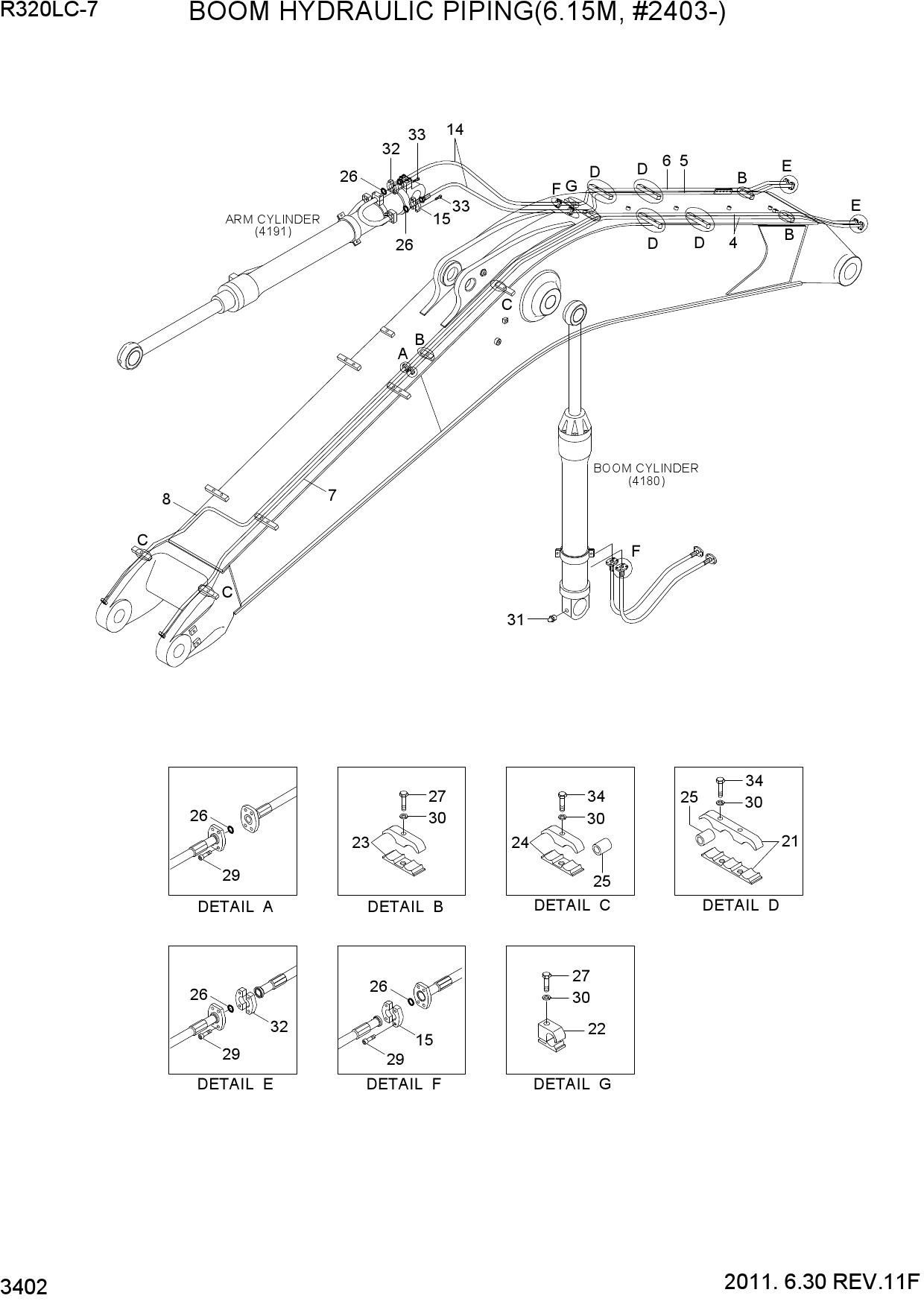

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 BOOM HYDRAULIC PIPING(6.15M, #2403-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N9-53310 | PIPE ASSY | |
| 5 | 31N9-53320 | PIPE ASSY | |
| 6 | 31N9-53330 | PIPE ASSY | |
| 7 | 31N9-53340 | PIPE ASSY | |
| 8 | 31N9-53350 | PIPE ASSY | |
| 14 | P680-167322 | HOSE ASSY-FLG | |
| 15 | P173-160104 | FLANGE-HYD,SPLIT | |
| 21 | 31N6-50340 | CLAMP ASSY | |
| 22 | 31N6-50300 | CLAMP ASSY | |
| 23 | 31N6-50310 | CLAMP ASSY | |
| 24 | 31N6-50320 | CLAMP ASSY | |
| 25 | 31N5-50240 | SPACER-PIPE | |
| 26 | Y171-024004 | O-RING | |
| 27 | S017-16075D | BOLT-HEX | |
| 29 | S109-100356 | BOLT-SOCKET | |
| 30 | S411-160006 | WASHER-SPRING | |
| 31 | S651-810002 | NIPPLE-GREASE | |
| 32 | 31E9-01320 | FLANGE-SPLIT | |
| 33 | S109-100406 | BOLT-SOCKET | |
| 34 | S017-16080D | BOLT-HEX |
