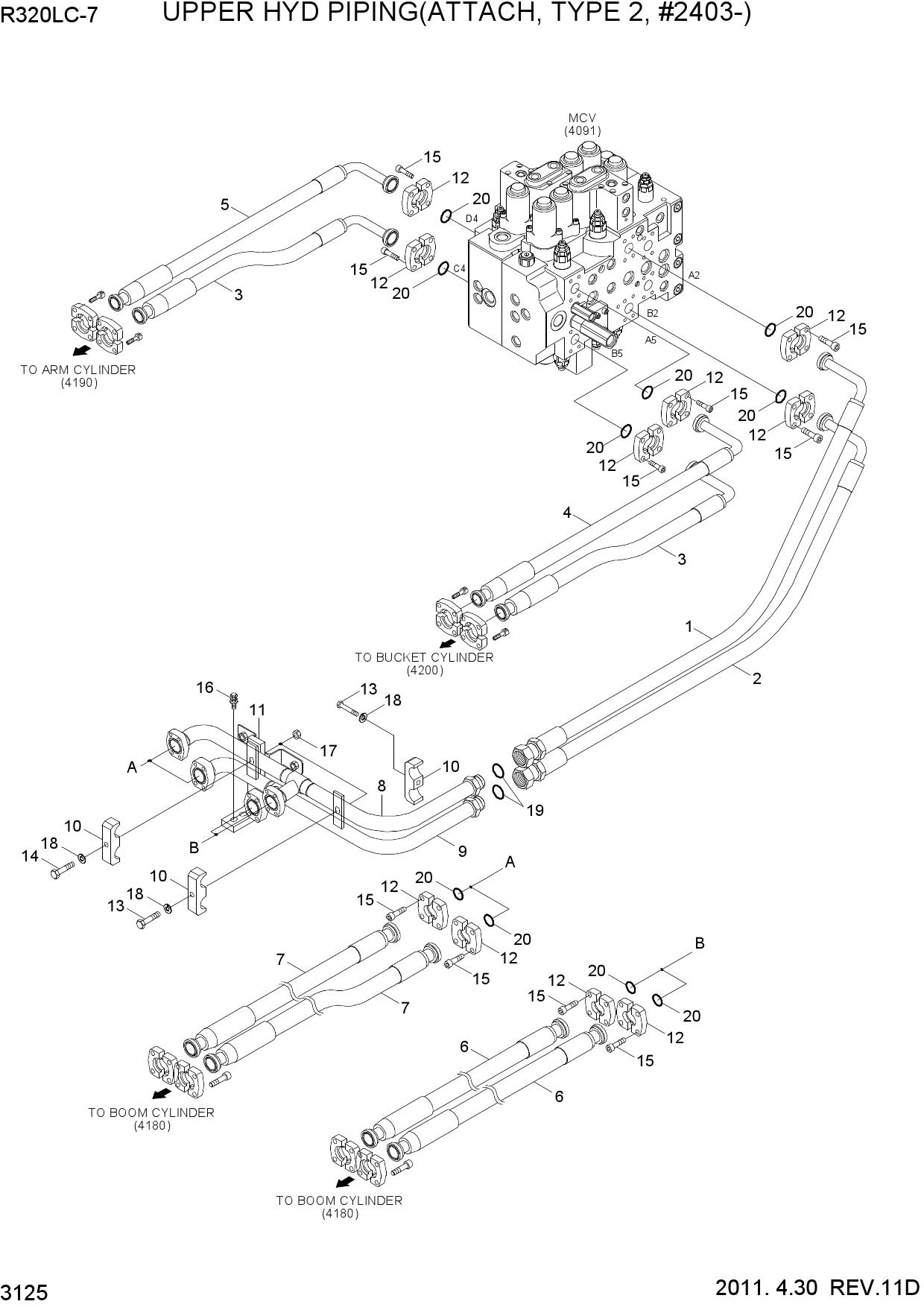

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 UPPER HYD PIPING(ATTACH, TYPE 2, #2403-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N9-13210 | HOSE ASSY-FLG,0X90 | |
| 2 | 31N9-13220 | HOSE ASSY | |
| 3 | 31Q8-11350 | HOSE ASSY | |
| 4 | 31Q8-11360 | HOSE ASSY | |
| 5 | 31Q8-11370 | HOSE ASSY | |
| 6 | P683-167319 | HOSE ASSY-FLG 0X0 | |
| 7 | P683-167318 | HOSE ASSY-FLG 0X0 | |
| 8 | 31N9-13270 | PIPE WA | |
| 9 | 31N9-13280 | PIPE WA | |
| 10 | 31EM-12170 | CLAMP-PIPE | |
| 11 | 31N8-12510 | BRACKET | |
| 12 | P173-160104 | FLANGE-HYD,SPLIT | |
| 13 | S017-100706 | BOLT-HEX | |
| 14 | S017-100806 | BOLT-HEX | |
| 15 | S109-100306 | BOLT-SOCKET | |
| 16 | S037-103026 | BOLT-W/WASHER | |
| 17 | S205-101006 | NUT-HEX | |
| 18 | S411-100006 | WASHER-SPRING | |
| 19 | S621-021001 | O-RING | |
| 20 | Y171-024004 | O-RING |
