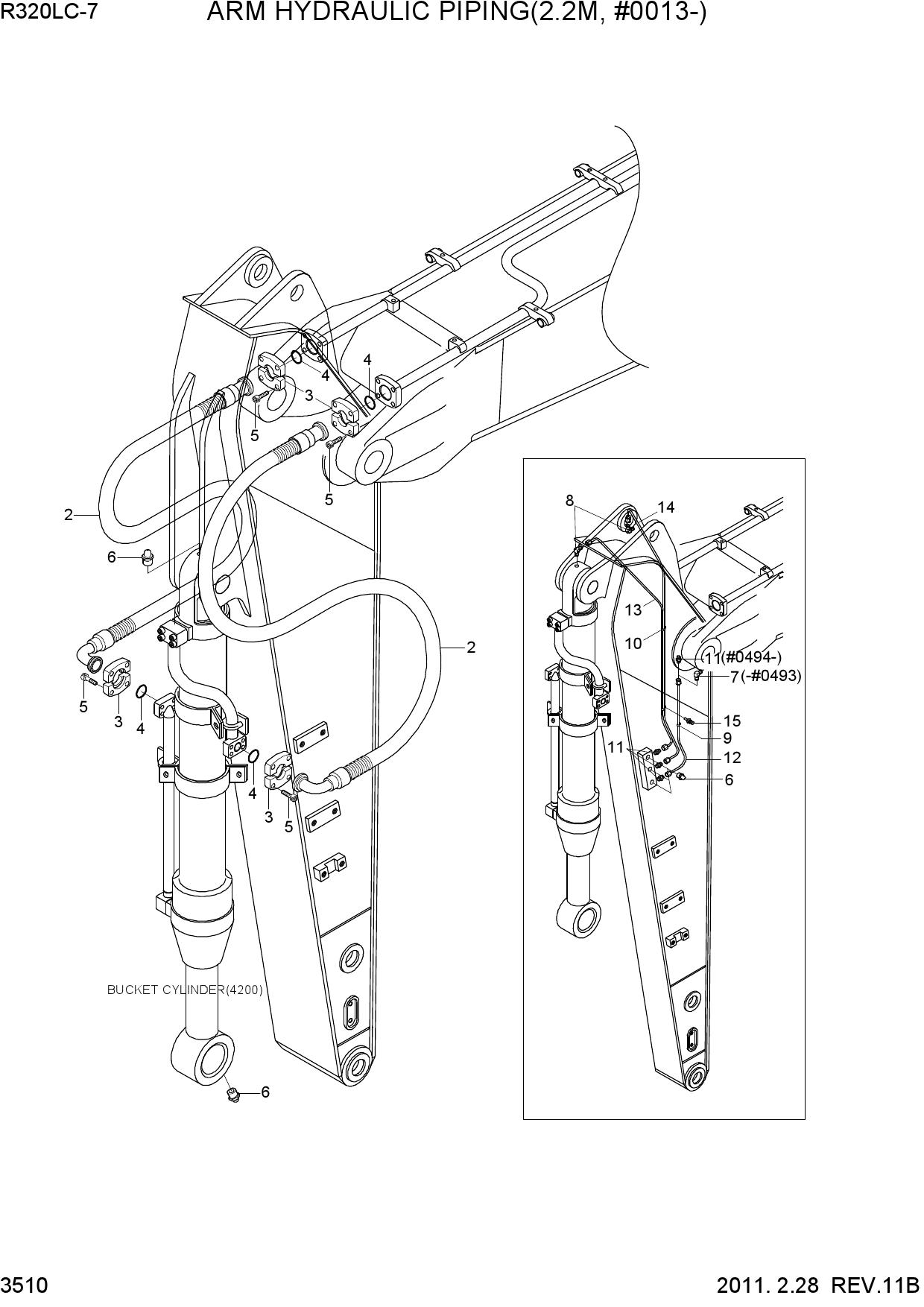

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 ARM HYDRAULIC PIPING(2.2M, #0013-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N9-60030 | HOSE ASSY-FLG | |
| 2 | 31N9-60031 | HOSE ASSY-FLG | |
| 3 | P173-160104 | FLANGE-HYD,SPLIT | |
| 4 | Y171-024004 | O-RING | |
| 5 | S109-100356 | BOLT-SOCKET | |
| 6 | S651-810002 | NIPPLE-GREASE | |
| 7 | 61E7-0059 | ELBOW-90 | |
| 8 | 31NB-50280 | ELBOW-90 | |
| 9 | 31N8-50370 | CLAMP-HOSE | |
| 10 | 31N8-50380 | CLAMP-HOSE | |
| 11 | P010-430011 | CONNECTOR | |
| 11 | P010-430011 | CONNECTOR | |
| 12 | P840-042010 | HOSE ASSY-SYN THD | |
| 12 | P860-042010 | HOSE ASSY-SYN 0X90 | |
| 12 | P860-042011 | HOSE ASSY-SYN 0X90 | |
| 12 | P860-042013 | HOSE ASSY-SYN 0X90 | |
| 13 | P840-042037 | HOSE ASSY-SYN THD | |
| 13 | P840-042041 | HOSE ASSY-SYN THD | |
| 13 | P840-042041 | HOSE ASSY-SYN THD | |
| 14 | P840-042039 | HOSE ASSY-SYN THD | |
| 14 | P840-042040 | HOSE ASSY-SYN THD | |
| 15 | S035-062022 | BOLT-W/WASHER |
