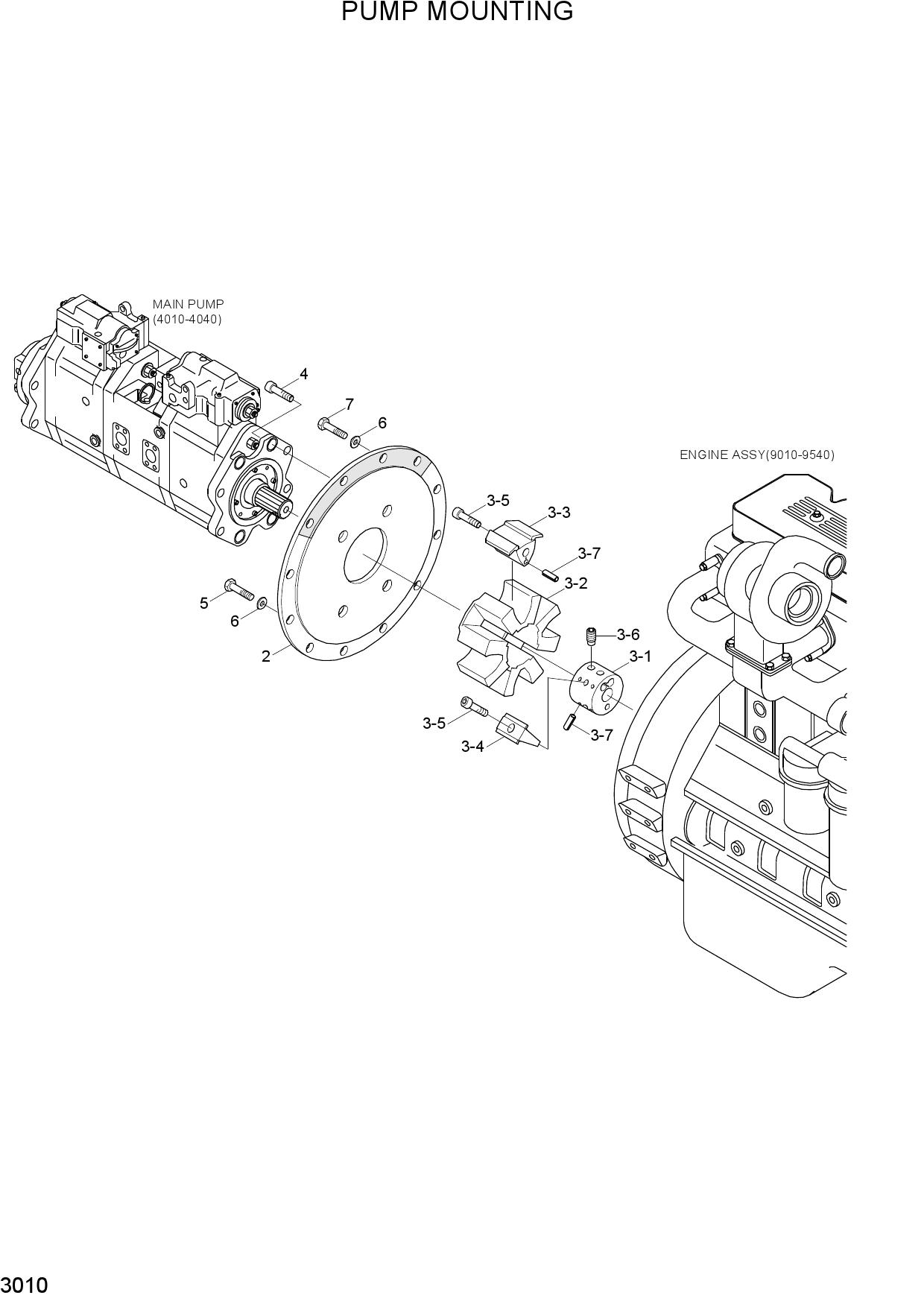

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 PUMP MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 11NA-10011 | HOUSING | |
| 3 | 11E9-16012 | COUPLING ASSY | |
| 3 | 11E9-16013 | COUPLING ASSY | |
| 3-1 | 11E9-15080 | HUB | |
| 3-1 | 11E9-15081 | HUB | |
| 3-2 | 11E9-15091 | ELEMENT | |
| 3-2 | 11E9-15092 | ELEMENT | |
| 3-3 | 11E9-15101 | INSERT-A | |
| 3-3 | 11E9-15102 | INSERT-A | |
| 3-4 | 11E9-15111 | INSERT-R | |
| 3-4 | 11E9-15112 | INSERT-R | |
| 3-5 | S107-200502 | BOLT-SOCKET | |
| 3-5 | S109-20060D | BOLT-SOCKET | |
| 3-6 | 11E9-1507 | BOLT-CLAMPING | |
| 3-7 | S472-800162 | PIN-SPRING | |
| 4 | S109-200656 | BOLT-SOCKET | |
| 5 | S017-100552 | BOLT-HEX | |
| 6 | S403-102002 | WASHER-PLAIN | |
| 7 | S017-100602 | BOLT-HEX |
