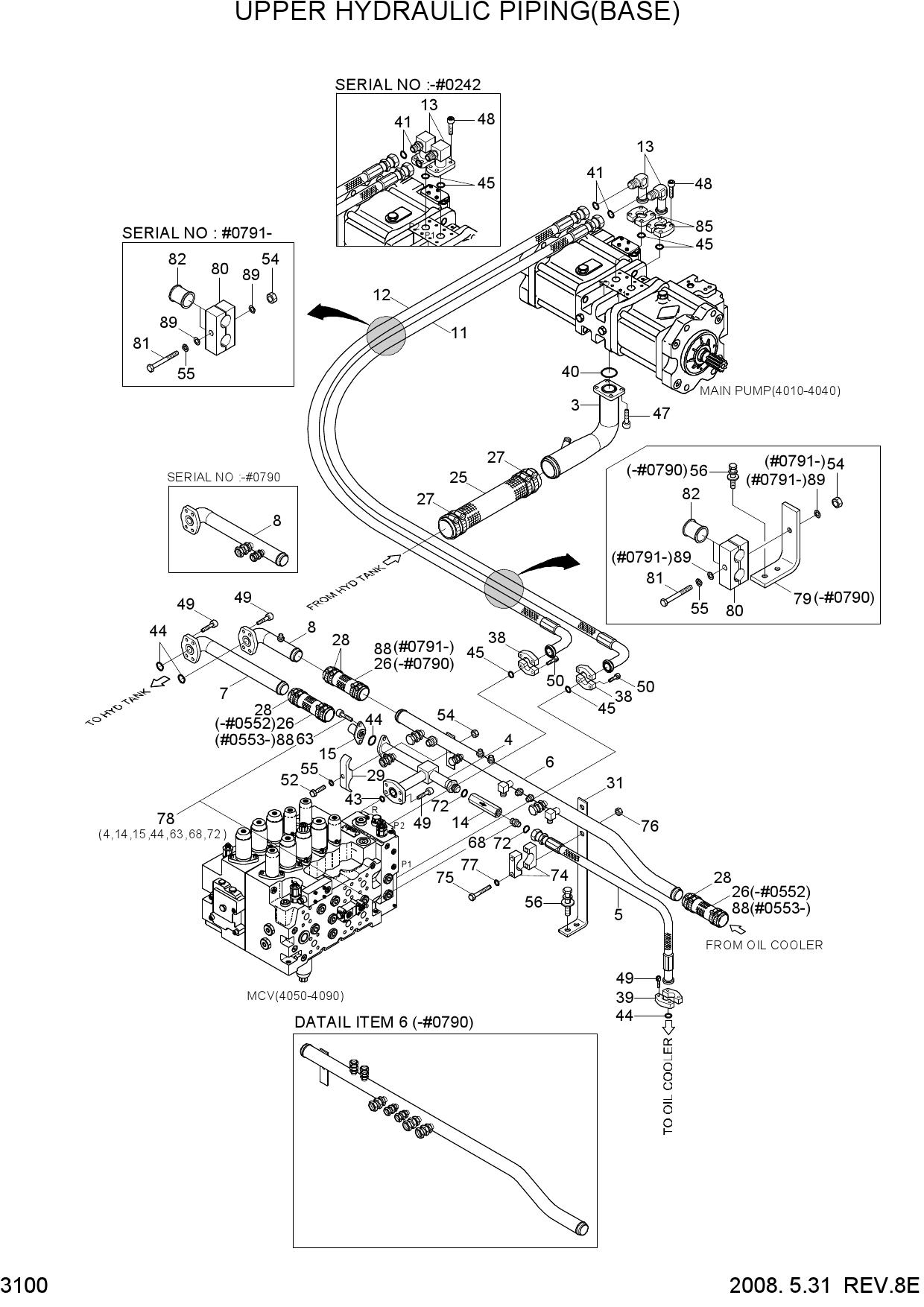

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 UPPER HYDRAULIC PIPING(BASE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N9-12110 | PIPE ASSY-SUCTION | |
| 3 | 31N9-12240 | PIPE WA-SUCTION | |
| 4 | 31N9-12120 | PIPE ASSY | |
| 4 | 31N9-12121 | PIPE ASSY | |
| 5 | P630-241315 | HOSE ASSY-THD FLG | |
| 6 | 31N9-12141 | PIPE WA-RETURN | |
| 6 | 31N9-12142 | PIPE WA-RETURN | |
| 6 | 31N9-12250 | PIPE ASSY | |
| 7 | 31N8-12151 | PIPE WA | |
| 8 | 31N9-12130 | PIPE WA | |
| 8 | 31N9-12131 | PIPE WA | |
| 8 | 31N8-12780 | PIPE WA | |
| 11 | P980-167330 | HOSE ASSY-ORFSXFLG 0X90 | |
| 11 | 31N9-12260 | HOSE ASSY | |
| 12 | 31N9-12170 | HOSE ASSY | |
| 12 | 31N9-12270 | HOSE ASSY | |
| 13 | 31N8-12200 | PIPE WA | |
| 13 | 31NA-12050 | ELBOW 90-ORFS | |
| 14 | 31E9-0142 | VALVE-CHECK | |
| 15 | 31N7-12281 | VALVE-CHECK | |
| 25 | P760-101035 | HOSE-RUBBER | |
| 25 | P760-101040 | HOSE-RUBBER LOW | |
| 26 | P760-072025 | HOSE-RUBBER | |
| 26 | P760-072025 | HOSE-RUBBER | |
| 27 | 31N6-11190 | CLAMP-HOSE WIRE TYPE | |
| 28 | S572-630006 | CLAMP-HOSE,WIRE TYPE | |
| 28 | S572-640006 | CLAMP-HOSE,WIRE TYPE | |
| 29 | 31E5-3001 | CLAMP-PIPE | |
| 31 | 31N9-12161 | BRACKET | |
| 38 | P173-160104 | FLANGE-HYD,SPLIT | |
| 39 | P173-240107 | FLANGE-HYD,SPLIT | |
| 40 | S631-085001 | O-RING | |
| 41 | S621-021001 | O-RING | |
| 43 | Y172-006004 | O-RING | |
| 44 | Y172-003004 | O-RING | |
| 45 | Y171-024004 | O-RING | |
| 47 | S109-160406 | BOLT-SOCKET | |
| 48 | S109-120406 | BOLT-SOCKET | |
| 49 | S109-120306 | BOLT-SOCKET | |
| 50 | S109-100306 | BOLT-SOCKET | |
| 52 | S017-100802 | BOLT-HEX | |
| 54 | S205-101002 | NUT-HEX | |
| 54 | S205-101002 | NUT-HEX | |
| 55 | S411-100002 | WASHER-SPRING | |
| 55 | S411-100002 | WASHER-SPRING | |
| 56 | S037-103022 | BOLT-W/WASHER | |
| 63 | S109-120456 | BOLT-SOCKET | |
| 68 | P010-110008 | CONNECTOR | |
| 72 | S631-044004 | O-RING | |
| 74 | 34L4-01120 | CLAMP | |
| 75 | S017-121002 | BOLT-HEX | |
| 76 | S205-121002 | NUT-HEX | |
| 77 | S403-121002 | WASHER-PLAIN | |
| 78 | 31N9-1212-SUB | PIPE SUB ASSY | |
| 78 | 31N9-12100 | PIPE SUB ASSY | |
| 79 | 31N8-12530 | BRACKET | |
| 80 | 31EA-02150 | CLAMP-HOSE | |
| 80 | 31N8-12560 | CLAMP-HOSE | |
| 80 | 31N8-12560 | CLAMP-HOSE | |
| 81 | S017-100902 | BOLT-HEX | |
| 81 | S017-100856 | BOLT-HEX | |
| 82 | S690-039100 | GROMMET | |
| 82 | S690-039100 | GROMMET | |
| 85 | P174-160115 | FLANGE-SPLIT | |
| 88 | P760-072020 | HOSE-RUBBER | |
| 88 | P760-072020 | HOSE-RUBBER | |
| 88 | 31N8-13080 | HOSE-RUBBER | |
| 89 | S403-101006 | WASHER-PLAIN |
