- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYD PIPING(BASE, TYPE 2, #2403-)
- UPPER HYD PIPING(TRAVEL, TYPE 1)
- UPPER HYD PIPING(TRAVEL, TYPE 2, #2403-)
- UPPER HYD PIPING(ATTACH, TYPE 1)
- UPPER HYD PIPING(ATTACH, TYPE 2, #2403-)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIP(CONTROL 1, TYPE 2, #2403-)
- PILOT HYD PIP(CONTROL 2, TYPE 2, #2403-)
- PILOT HYD PIPING(BASE 1, S/MOTOR TYPE 1)
- PILOT HYD PIPING(BASE 2, S/MOTOR TYPE 1)
- PILOT HYD PIPING(BASE 3, S/MOTOR TYPE 1)
- PILOT HYD PIPING(BASE 1, S/MOTOR TYPE 2)
- PILOT HYD PIPING(BASE 2, S/MOTOR TYPE 2)
- PILOT HYD PIPING(BASE 3, S/MOTOR TYPE 2)
- TRAVEL HYDRAULIC PIPING(-#0455)
- TRAVEL HYDRAULIC PIPING(#0456-)
- TRAVEL HYD PIPING(HIGH WALKER,-#0455)
- TRAVEL HYD PIPING(HIGH WALKER,0456-)
- BOOM HYD PIPING(6.45M, STD, -#1215)
- BOOM HYD PIPING(6.45M, STD, #1216-)
- BOOM HYDRAULIC PIPING(6.15M, #2403-)
- BOOM GREASE LUB SYS(6.45M, STD, -#1215)
- BOOM GREASE LUB SYS(6.45M, STD, #1216-)
- BOOM GREASE LUB SYS(6.15M, #2403-)
- BOOM SAFETY LOCK SYSTEM
- BOOM HYDRAULIC PIPING(6.15M,#0013-)
- BOOM GREASE LUB SYSTEM(6.15M,#0013-)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- ARM HYDRAULIC PIPING(3.2M, STD)
- ARM HYDRAULIC PIPING(2.2M, #0013-)
- ARM HYDRAULIC PIPING(2.5M, #0013-)
- ARM HYDRAULIC PIPING(4.05M, #0013-)
- ARM SAFETY LOCK SYSTEM(-#0818)
- ARM SAFETY LOCK SYSTEM(#0819-)
- S/ACTING MAIN PIPING KIT(MCV TYPE 1)
- S/ACTING MAIN PIPING KIT(MCV TYPE 2)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT(MCV TYPE1)
- DOUBLE ACTING MAIN PIPING KIT(MCV TYPE2)
- SINGLE PEDAL (DOUBLE ACTING)

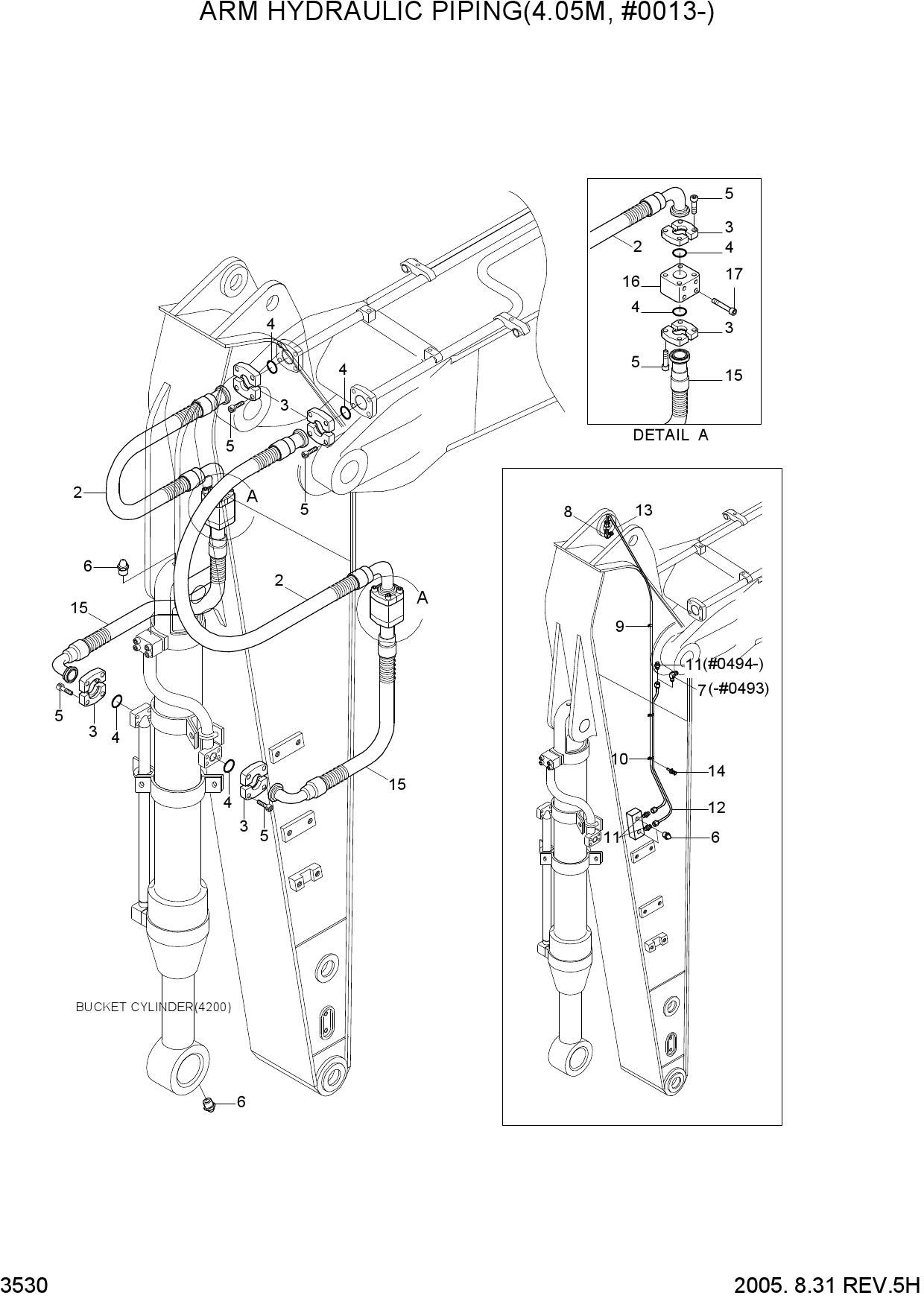

Запчасти для гусеничных экскаваторов Hyundai R320LC-7 ARM HYDRAULIC PIPING(4.05M, #0013-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | P703-167331 | HOSE ASSY-FLG 0X90 | |
| 2 | P703-167333 | HOSE ASSY-FLG 0X90 | |
| 2 | 31N9-60040 | HOSE ASSY-FLG | |
| 3 | P173-160104 | FLANGE-HYD,SPLIT | |
| 4 | Y171-024004 | O-RING | |
| 5 | S109-100356 | BOLT-SOCKET | |
| 6 | S651-810002 | NIPPLE-GREASE | |
| 7 | 61E7-0059 | ELBOW-90 | |
| 8 | 31NB-50280 | ELBOW-90 | |
| 9 | 31N8-50370 | CLAMP-HOSE | |
| 10 | 31N8-50380 | CLAMP-HOSE | |
| 11 | P010-430011 | CONNECTOR | |
| 11 | P010-430011 | CONNECTOR | |
| 12 | P840-042027 | HOSE ASSY-SYN THD | |
| 12 | P860-042027 | HOSE ASSY-SYN 0X90 | |
| 13 | P840-042055 | HOSE ASSY-SYN THD | |
| 14 | S035-062022 | BOLT-W/WASHER | |
| 15 | 31E5-60030 | HOSE ASSY | |
| 15 | 31NA-60020 | HOSE ASSY-FLG 0X90 | |
| 15 | 31NA-60021 | HOSE ASSY-FLG 0X90 | |
| 16 | 32E5-00190 | BLOCK | |
| 17 | S109-100906 | BOLT-SOCKET | |
| 17 | S109-100756 | BOLT-SOCKET |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R320LC-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
