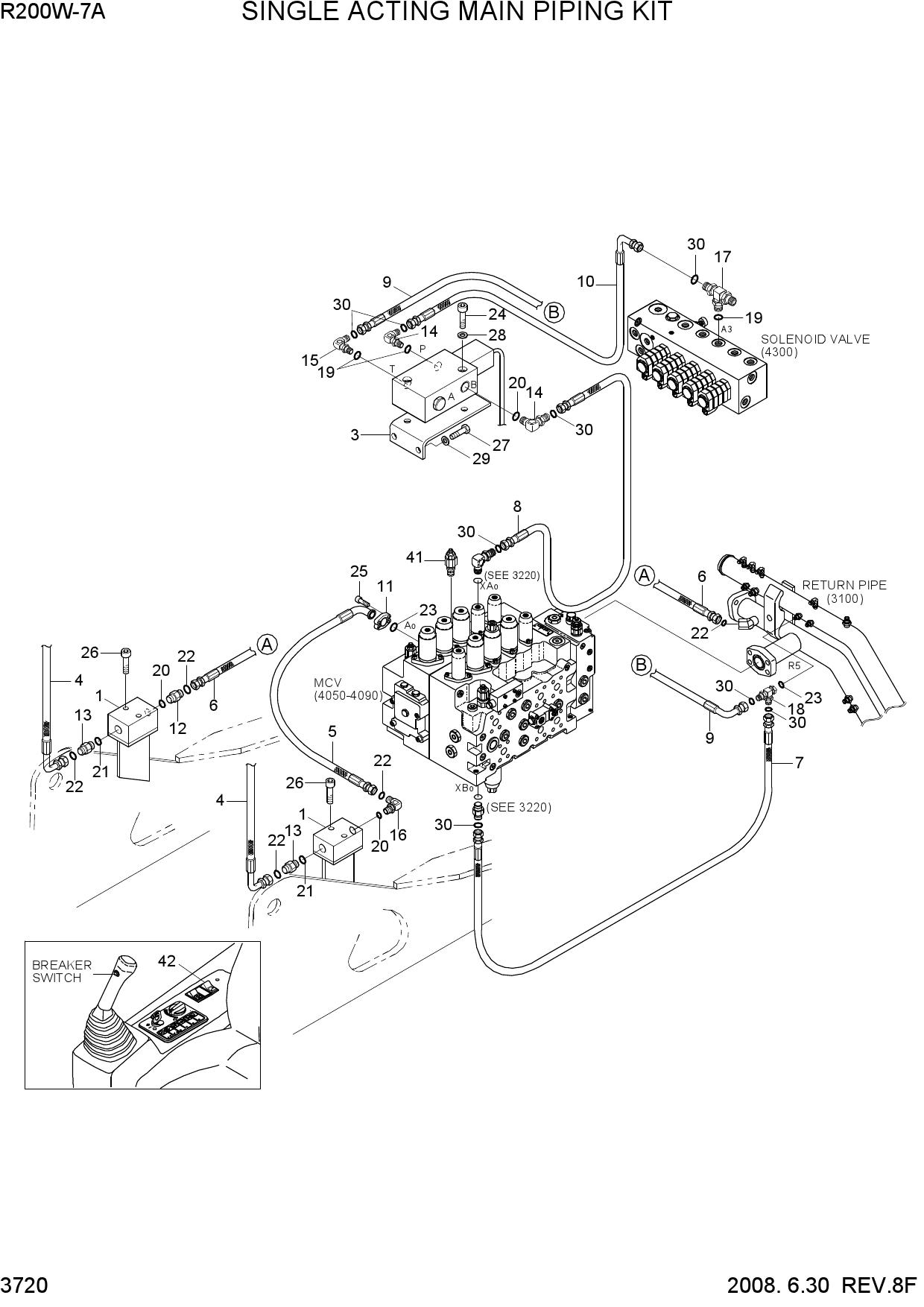

Запчасти для колесных экскаваторов Hyundai R200W-7A SINGLE ACTING MAIN PIPING KIT
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31EM-91540 | JOINT ASSY-HOSE | |
| 2 | 31N6-91230D | SOLENOID VLV-BREAKER | |
| 2-1 | XKBN-00192 | COIL-BREAKER SOL | |
| 3 | 31N6-93250 | BRACKET-SOL VALVE | |
| 4 | P973-166328 | HOSE ASSY | |
| 5 | 31N6-93220 | HOSE ASSY | |
| 6 | P913-163021 | HOSE ASSY-ORFS 0X0 | |
| 7 | P910-042024 | HOSE ASSY-ORFS 0X0 | |
| 8 | P910-042044 | HOSE ASSY-ORFS 0X0 | |
| 9 | P930-042040 | HOSE ASSY-ORFS 0X90 | |
| 10 | P910-042017 | HOSE ASSY-ORFS 0X0 | |
| 11 | P173-160104 | FLANGE-HYD,SPLIT | |
| 12 | X500-110005 | CONNECTOR-ORFS | |
| 13 | X500-110021 | CONNECTOR-ORFS | |
| 14 | X520-110001 | ELBOW-90,ORFS | |
| 15 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 16 | X520-110005 | ELBOW-90,ORFS | |
| 17 | X820-045151 | TEE-R/TYPE,ORFS | |
| 18 | X840-515151 | TEE-R/TYPE,ORFS | |
| 19 | S631-011004 | O-RING | |
| 20 | S631-029004 | O-RING | |
| 21 | S631-038004 | O-RING | |
| 22 | S621-021001 | O-RING | |
| 23 | Y171-024004 | O-RING | |
| 24 | S109-080456 | BOLT-SOCKET | |
| 25 | S109-100306 | BOLT-SOCKET | |
| 26 | S109-120656 | BOLT-SOCKET | |
| 27 | S017-100256 | BOLT-HEX | |
| 28 | S411-080006 | WASHER-SPRING | |
| 29 | S411-100006 | WASHER-SPRING | |
| 30 | S621-011001 | O-RING | |
| 41 | 31EM-10060 | PORT RELIEF VALVE | |
| 42 | 21E6-30540 | SWITCH-BREAKER |
