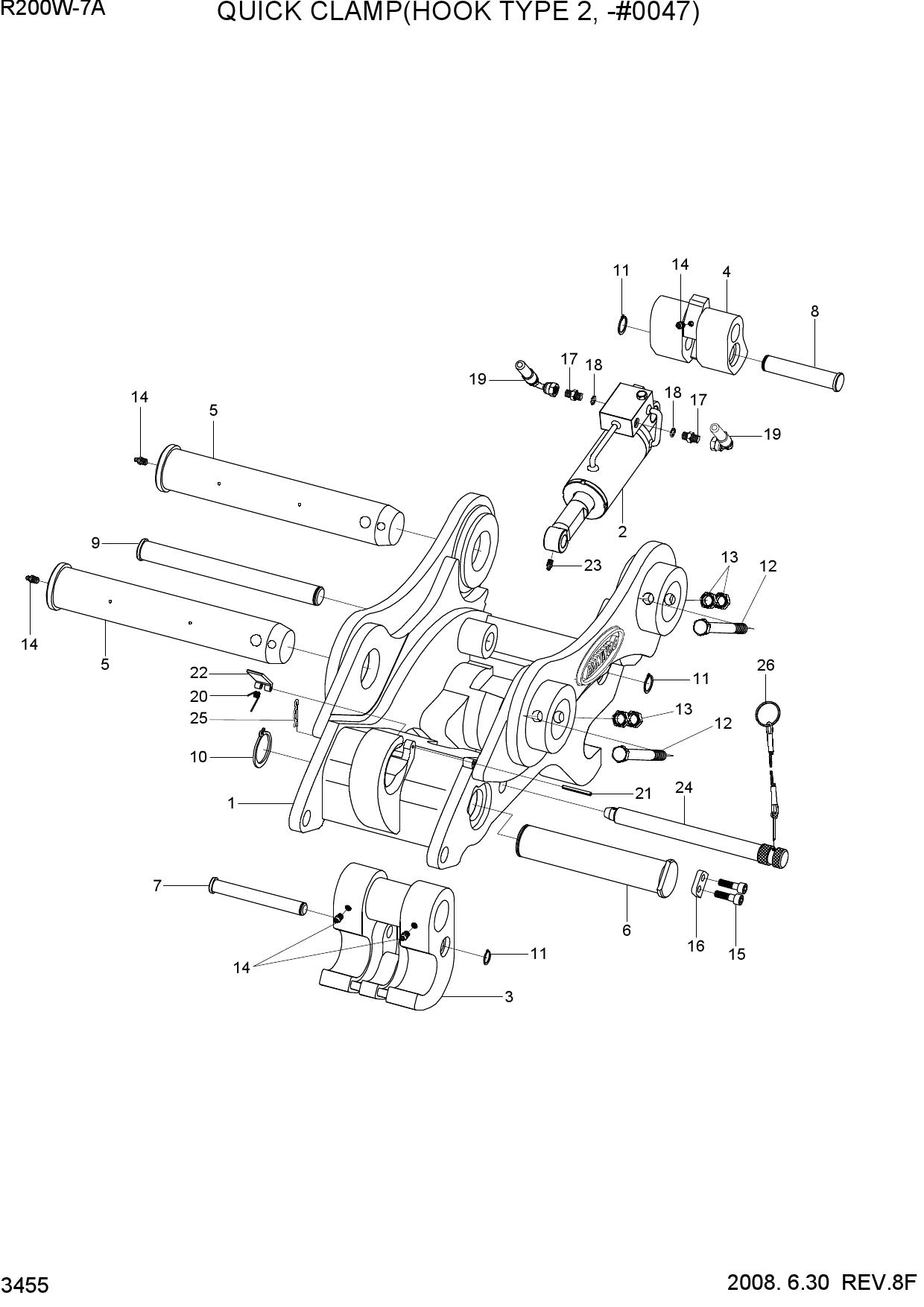

Запчасти для колесных экскаваторов Hyundai R200W-7A QUICK CLAMP(HOOK TYPE 2, -#0047)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N6-95710 | QUICK CLAMP ASSY | |
| 1 | XKBP-00046 | BODY ASSY | |
| 3 | XKBP-00047 | HOOK | |
| 4 | XKBP-00048 | LOCK | |
| 5 | XKBP-00049 | PIN-BRACKET | |
| 6 | XKBP-00050 | PIN-HOOK | |
| 7 | XKBP-00051 | PIN-JOINT | |
| 8 | XKBP-00052 | PIN-JOINT | |
| 9 | XKBP-00053 | PIN-LOCK | |
| 10 | XKBP-00054 | RING-SNAP | |
| 11 | XKBP-00010 | RING-SNAP | |
| 12 | XKBP-00055 | BOLT-HEX | |
| 13 | XKBP-00014 | NUT-HEX | |
| 14 | XKBP-00015 | NIPPLE-GREASE | |
| 15 | XKBP-00016 | BOLT-SOCKET | |
| 16 | XKBP-00056 | PLATE-COVER | |
| 17 | XKBP-00057 | ADAPTER | |
| 18 | XKBP-00019 | O-RING | |
| 19 | XKBP-00058 | HOSE | |
| 20 | XKBP-00021 | SPRING | |
| 21 | XKBP-00022 | PIN-SPRING | |
| 22 | XKBP-00023 | STOPPER | |
| 23 | XKBP-00024 | NIPPLE-GREASE | |
| 24 | XKBP-00059 | PIN-STOPPER | |
| 25 | XKBP-00026 | PIN-SNAP | |
| 26 | XKBP-00060 | WIRE ASSY |
