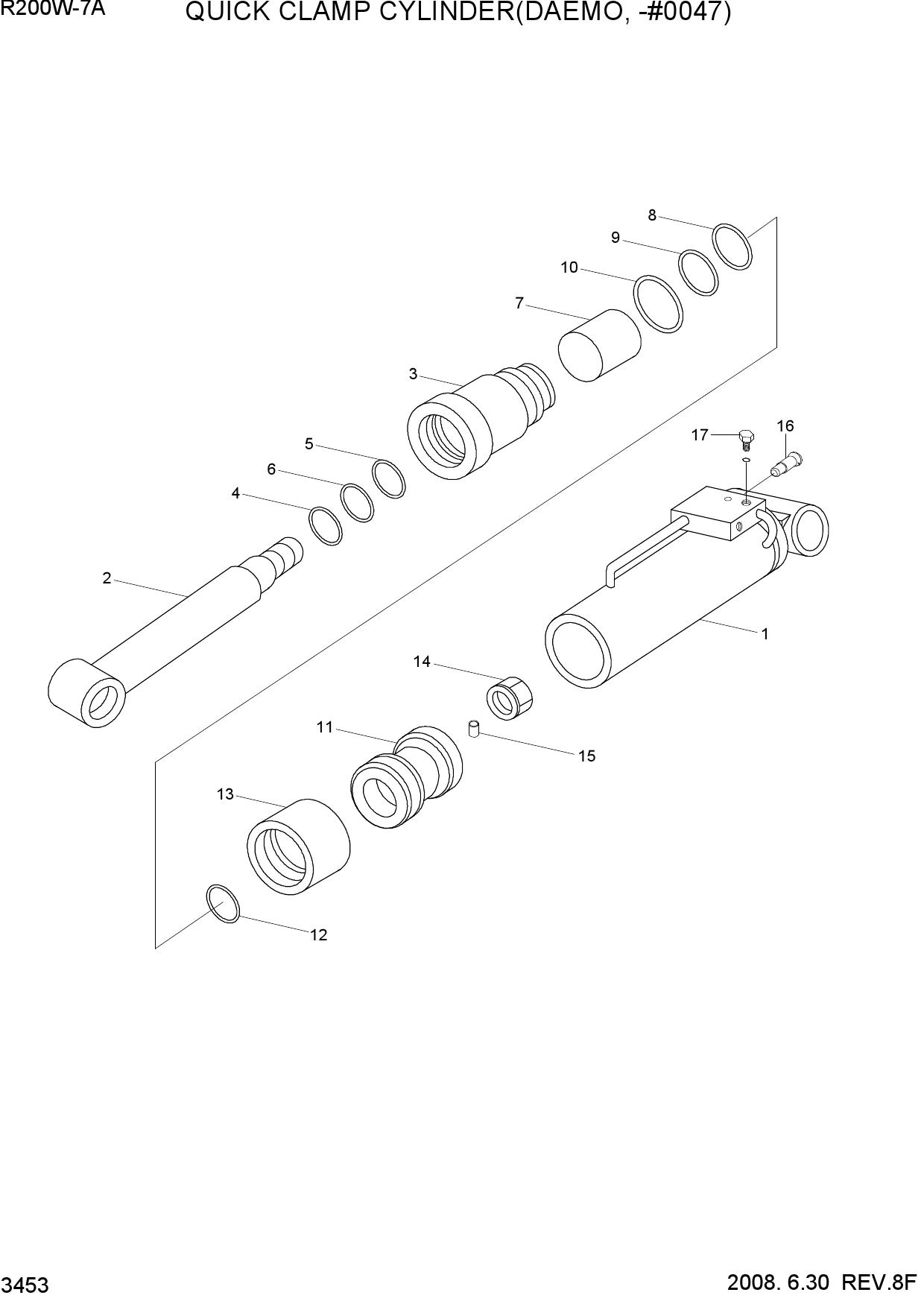

Запчасти для колесных экскаваторов Hyundai R200W-7A QUICK CLAMP CYLINDER(DAEMO, -#0047)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | XKBN-00103 | CYLINDER-QUICK CLAMP | |
| 1 | XKBN-00133 | TUBE | |
| 2 | XKBN-00134 | ROD | |
| 3 | XKBN-00135 | COVER-ROD | |
| 4 | XKBN-00136 | WIPER-DUST | |
| 5 | XKBN-00137 | U-PACKING | |
| 6 | XKBN-00035 | RING-BACK UP | |
| 7 | XKBN-00138 | BUSHING-DU | |
| 8 | XKBN-00139 | O-RING | |
| 9 | XKBN-00140 | RING-BACK UP | |
| 10 | XKBN-00141 | O-RING | |
| 11 | XKBN-00142 | PISTON | |
| 12 | XKBN-00127 | O-RING | |
| 13 | XKBN-00143 | SEAL-COMPACT | |
| 14 | XKBN-00144 | NUT-TEFRON | |
| 15 | XKBN-00145 | PIN-SPRING | |
| 16 | XKBN-00131 | CHECK VALVE-PILOT | |
| 17 | XKBN-00132 | BOLT-HEX,PLUG |
