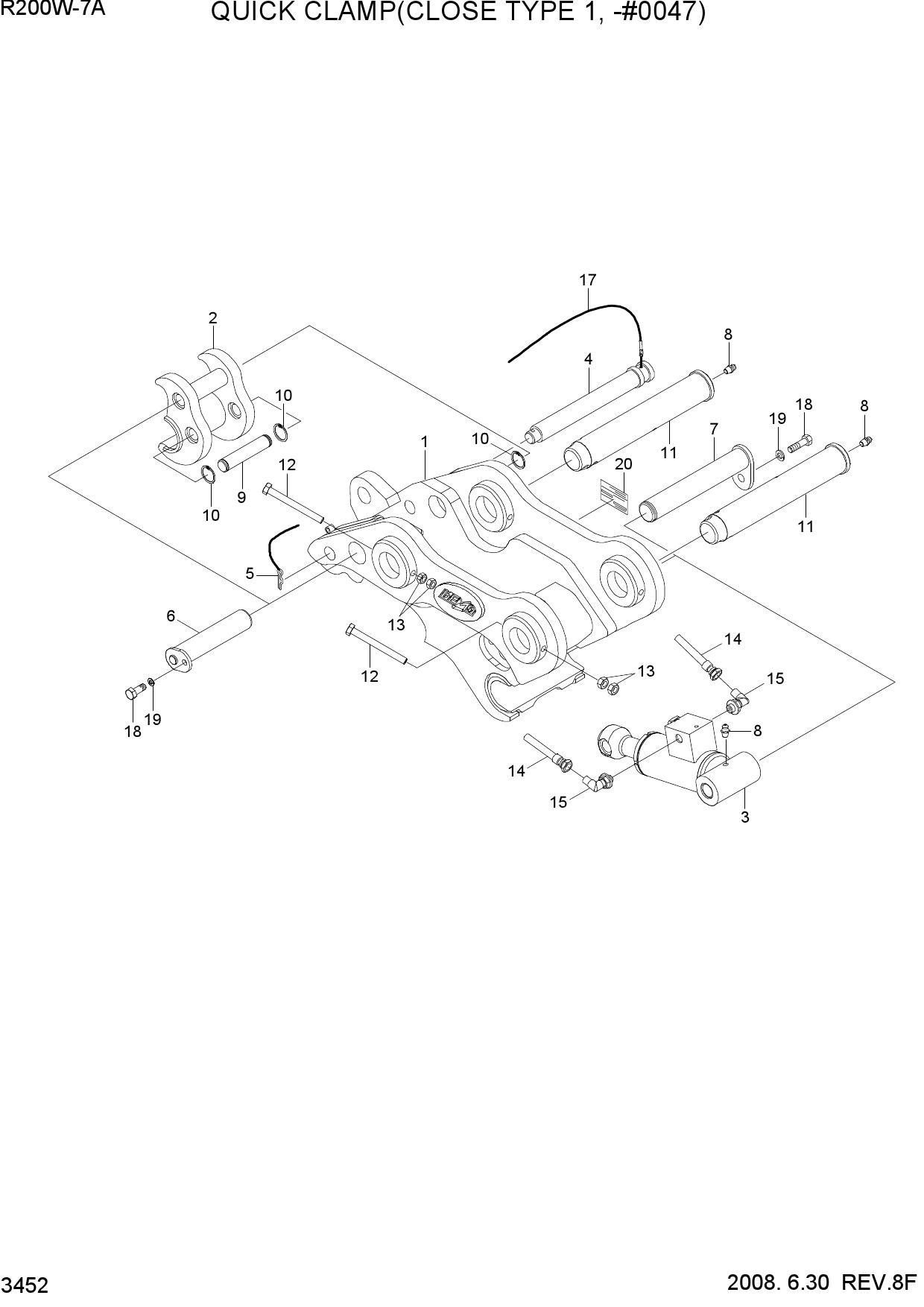

Запчасти для колесных экскаваторов Hyundai R200W-7A QUICK CLAMP(CLOSE TYPE 1, -#0047)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N6-95860 | QUICK CLAMP ASSY | |
| 1 | XKBN-00185 | BODY-CLOSE TYPE | |
| 2 | XKBN-00147 | HITCH | |
| 4 | XKBN-00149 | PIN-SAFETY | |
| 5 | XKBN-00195 | PIN-SNAP | |
| 6 | XKBN-00150 | PIN-HITCH | |
| 7 | XKBN-00151 | PIN-FRAME | |
| 8 | XKBN-00009 | NIPPLE-GREASE | |
| 9 | XKBN-00152 | PIN-CYLINDER | |
| 10 | XKBN-00109 | RING-SNAP | |
| 11 | XKBN-00153 | PIN-BRACKET | |
| 12 | XKBN-00190 | BOLT-HEX | |
| 13 | XKBN-00196 | NUT-HEX | |
| 14 | XKBN-00112 | HOSE-PROTECTOR | |
| 15 | XKBN-00016 | ELBOW-90 | |
| 17 | XKBN-00083 | WIRE ASSY | |
| 18 | XKBN-00114 | BOLT-HEX | |
| 19 | XKBN-00115 | WASHER-SPRING | |
| 20 | XKBN-00198 | NAME PLATE |
