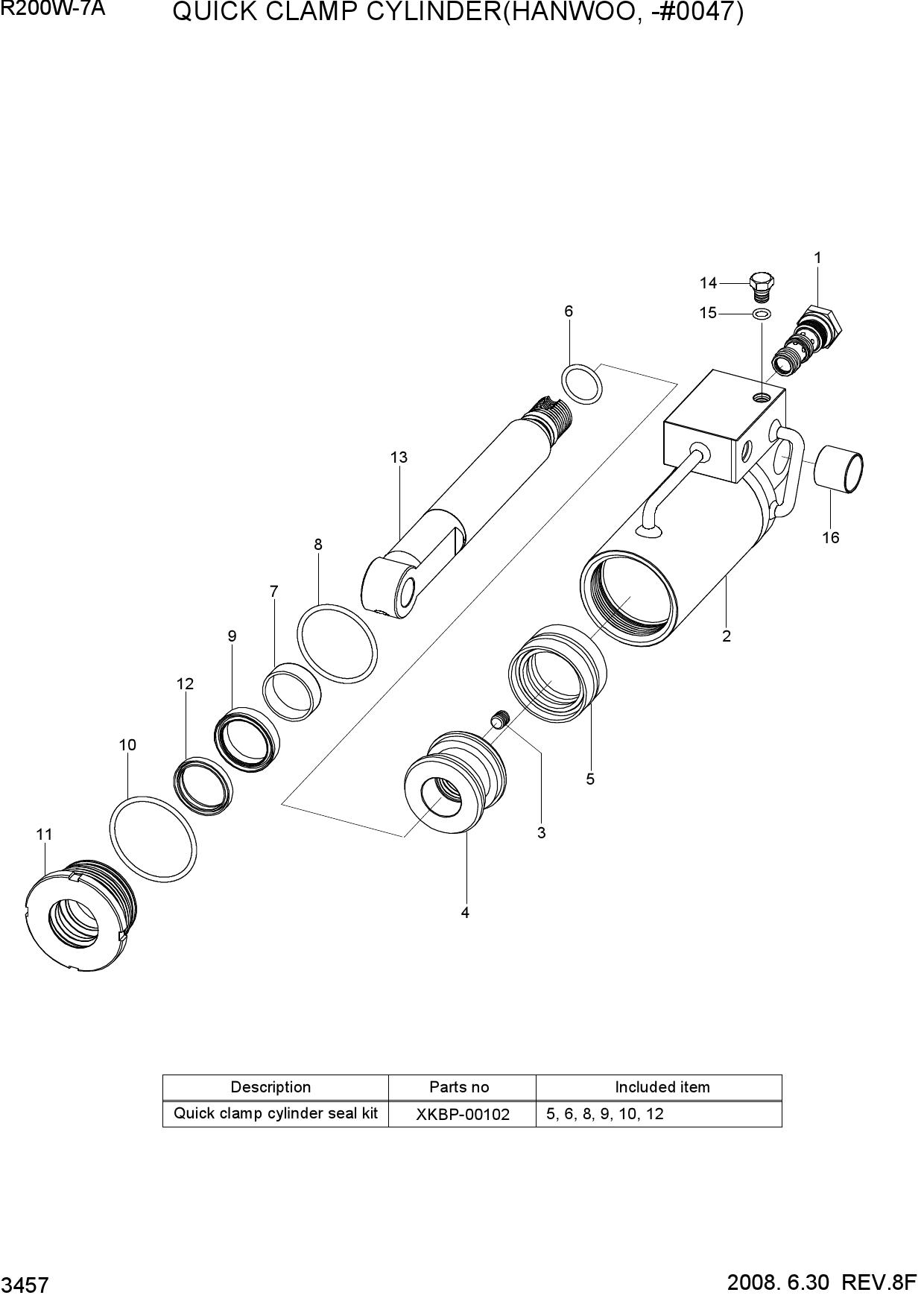

Запчасти для колесных экскаваторов Hyundai R200W-7A QUICK CLAMP CYLINDER(HANWOO, -#0047)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | XKBP-00061 | CYLINDER-QUICK CLAMP | |
| 1 | XKBP-00028 | VALVE-CHECK | |
| 2 | XKBP-00062 | TUBE | |
| 3 | XKBP-00064 | SCREW-SET | |
| 4 | XKBP-00065 | PISTON | |
| N5 | XKBP-00066 | SEAL-PISTON | |
| N6 | XKBP-00067 | O-RING | |
| 7 | XKBP-00068 | BUSHING-DU | |
| N8 | XKBP-00069 | O-RING | |
| 9 | XKBP-00070 | SEAL-ROD | |
| N10 | XKBP-00071 | O-RING | |
| 11 | XKBP-00072 | COVER | |
| 12 | XKBP-00073 | SEAL-DUST | |
| 13 | XKBP-00074 | ROD | |
| 14 | XKBP-00041 | PLUG | |
| 15 | XKBP-00042 | O-RING | |
| 16 | XKBP-00075 | BUSHING-DU | |
| K | XKBP-00102 | SEAL KIT |
