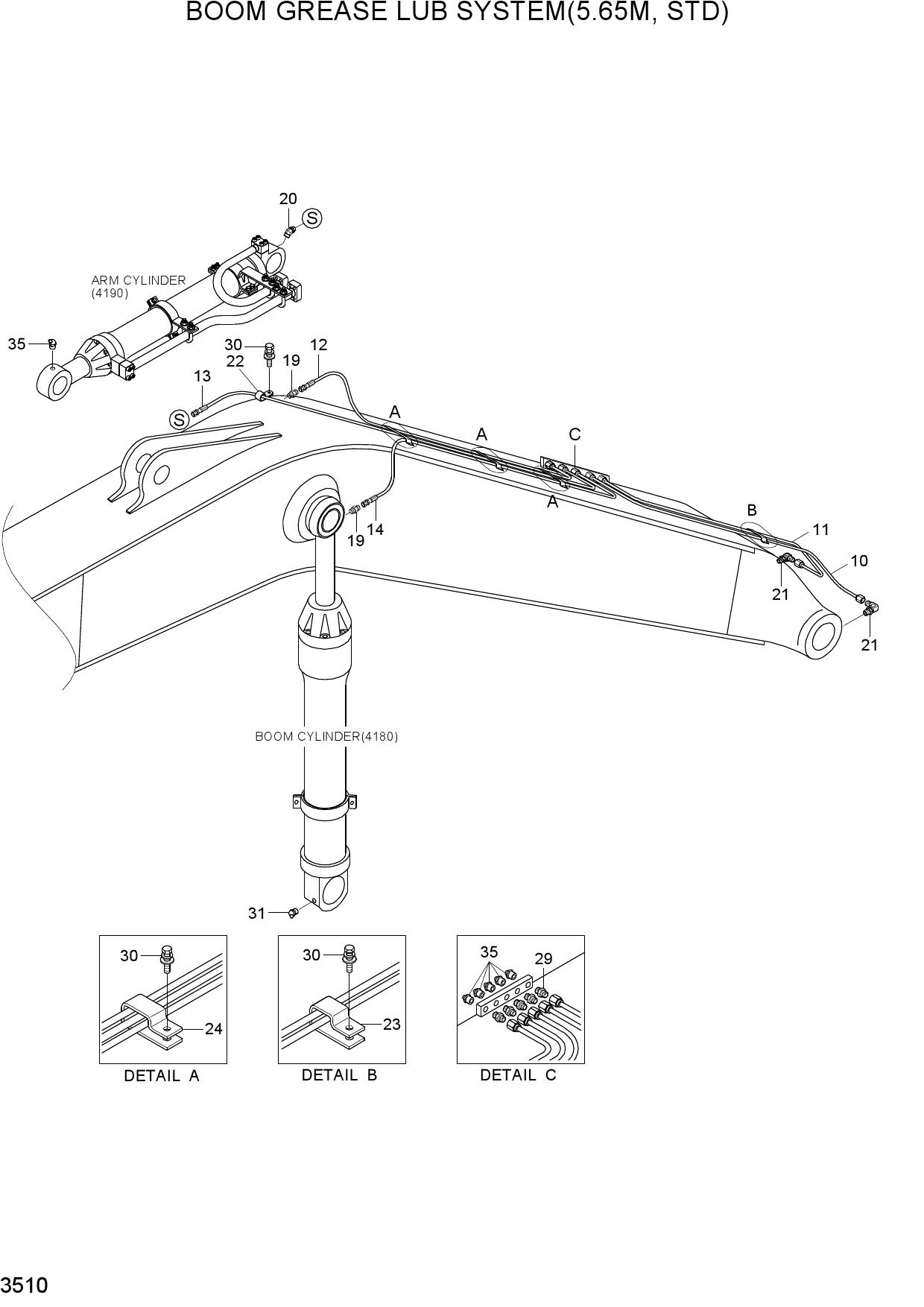

Запчасти для колесных экскаваторов Hyundai R200W-7A BOOM GREASE LUB SYSTEM(5.65M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | P840-042016 | HOSE ASSY-SYN THD | |
| 11 | P840-042015 | HOSE ASSY-SYN THD | |
| 12 | P840-042048 | HOSE ASSY-SYN THD | |
| 13 | P840-042061 | HOSE ASSY-SYN THD | |
| 14 | P840-042050 | HOSE ASSY-SYN THD | |
| 19 | P010-430011 | CONNECTOR | |
| 20 | E231-0207 | ELBOW-45 | |
| 21 | 31NB-50280 | ELBOW-90 | |
| 22 | 31N8-50370 | CLAMP-HOSE | |
| 23 | 31N8-50380 | CLAMP-HOSE | |
| 24 | 31N8-50390 | CLAMP-HOSE | |
| 29 | 31W5-70060 | CONNECTOR | |
| 30 | S035-062026 | BOLT-W/WASHER | |
| 35 | S651-810002 | NIPPLE-GREASE |
