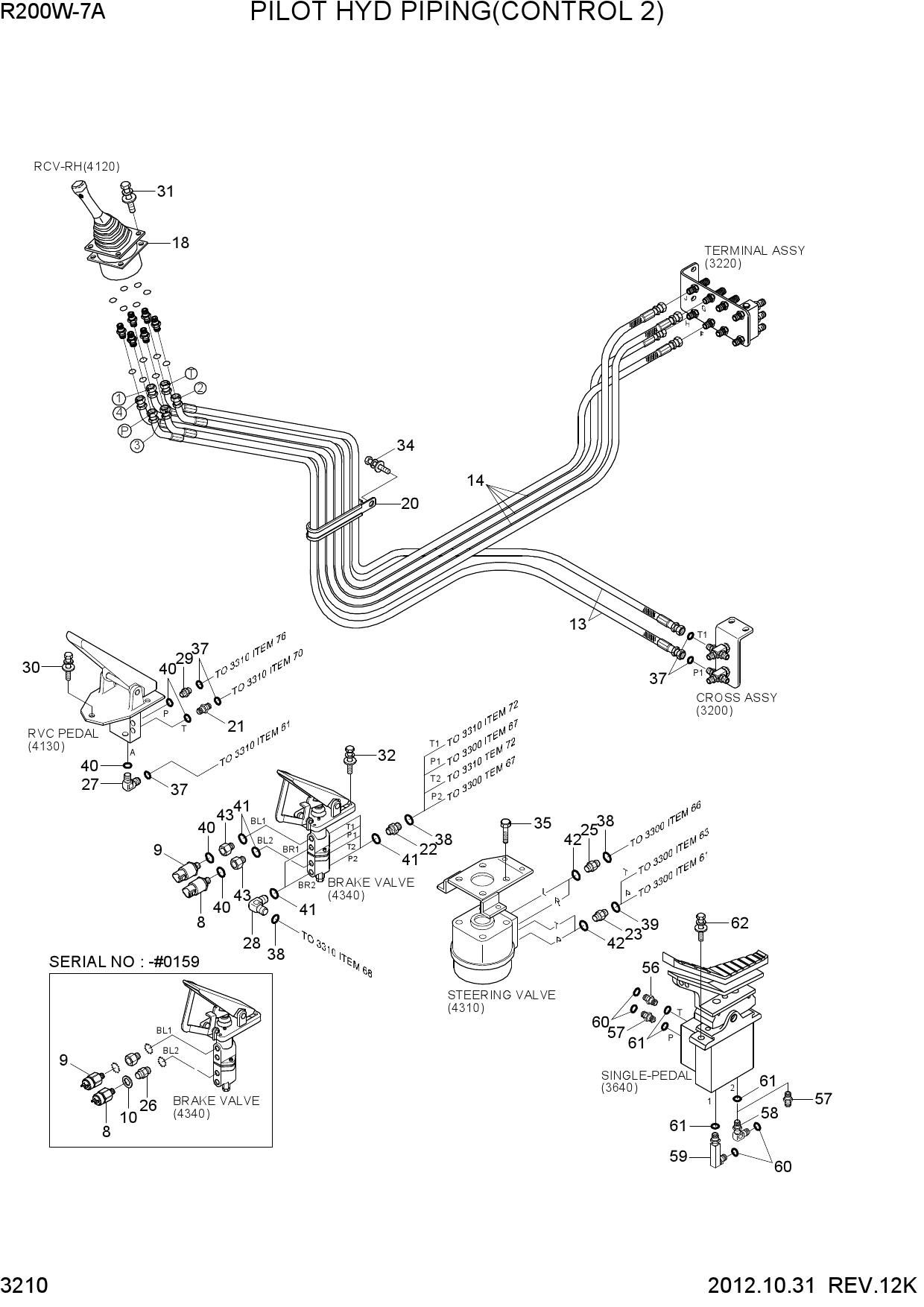

Запчасти для колесных экскаваторов Hyundai R200W-7A PILOT HYD PIPING(CONTROL 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | 34EA-30160 | SWITCH-PRESSURE | |
| 8 | 31N4-30160 | SWITCH-PRESSURE | |
| 8 | 31NA-30160 | SWITCH-PRESSURE | |
| 9 | 31L7-41030 | SWITCH-PRESSURE | |
| 9 | 31Q4-40560 | SWITCH-PRESSURE | |
| 9 | 31Q4-40840 | SWITCH-PRESSURE | |
| 10 | P392-120000 | WASHER-COPPER | |
| 13 | X410-042028 | HOSE ASSY-SYNFLEX,ORFS | |
| 14 | X410-042036 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | 31M6-51061 | SHIM(3.2T) | |
| 20 | 31E7-0312 | CLAMP-HOSE | |
| 21 | X500-110001 | CONNECTOR-ORFS | |
| 22 | X500-110002 | CONNECTOR-ORFS | |
| 23 | X500-310003 | CONNECTOR-ORFS | |
| 25 | 31N5-30050 | CONNECTOR | |
| 26 | 31EE-30061 | CONNECTOR | |
| 27 | X520-110001 | ELBOW-90,ORFS | |
| 28 | X520-110002 | ELBOW-90,ORFS | |
| 29 | 31N6-25060 | FILTER-LAST GUARD | |
| 30 | S035-062026 | BOLT-W/WASHER | |
| 31 | S035-063046 | BOLT-W/WASHER | |
| 32 | S035-083026 | BOLT-W/WASHER | |
| 34 | S037-102526 | BOLT-W/WASHER | |
| 35 | S109-100256 | BOLT-SOCKET | |
| 37 | S621-011001 | O-RING | |
| 37 | S621-011001 | O-RING | |
| 38 | S621-012001 | O-RING | |
| 39 | S621-014001 | O-RING | |
| 40 | S631-011004 | O-RING | |
| 41 | S631-014004 | O-RING | |
| 42 | S611-016001 | O-RING | |
| 43 | 31N6-39130 | CONNECTOR-TEST | |
| 43 | 31N6-39130 | CONNECTOR-TEST | |
| 56 | X500-110001 | CONNECTOR-ORFS | |
| 57 | 31N6-25060 | FILTER-LAST GUARD | |
| 58 | X520-110001 | ELBOW-90,ORFS | |
| 59 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 60 | S621-011001 | O-RING | |
| 61 | S631-011004 | O-RING | |
| 62 | S037-103026 | BOLT-W/WASHER |
