- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- CONTROL VALVE(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 4)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4)
- PILOT HYD PIPING(4 OUTRIGGER)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING 3
- FRONT OUTRIGGER HYD PIPING
- 4-OUTRIGGER PIPING 1(INDEPENDENT)
- 4-OUTRIGGER PIPING 2(INDEPENDENT)
- REAR DOZER BLADE HYD PIPING
- F/DOZER & R/OUTRIGGER PIPING 1
- F/DOZER & R/OUTRIGGER PIPING 2
- F/DOZER & R/DOZER PIPING 1(#0034-)
- F/DOZER & R/DOZER PIPING 2(#0034-)
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE 1, -#0047)
- QUICK CLAMP(HOOK TYPE 1, #0048-)
- QUICK CLAMP(CLOSE TYPE 1, -#0047)
- QUICK CLAMP(CLOSE TYPE 1, #0048-)
- QUICK CLAMP CYLINDER(DAEMO, -#0047)
- QUICK CLAMP(HOOK TYPE 2, -#0047)
- QUICK CLAMP(HOOK TYPE 2, #0048-)
- QUICK CLAMP(CLOSE TYPE 2, -#0047)
- QUICK CLAMP(CLOSE TYPE 2, #0048-)
- QUICK CLAMP CYLINDER(HANWOO, -#0047)
- BOOM HYD PIPING(5.65M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(5.65M, STD)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- ARM HYD PIPING(2.90M, STD)
- ARM SAFETY LOCK SYSTEM
- ATTACH PIPING KIT(S & D/ACTING)
- ATTACH PIPING KIT(ADJUST BOOM)
- DOUBLE ACTING MAIN PIPING KIT
- D/ ACTING MAIN PIPING KIT(ADJUST BOOM)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

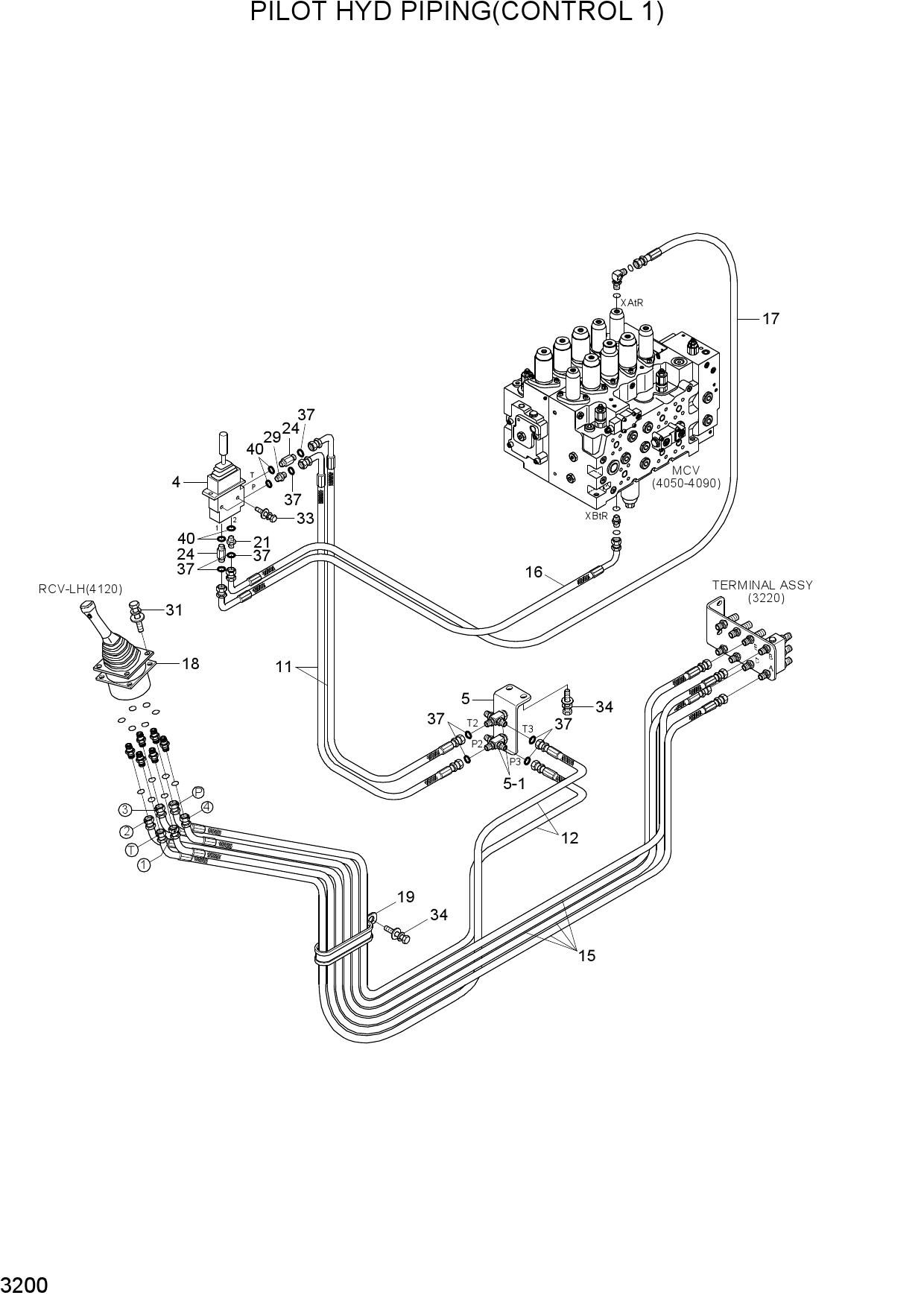

Запчасти для колесных экскаваторов Hyundai R200W-7A PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N4-20080 | LEVER-DOZER | |
| 5 | 31N6-25100 | CROSS ASSY | |
| 5-1 | 31N6-25040 | CROSS-BULKHEAD TYPE | |
| 11 | X410-042024 | HOSE ASSY-SYNFLEX,ORFS | |
| 12 | X410-042026 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | X410-042038 | HOSE ASSY-ORFS 0X45 | |
| 16 | X420-042056 | HOSE ASSY-SYNFLEX,ORFS | |
| 17 | X420-042066 | HOSE ASSY-ORFS 0X90 | |
| 18 | 31M6-51061 | SHIM(3.2T) | |
| 19 | 31E7-0309 | CLAMP-HOSE | |
| 21 | X500-110001 | CONNECTOR-ORFS | |
| 24 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 29 | 31N6-25060 | FILTER-LAST GUARD | |
| 31 | S035-063046 | BOLT-W/WASHER | |
| 33 | S035-083526 | BOLT-W/WASHER | |
| 34 | S037-102526 | BOLT-W/WASHER | |
| 37 | S621-011001 | O-RING | |
| 40 | S631-011004 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R200W-7A в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
