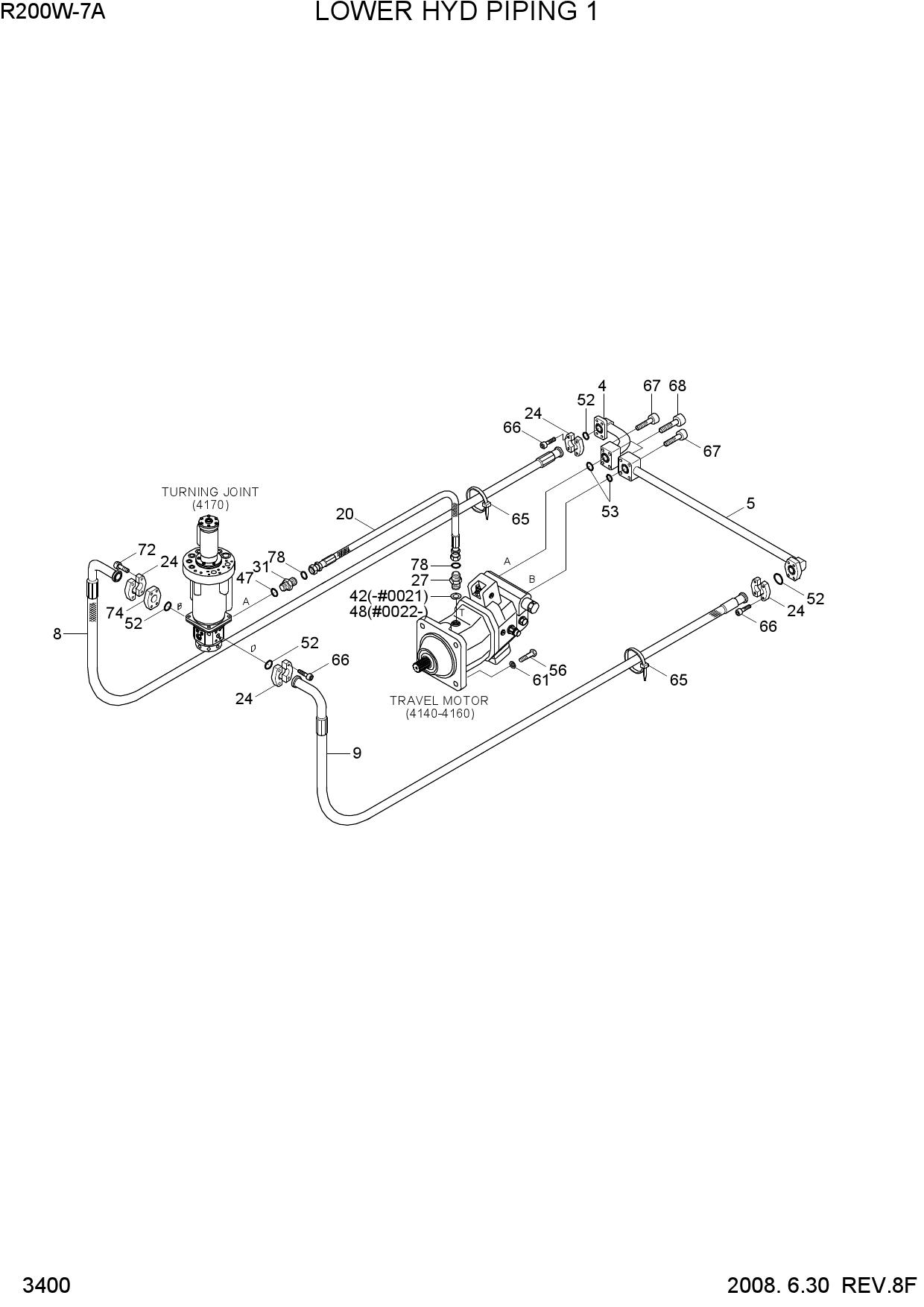

Запчасти для колесных экскаваторов Hyundai R200W-7A LOWER HYD PIPING 1
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-41120BG | PIPE ASSY | |
| 5 | 31N6-41130BG | PIPE ASSY | |
| 8 | 31N6-41180 | HOSE ASSY | |
| 9 | 31N6-41060 | HOSE ASSY | |
| 20 | P913-082008 | HOSE ASSY-ORFS 0X0 | |
| 24 | P173-160104 | FLANGE-HYD,SPLIT | |
| 27 | 31N6-41110 | CONNECTOR | |
| 27 | X500-110017 | CONNECTOR-ORFS | |
| 31 | X500-110003 | CONNECTOR-ORFS | |
| 42 | X321-027001 | ED-RING | |
| 47 | S631-018004 | O-RING | |
| 48 | S631-024004 | O-RING | |
| 52 | Y171-024004 | O-RING | |
| 53 | Y171-027004 | O-RING | |
| 56 | S017-16055D | BOLT-HEX | |
| 61 | S411-160006 | WASHER-SPRING | |
| 65 | S552-102370 | CLAMP-BAND | |
| 66 | S109-100306 | BOLT-SOCKET | |
| 67 | S109-140456 | BOLT-SOCKET | |
| 68 | S109-141306 | BOLT-SOCKET | |
| 72 | S109-100806 | BOLT-SOCKET | |
| 74 | 31N6-41070 | BLOCK-FLANGE | |
| 78 | S621-014001 | O-RING |
