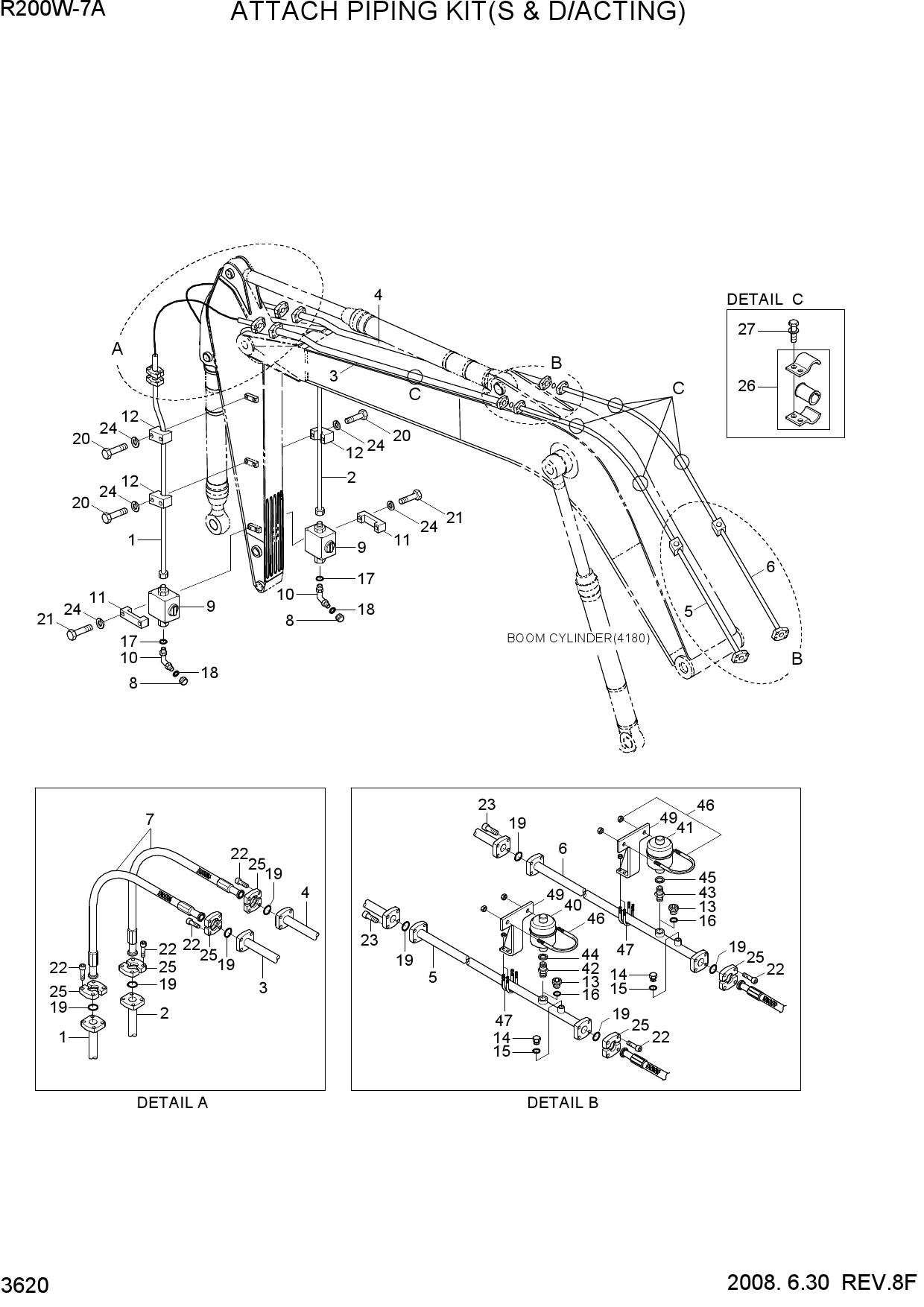

Запчасти для колесных экскаваторов Hyundai R200W-7A ATTACH PIPING KIT(S & D/ACTING)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N6-92112 | PIPE ASSY | |
| 1 | 31N6-92122 | PIPE ASSY | |
| 1 | 31N6-92132 | PIPE ASSY | |
| 1 | 31N6-92350 | PIPE ASSY | |
| 2 | 31N6-92152 | PIPE ASSY | |
| 2 | 31N6-92162 | PIPE ASSY | |
| 2 | 31N6-92172 | PIPE ASSY | |
| 2 | 31N6-92360 | PIPE ASSY | |
| 3 | 31N6-94900 | PIPE ASSY | |
| 4 | 31N6-94910 | PIPE ASSY | |
| 5 | 31N6-94921 | PIPE ASSY | |
| 6 | 31N6-94930 | PIPE ASSY | |
| 7 | P703-166334 | HOSE ASSY-FLG 0X90 | |
| 7 | P703-166332 | HOSE ASSY-FLG 0X90 | |
| 8 | X710-100106 | CAP-HYD,ORFS | |
| 9 | 31N6-97010 | VALVE-STOP | |
| 10 | X530-110005 | ELBOW-45,ORFS | |
| 11 | 31EG-91350 | CLAMP-STOP VALVE | |
| 12 | 31EG-91390 | CLAMP-PIPE | |
| 13 | P220-110205 | PLUG-SOCKET | |
| 14 | 31EK-11130 | COUPLING-SCREW | |
| 15 | S631-011004 | O-RING | |
| 16 | S631-024004 | O-RING | |
| 17 | S631-029004 | O-RING | |
| 18 | S621-021001 | O-RING | |
| 19 | Y171-024004 | O-RING | |
| 20 | S017-120606 | BOLT-HEX | |
| 21 | S017-120706 | BOLT-HEX | |
| 22 | S109-100406 | BOLT-SOCKET | |
| 23 | S109-100506 | BOLT-SOCKET | |
| 24 | S411-120006 | WASHER-SPRING | |
| 25 | P173-160104 | FLANGE-HYD,SPLIT | |
| 26 | 31E7-01711 | CLAMP ASSY | |
| 27 | S037-123526 | BOLT-W/WASHER | |
| 40 | 32E6-92040 | ACCUMULATOR | |
| 41 | 32E6-92050 | ACCUMULATOR | |
| 42 | 32E3-2021 | FITTING | |
| 43 | 32E3-2020 | FITTING | |
| 44 | P392-220000 | WASHER-COPPER | |
| 45 | S392-180000 | SHIM-ROUND(2.0T) | |
| 46 | 32E6-92060 | U-BOLT | |
| 47 | S071-033430 | U-BOLT | |
| 49 | 32E6-92080 | BRACKET-ACCUM |
