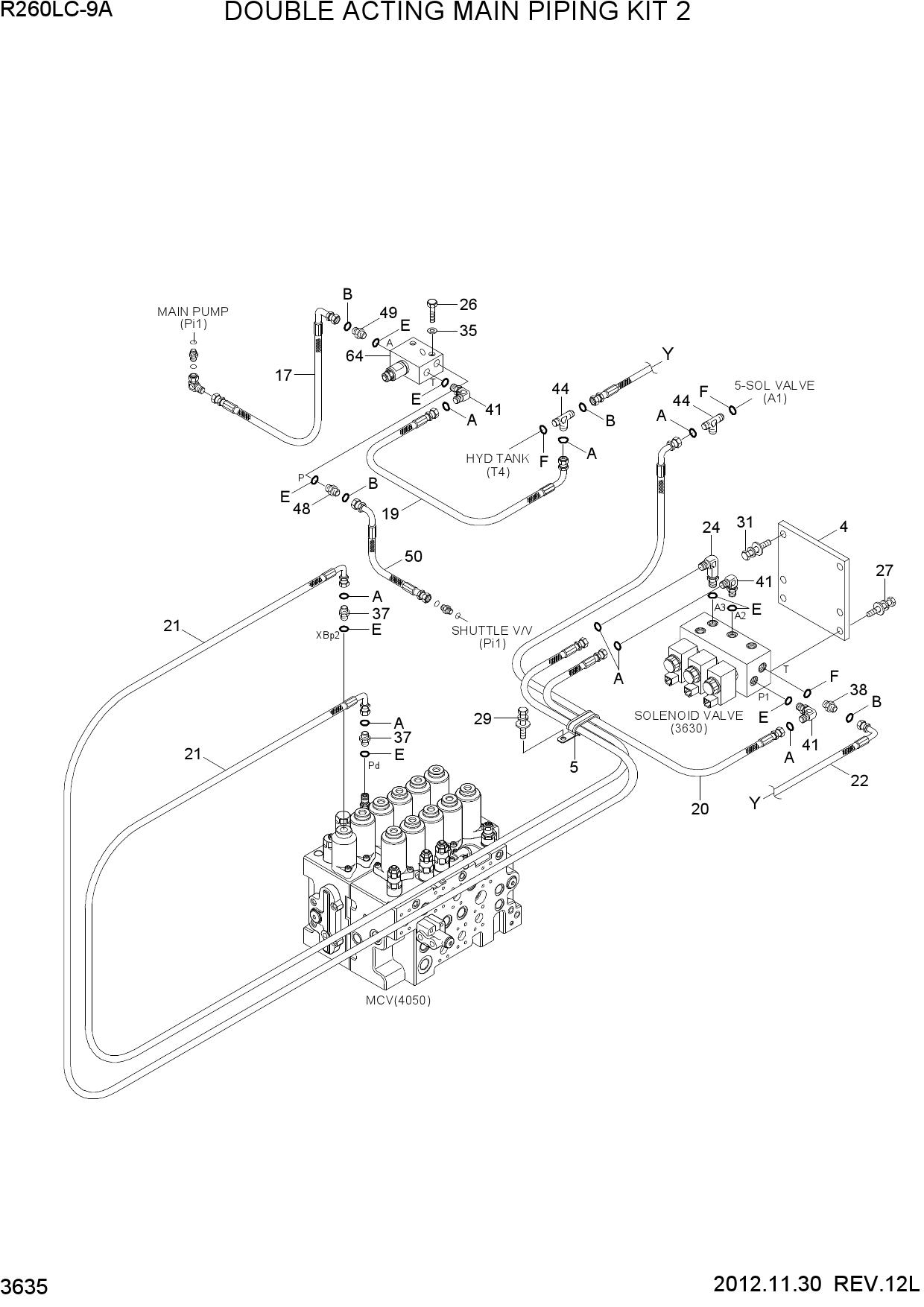

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A DOUBLE ACTING MAIN PIPING KIT 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-90450 | BRACKET-SOL VALVE | |
| 5 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 17 | P930-062013 | HOSE ASSY-ORFS 0X90 | |
| 19 | P930-042032 | HOSE ASSY-ORFS 0X90 | |
| 19 | P930-042037 | HOSE ASSY-ORFS 0X90 | |
| 20 | P930-042035 | HOSE ASSY-ORFS 0X90 | |
| 21 | P930-042050 | HOSE ASSY-ORFS 0X90 | |
| 22 | P930-062038 | HOSE ASSY-ORFS 0X90 | |
| 24 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 26 | S015-060506 | BOLT-HEX | |
| 27 | S035-082026 | BOLT-W/WASHER | |
| 29 | S037-102026 | BOLT-W/WASHER | |
| 31 | S037-122526 | BOLT-W/WASHER | |
| 35 | S403-06200B | WASHER-PLAIN | |
| 37 | X500-110001 | CONNECTOR-ORFS | |
| 38 | X500-110002 | CONNECTOR-ORFS | |
| 41 | X520-110001 | ELBOW-90,ORFS | |
| 44 | X820-065251 | TEE-R/TYPE,ORFS | |
| 48 | 31N6-25070 | FILTER-LAST GUARD | |
| 49 | X500-110011 | CONNECTOR-ORFS | |
| 50 | P930-062030 | HOSE ASSY-ORFS 0X90 | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| E | S631-011004 | O-RING | |
| F | S631-014004 | O-RING | |
| 64 | 31Q9-20130 | EPPR VALVE |
