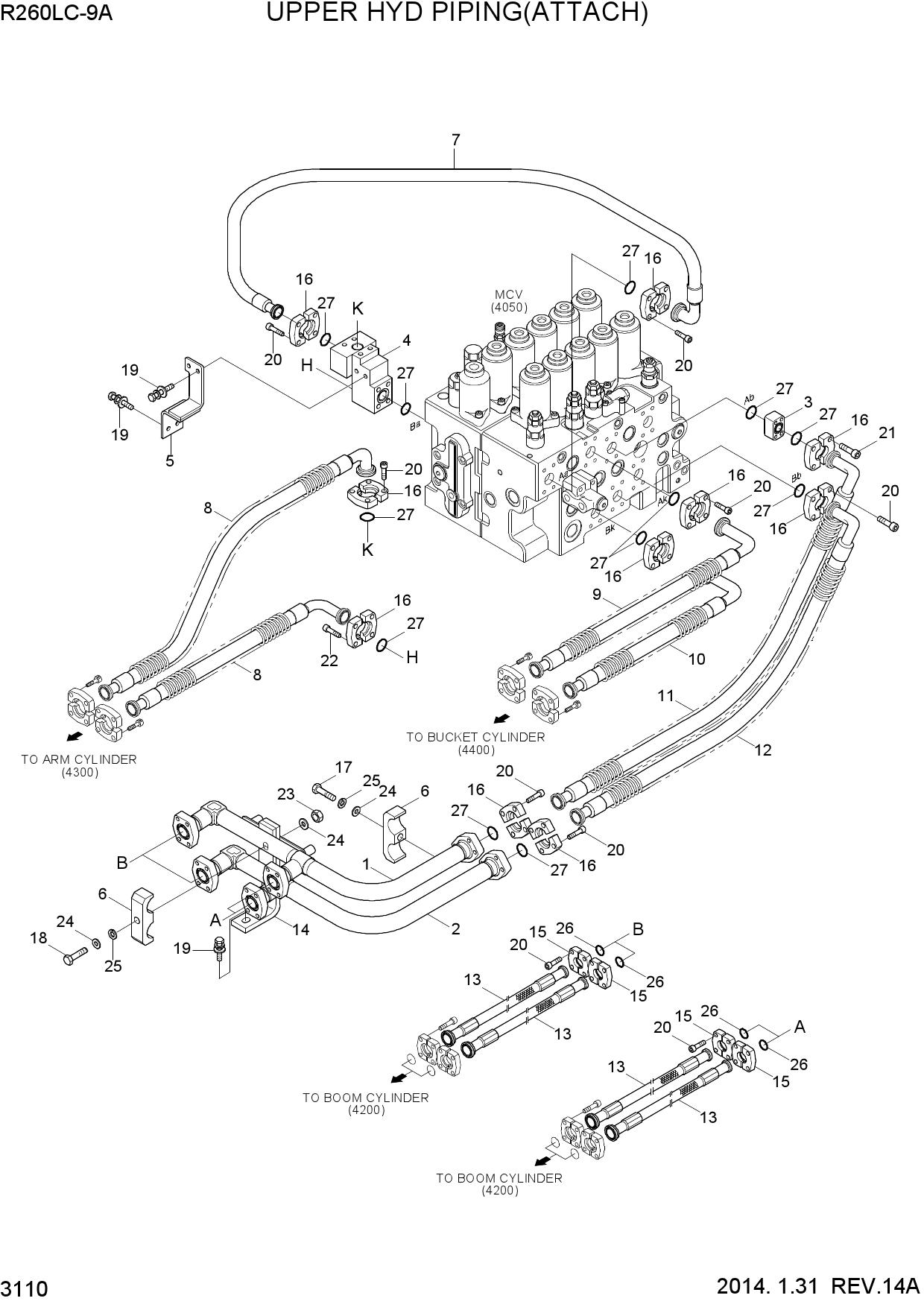

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q7-11310 | PIPE WA | |
| 2 | 31Q7-11320 | PIPE WA | |
| 3 | 31Q6-11410 | BLOCK-FLANGE | |
| 4 | 31Q6-12401 | BLOCK | |
| 5 | 31Q6-12420 | BRACKET | |
| 6 | 31Q6-11330 | CLAMP | |
| 7 | 31Q6-12410 | HOSE ASSY-FLG 0X90 | |
| 8 | 31Q7-11340 | HOSE ASSY | |
| 9 | 31Q7-11360 | HOSE ASSY | |
| 10 | 31Q7-11370 | HOSE ASSY | |
| 11 | 31Q7-11380 | HOSE ASSY | |
| 12 | 31Q7-11391 | HOSE ASSY | |
| 13 | P684-128317 | HOSE ASSY-FLG 0X0 | |
| 13 | 31Q7-15910 | HOSE ASSY-FLG(HI-GRADE) | |
| 14 | 31Q8-11302 | BRACKET | |
| 15 | P173-120102 | FLANGE-HYD,SPLIT | |
| 16 | P173-160104 | FLANGE-HYD,SPLIT | |
| 17 | S017-120706 | BOLT-HEX | |
| 18 | S017-120956 | BOLT-HEX | |
| 19 | S037-123026 | BOLT-W/WASHER | |
| 20 | S109-100306 | BOLT-SOCKET | |
| 21 | S109-100506 | BOLT-SOCKET | |
| 22 | S109-101006 | BOLT-SOCKET | |
| 23 | S205-12100B | NUT-HEX | |
| 24 | S403-12200B | WASHER-PLAIN | |
| 25 | S411-120006 | WASHER-SPRING | |
| 26 | Y171-019004 | O-RING | |
| 27 | Y171-024004 | O-RING |
