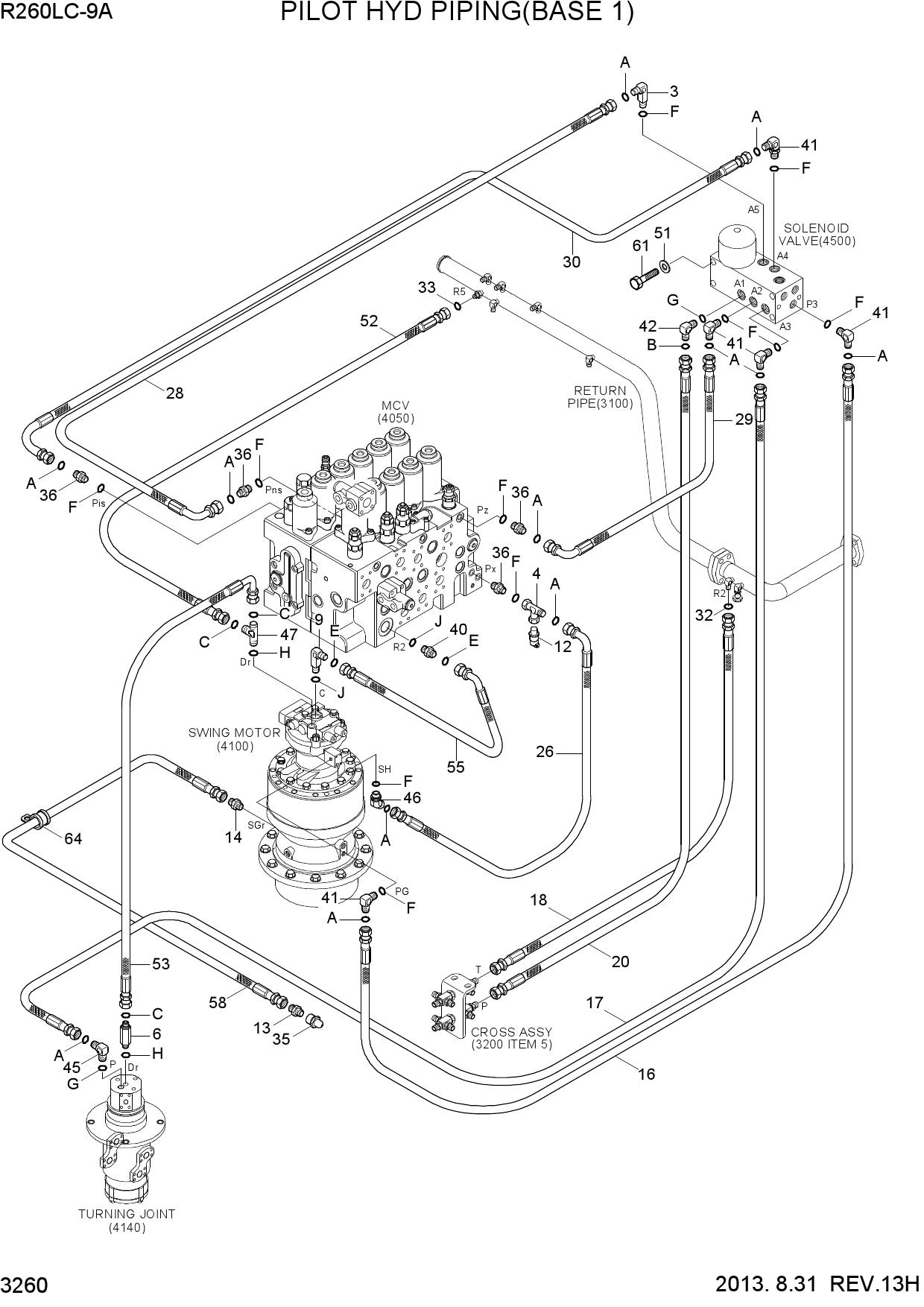

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A PILOT HYD PIPING(BASE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 4 | 31N6-66080 | TEE-BRENCH TEST | |
| 6 | 31N8-40190 | CONNECTOR-LONG,ORFS | |
| 9 | 31Q8-11200 | ELBOW-90,ORFS,LONG | |
| 9 | 31Q7-11210 | ELBOW-90,ORFS,LONG | |
| 12 | 31Q4-40830 | SENSOR-PRESSURE | |
| 13 | 31W5-70060 | CONNECTOR | |
| 14 | P010-430002 | CONNECTOR | |
| 16 | X400-042050 | HOSE ASSY-SYNF,ORFS | |
| 17 | X400-042058 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | X400-062025 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | X400-062072 | HOSE ASSY-SYNFLEX,ORFS | |
| 26 | X420-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 28 | X420-042042 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-042047 | HOSE ASSY-SYNFLEX,ORFS | |
| 30 | X420-042048 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | S621-012001 | O-RING | |
| 33 | S621-014001 | O-RING | |
| 35 | S653-810002 | NIPPLE-GREASE | |
| 36 | X500-110001 | CONNECTOR-ORFS | |
| 40 | X500-110005 | CONNECTOR-ORFS | |
| 41 | X520-110001 | ELBOW-90,ORFS | |
| 42 | X520-110002 | ELBOW-90,ORFS | |
| 45 | X520-110012 | ELBOW-90,ORFS | |
| 46 | X530-110001 | ELBOW-45,ORFS | |
| 47 | X810-085353 | TEE-B/TYPE,ORFS | |
| 51 | S441-10000B | WASHER-HARDENED | |
| 52 | P910-082016 | HOSE ASSY-ORFS 0X0 | |
| 53 | P920-082018 | HOSE ASSY-ORFS 0X45 | |
| 55 | P920-162016 | HOSE ASSY-ORFS 0X45 | |
| 58 | P840-042024 | HOSE ASSY-SYN THD | |
| 61 | S017-101156 | BOLT-HEX | |
| 64 | 31L7-10190 | CLAMP-TUBE | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| C | S621-014001 | O-RING | |
| E | S621-021001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| J | S631-029004 | O-RING |
