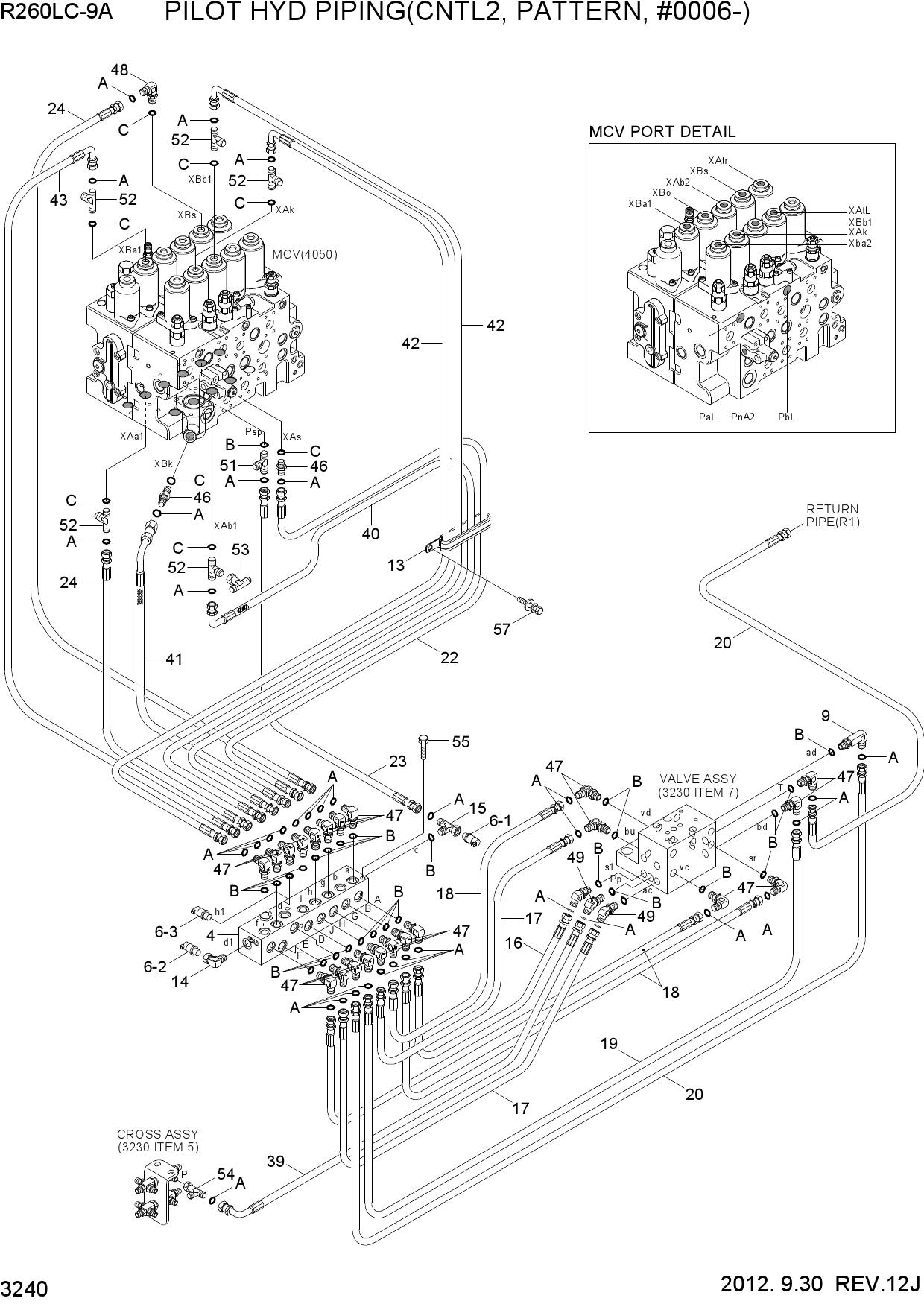

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A PILOT HYD PIPING(CNTL2, PATTERN, #0006-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-20171 | BLOCK-TERMINAL | |
| 4-1 | XKAL-00097 | BLOCK-MANIFOLD | |
| 4-2 | XKAL-00096 | VALVE-SHUTTLE | |
| 6-1 | 31Q4-40830 | SENSOR-PRESSURE | |
| 6-2 | 31Q4-40830 | SENSOR-PRESSURE | |
| 6-3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 9 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 13 | 31L7-10270 | CLAMP-TUBE | |
| 14 | 31E5-11110 | ADAPTER | |
| 15 | 31NA-22310 | TEE-BRANCH TYPE | |
| 16 | X400-042011 | HOSE ASSY-SYNF,ORFS | |
| 17 | X400-042014 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | X400-042015 | HOSE ASSY-SYNFLEX,ORFS | |
| 19 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | X400-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 22 | X400-042035 | HOSE ASSY-SYNFLEX,ORFS | |
| 23 | X400-042038 | HOSE ASSY-SYNF,ORFS | |
| 24 | X400-042040 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X420-042028 | HOSE ASSY-ORFS 0X90 | |
| 40 | X420-042038 | HOSE ASSY-ORFS 0X90 | |
| 41 | X420-042040 | HOSE ASSY-ORFS 0X90 | |
| 42 | X420-042042 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | X420-042046 | HOSE ASSY-SYNFLEX,ORFS | |
| 46 | X500-110013 | CONNECTOR-ORFS | |
| 47 | X520-110001 | ELBOW-90,ORFS | |
| 48 | X520-110012 | ELBOW-90,ORFS | |
| 49 | X530-110001 | ELBOW-45,ORFS | |
| 51 | X820-045151 | TEE-R/TYPE,ORFS | |
| 52 | X820-065151 | TEE-R/TYPE,ORFS | |
| 53 | X840-515151 | TEE-R/TYPE,ORFS | |
| 54 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 55 | S015-080756 | BOLT-HEX | |
| 57 | S037-102026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| B | S631-011004 | O-RING | |
| C | S631-014004 | O-RING |
