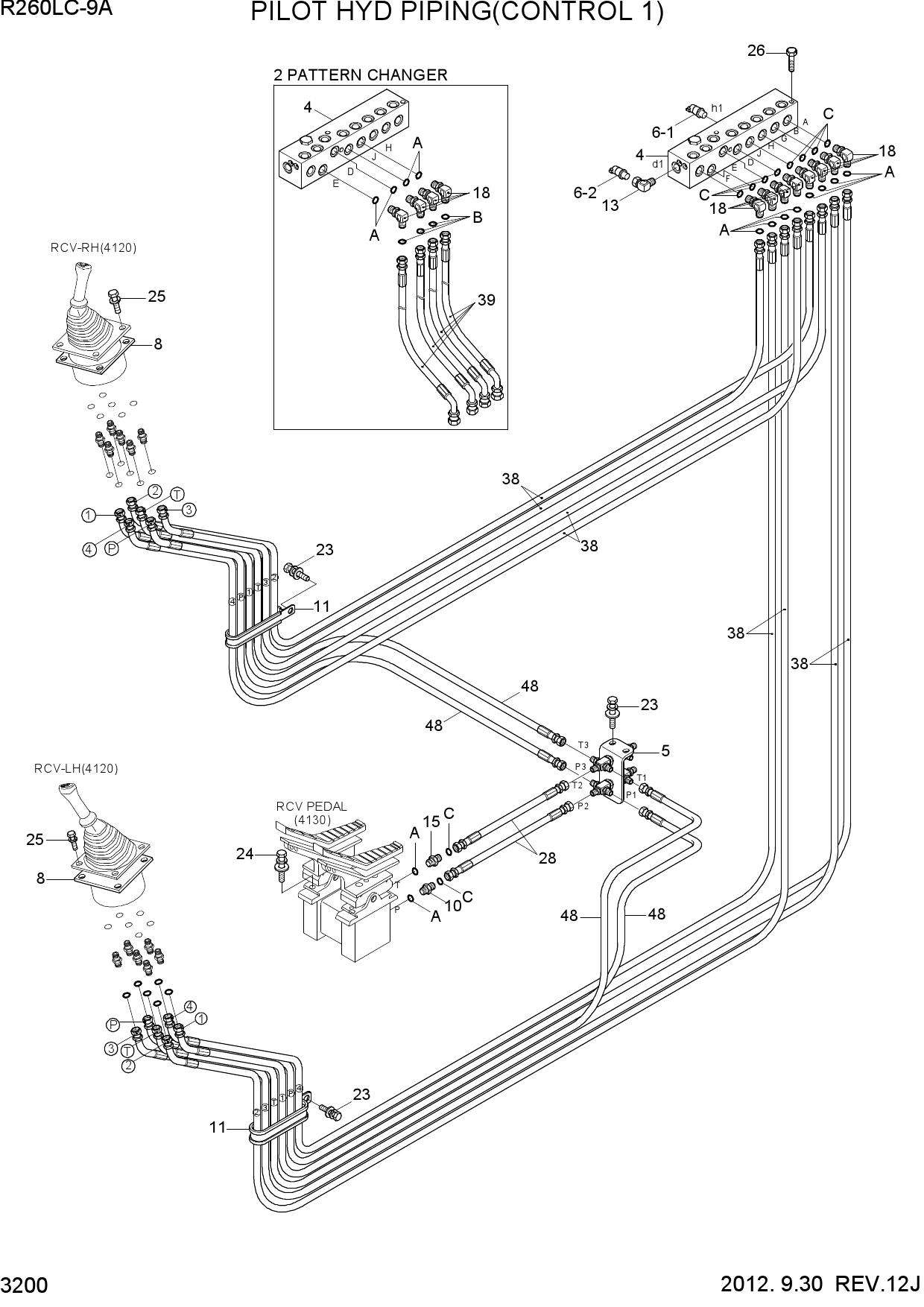

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-20171 | BLOCK-TERMINAL | |
| 4-1 | XKAL-00097 | BLOCK-MANIFOLD | |
| 4-2 | XKAL-00096 | VALVE-SHUTTLE | |
| 5 | 31N6-25100 | CROSS ASSY | |
| 6-1 | 31Q4-40830 | SENSOR-PRESSURE | |
| 6-2 | 31Q4-40830 | SENSOR-PRESSURE | |
| 8 | 31M6-51061 | SHIM(3.2T) | |
| 10 | 31N6-25060 | FILTER-LAST GUARD | |
| 11 | 31L7-10240 | CLAMP-TUBE INS | |
| 13 | 31E5-11110 | ADAPTER | |
| 15 | X500-110001 | CONNECTOR-ORFS | |
| 18 | X520-110001 | ELBOW-90,ORFS | |
| 23 | S037-102526 | BOLT-W/WASHER | |
| 24 | S037-103026 | BOLT-W/WASHER | |
| 25 | S035-063046 | BOLT-W/WASHER | |
| 26 | S015-080756 | BOLT-HEX | |
| 28 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 38 | X410-042045 | HOSE ASSY-ORFS 0X45 | |
| 39 | X410-042050 | HOSE ASSY-SYNFLEX,ORFS | |
| 48 | P920-042023 | HOSE ASSY-ORFS 0X45 | |
| A | S631-011004 | O-RING | |
| C | S621-011001 | O-RING |
