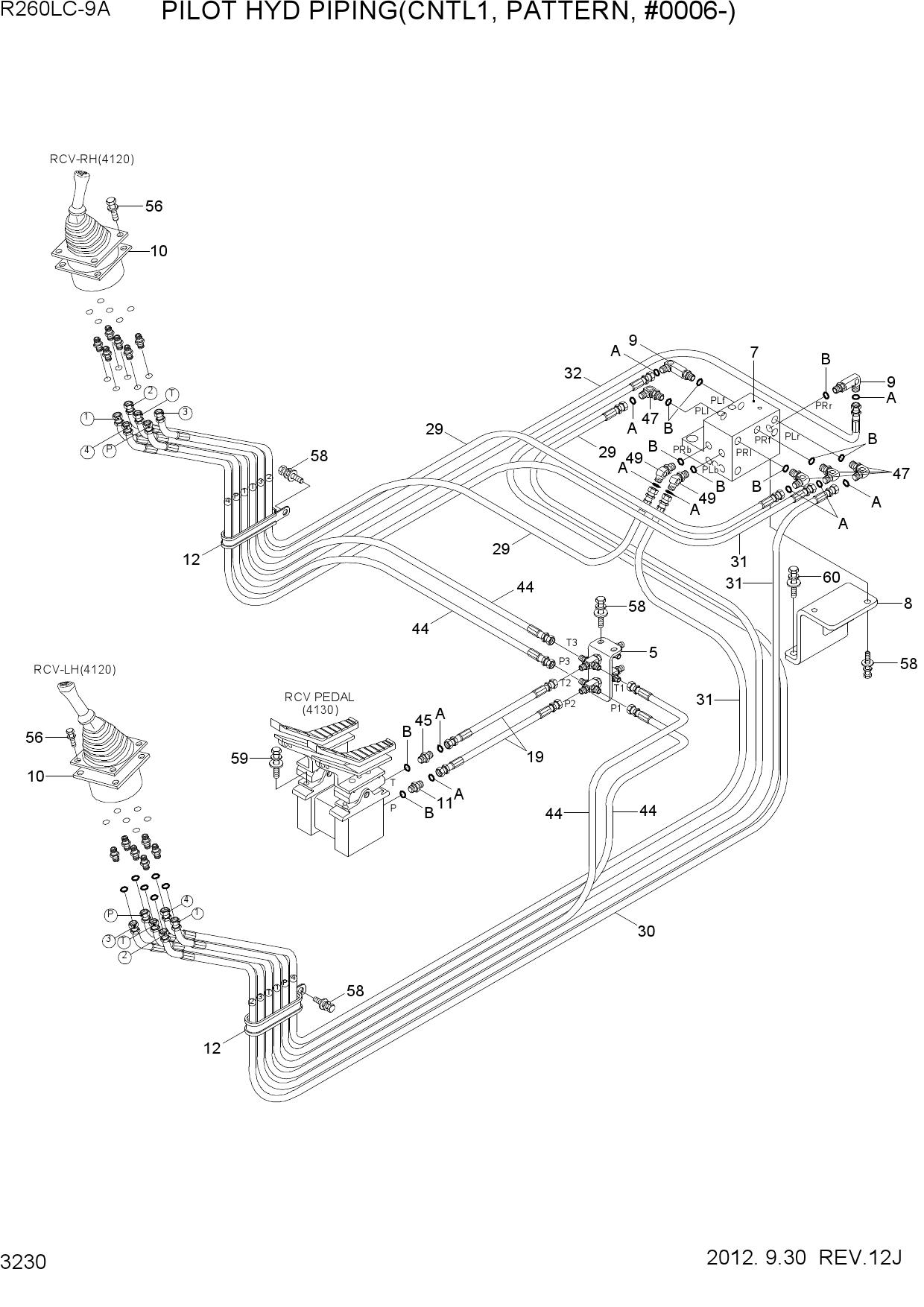

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A PILOT HYD PIPING(CNTL1, PATTERN, #0006-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N6-25100 | CROSS ASSY | |
| 7 | 31Q6-22000 | PATERN CHANGE VALVE | |
| 8 | 31Q6-20190 | BRACKET | |
| 9 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 10 | 31M6-51061 | SHIM(3.2T) | |
| 11 | 31N6-25060 | FILTER-LAST GUARD | |
| 12 | 31L7-10240 | CLAMP-TUBE INS | |
| 19 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X410-042051 | HOSE ASSY-SYNF,ORFS | |
| 30 | X410-042052 | HOSE ASSY-ORFS 0X45 | |
| 31 | X410-042055 | HOSE ASSY-SYNF,ORFS | |
| 32 | X410-042057 | HOSE ASSY-SYNF,ORFS | |
| 44 | P920-042023 | HOSE ASSY-ORFS 0X45 | |
| 45 | X500-110001 | CONNECTOR-ORFS | |
| 47 | X520-110001 | ELBOW-90,ORFS | |
| 49 | X530-110001 | ELBOW-45,ORFS | |
| 56 | S035-063046 | BOLT-W/WASHER | |
| 58 | S037-102526 | BOLT-W/WASHER | |
| 59 | S037-103026 | BOLT-W/WASHER | |
| 60 | S037-123026 | BOLT-W/WASHER | |
| A | S621-011001 | O-RING | |
| B | S631-011004 | O-RING |
