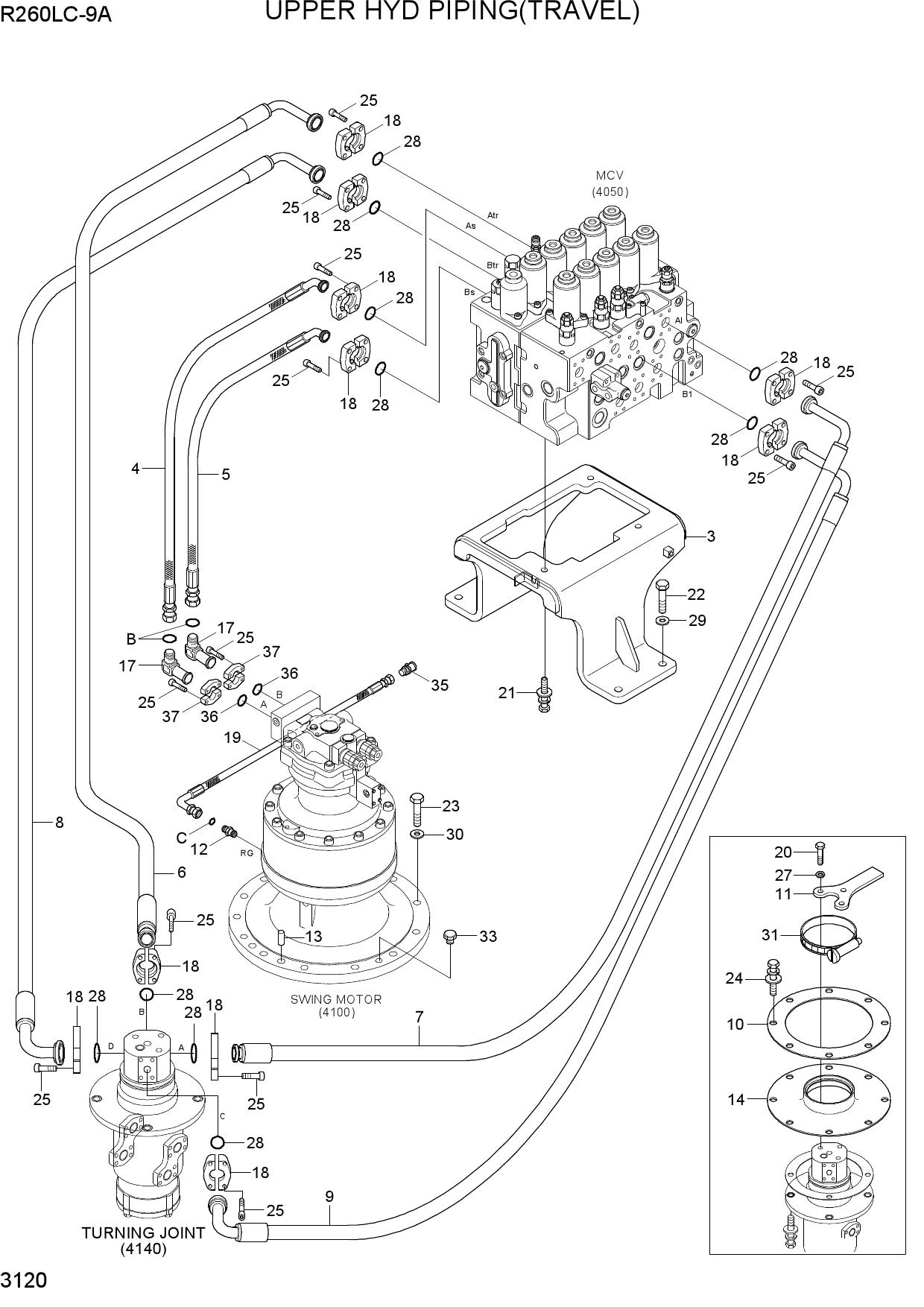

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A UPPER HYD PIPING(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31Q6-13261 | BRACKET-MCV MTG | |
| 4 | P950-167319 | HOSE ASSY-ORFS 0X45 | |
| 5 | P950-167318 | HOSE ASSY-ORFS,FLG 0X45 | |
| 6 | 31Q7-11270 | HOSE ASSY | |
| 7 | 31Q7-11280 | HOSE ASSY | |
| 8 | 31Q7-11290 | HOSE ASSY | |
| 9 | 31Q7-11300 | HOSE ASSY | |
| 10 | 31N1-40951 | COVER-T/JOINT | |
| 11 | 31N1-40961 | BRACKET-T/JOINT | |
| 12 | X500-430003 | CONNECTOR-ORFS | |
| 13 | 31EN-12360 | PIN-DOWEL | |
| 14 | 31N1-40941 | RUBBER-T/JOINT | |
| 17 | 31N8-16210 | ELBOW-90,FLANGE | |
| 18 | P173-160104 | FLANGE-HYD,SPLIT | |
| 19 | 31QB-21091 | HOSE ASSY-THD,0X90 | |
| 20 | S017-140306 | BOLT-HEX | |
| 21 | S037-124026 | BOLT-W/WASHER | |
| 22 | S017-20050D | BOLT-HEX | |
| 23 | S017-24085D | BOLT-HEX | |
| 24 | S037-102026 | BOLT-W/WASHER | |
| 25 | S109-100306 | BOLT-SOCKET | |
| 27 | S411-140006 | WASHER-SPRING | |
| 28 | Y171-024004 | O-RING | |
| 29 | S441-200006 | WASHER-HARDENED | |
| 30 | S441-240006 | WASHER-HARDENED | |
| 31 | S520-130000 | CLAMP-HOSE | |
| 33 | S981-243000 | PLUG | |
| 35 | 31Q9-11600 | VALVE-DRAIN | |
| 36 | Y171-019004 | O-RING | |
| 37 | P173-120102 | FLANGE-HYD,SPLIT | |
| B | S621-021001 | O-RING | |
| C | S621-012001 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R260LC-9A в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
