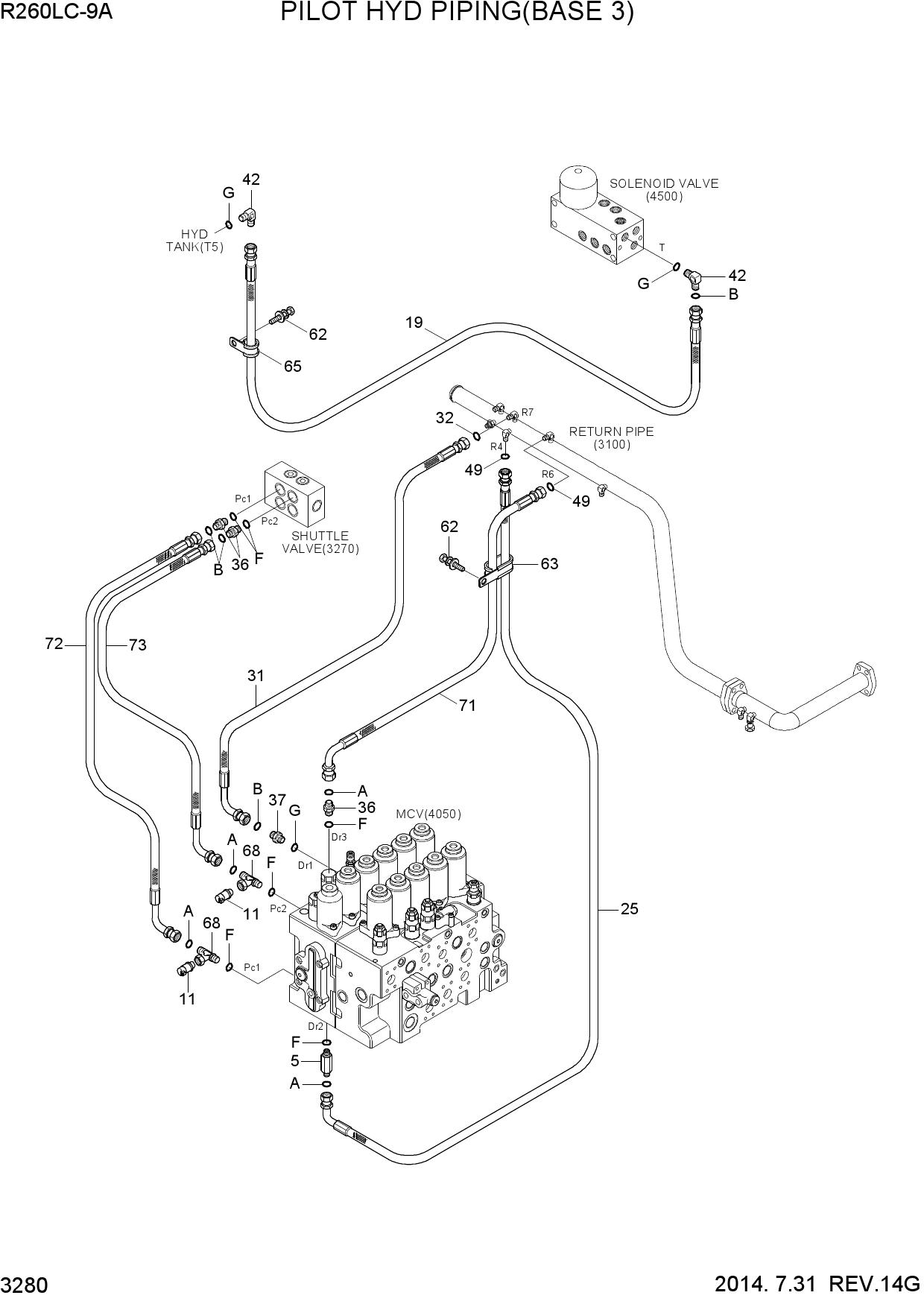

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A PILOT HYD PIPING(BASE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 11 | 31Q4-40820 | SENSOR-PRESSURE | |
| 19 | X400-062032 | HOSE ASSY-SYNF,ORFS | |
| 25 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 31 | X420-062007 | HOSE ASSY-ORFS 0X90 | |
| 31 | P930-062007 | HOSE ASSY-ORFS 0X90 | |
| 32 | S621-012001 | O-RING | |
| 36 | X500-110001 | CONNECTOR-ORFS | |
| 37 | X500-110002 | CONNECTOR-ORFS | |
| 42 | X520-110002 | ELBOW-90,ORFS | |
| 49 | S621-011001 | O-RING | |
| 62 | S037-102026 | BOLT-W/WASHER | |
| 63 | 31L7-10240 | CLAMP-TUBE INS | |
| 65 | 31L7-10210 | CLAMP-TUBE INS | |
| 68 | 31NB-20130 | TEE-RUN TYPE/TEST | |
| 71 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 72 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 73 | X420-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING |
