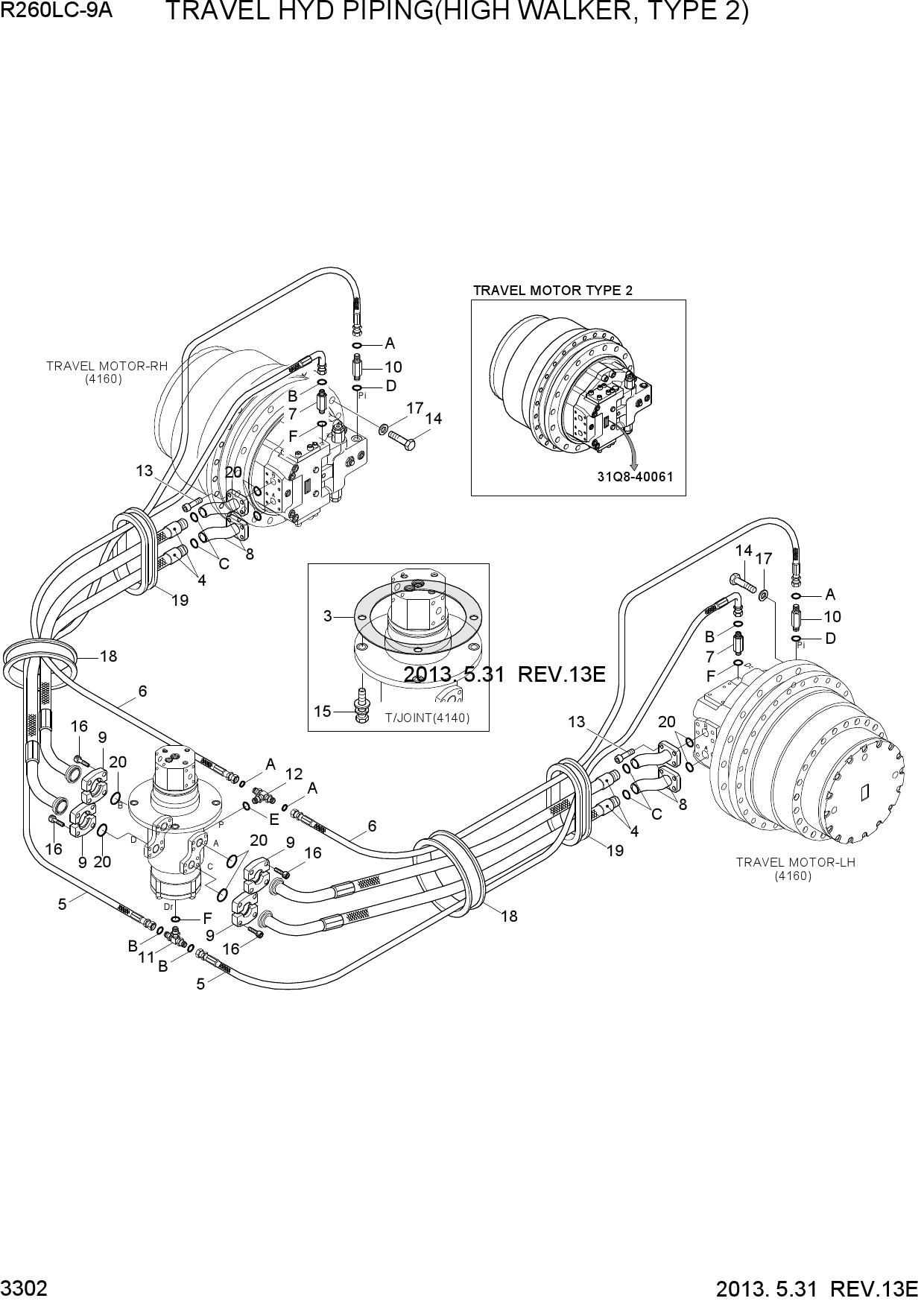

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A TRAVEL HYD PIPING(HIGH WALKER, TYPE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N1-40970 | GASKET | |
| 4 | P950-167348 | HOSE ASSY-ORFS,FLG 0X45 | |
| 5 | P930-082056 | HOSE ASSY-ORFS 0X90 | |
| 6 | X410-042062 | HOSE ASSY-ORFS 0X45 | |
| 7 | 31N8-40190 | CONNECTOR-LONG,ORFS | |
| 8 | 32E9-00801 | FLANGE WA | |
| 9 | P173-160104 | FLANGE-HYD,SPLIT | |
| 10 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 11 | X810-085353 | TEE-B/TYPE,ORFS | |
| 12 | X810-065151 | TEE-B/TYPE,ORFS | |
| 13 | S109-120356 | BOLT-SOCKET | |
| 14 | S017-24065D | BOLT-HEX | |
| 14 | S017-24070D | BOLT-HEX | |
| 15 | S037-123026 | BOLT-W/WASHER | |
| 16 | S109-100306 | BOLT-SOCKET | |
| 17 | S441-240006 | WASHER-HARDENED | |
| 18 | S760-102200 | GROMMET | |
| 19 | S760-151224 | GROMMET | |
| 20 | Y171-024004 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S621-014001 | O-RING | |
| C | S621-021001 | O-RING | |
| D | S631-011004 | O-RING | |
| E | S631-014004 | O-RING | |
| F | S631-018004 | O-RING |
