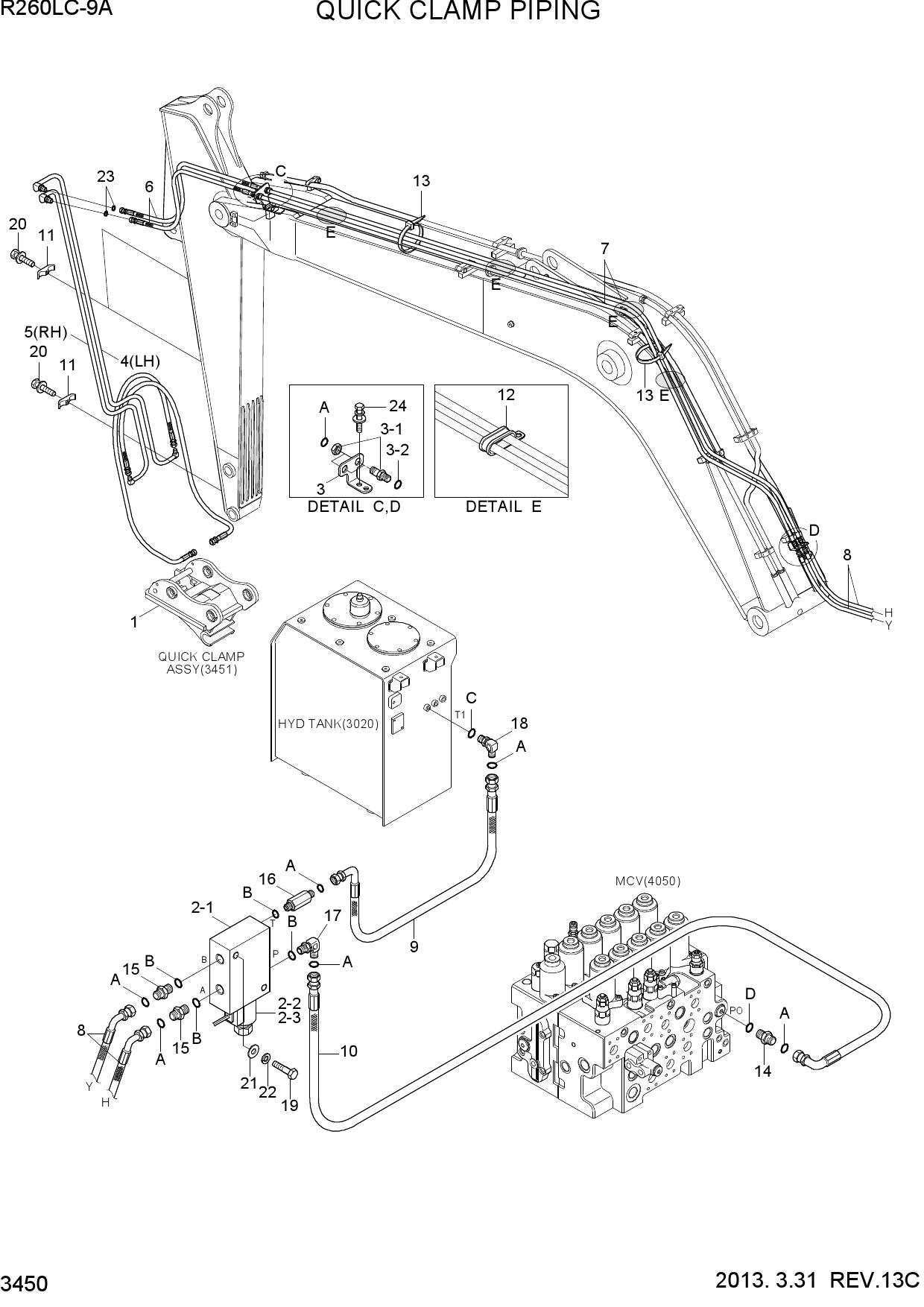

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A QUICK CLAMP PIPING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q6-91720 | SOLENOID VALVE-Q/CLAMP | |
| 2-1 | B-34EA-91720 | MANIFOLD | |
| 2-2 | GS044200NC | VALVE-SOLENOID | |
| 2-3 | LTC0627VMD/DT | COIL | |
| 3 | 31N8-95770 | TERMINAL-Q/CLAMP | |
| 3 | 31N8-95771 | TERMINAL-Q/CLAMP | |
| 3-1 | X540-120001 | CONNECTOR-ORFS | |
| 3-2 | S621-011001 | O-RING | |
| 4 | 31Q8-90510 | PIPE ASSY | |
| 4 | 31Q8-90530 | PIPE ASSY | |
| 5 | 31Q8-90520 | PIPE ASSY | |
| 5 | 31Q8-90540 | PIPE ASSY | |
| 6 | P915-048036 | HOSE ASSY-ORFS 0X0 | |
| 6 | P915-048024 | HOSE ASSY-ORFS 0X0 | |
| 6 | P915-048050 | HOSE ASSY-ORFS 0X0 | |
| 7 | P910-048122 | HOSE ASSY-ORFS 0X0 | |
| 8 | P920-048037 | HOSE ASSY-ORFS 0X45 | |
| 9 | P930-042009 | HOSE ASSY-ORFS 0X90 | |
| 10 | P930-048021 | HOSE ASSY-ORFS 0X90 | |
| 11 | 34EA-91811 | CLAMP-PIPE | |
| 12 | 31L7-10200 | CLAMP-TUBE | |
| 13 | S554-054300 | CLAMP-BAND | |
| 14 | 31NB-20140 | CONNECTOR-ORFS | |
| 15 | X500-110001 | CONNECTOR-ORFS | |
| 16 | X511-104512 | CONNECTOR-LONG,ORFS | |
| 17 | X520-110001 | ELBOW-90,ORFS | |
| 18 | X520-110012 | ELBOW-90,ORFS | |
| 19 | S017-100506 | BOLT-HEX | |
| 20 | S037-103026 | BOLT-W/WASHER | |
| 21 | S403-10200B | WASHER-PLAIN | |
| 22 | S411-100006 | WASHER-SPRING | |
| 23 | S621-011001 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S631-011004 | O-RING | |
| C | S631-014001 | O-RING | |
| D | S631-024004 | O-RING |
