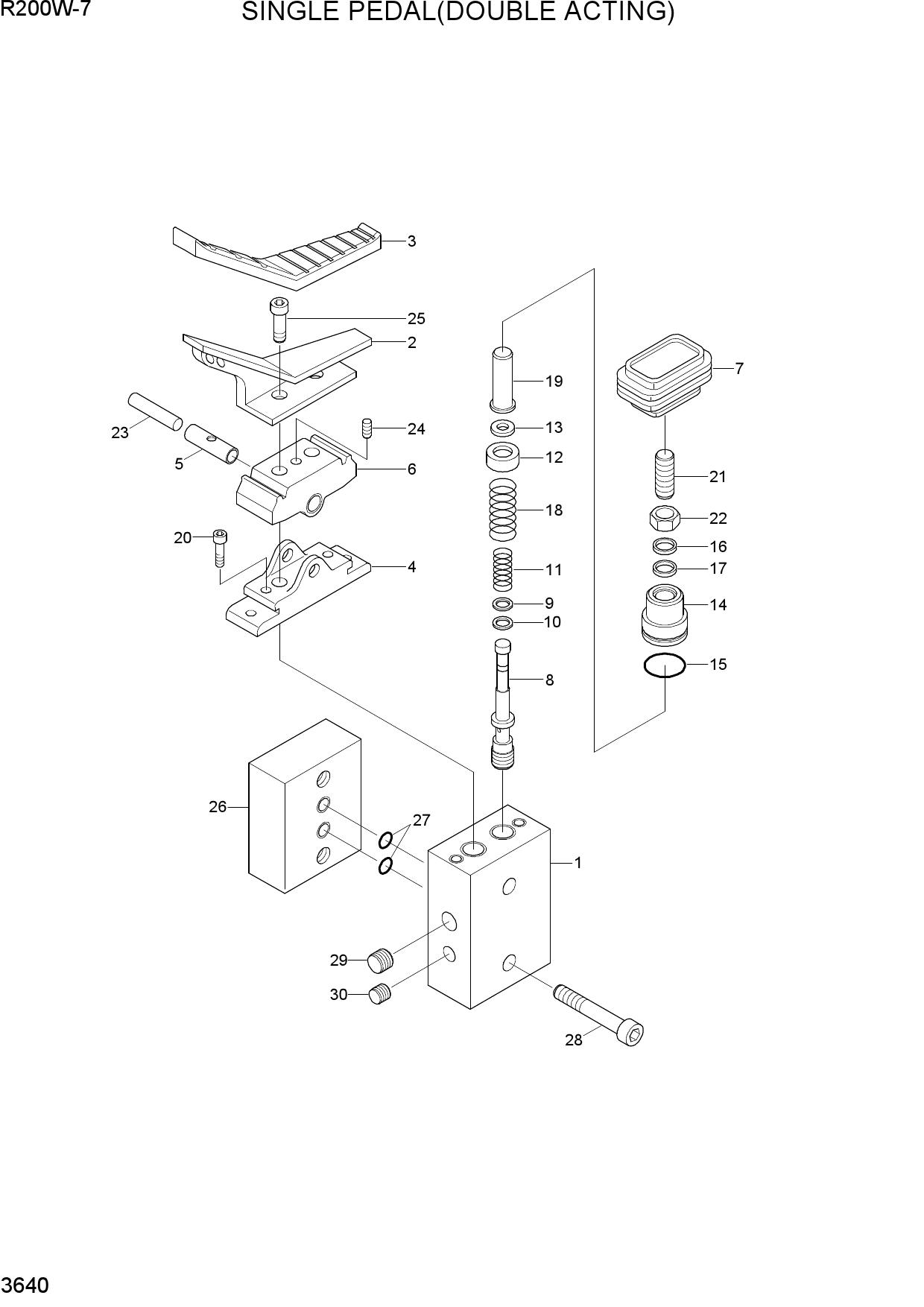

Запчасти для колесных экскаваторов Hyundai R200W-7 SINGLE PEDAL(DOUBLE ACTING)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 34E7-04720 | PEDAL-SINGLE | |
| 1 | XKAY-00596 | CASE | |
| 2 | XKAY-00597 | PEDAL | |
| 3 | XKAY-00598 | COVER-PEDAL | |
| 4 | XKAY-00554 | COVER | |
| 5 | XKAY-00010 | BUSHING | |
| 6 | XKAY-00011 | CAM | |
| 7 | XKAY-00005 | BELLOWS | |
| 8 | XKAY-00555 | SPOOL | |
| 9 | XKAY-00556 | SHIM(1.0T) | |
| 10 | XKAY-00029 | SEAT-SPRING | |
| 11 | XKAY-00599 | SPRING | |
| 12 | XKAY-00558 | SEAT-SPRING | |
| 13 | XKAY-00058 | STOPPER | |
| 14 | XKAY-00559 | PLUG | |
| 15 | XKAY-00438 | O-RING | |
| 16 | XKAY-00097 | SEAL-DUST | |
| 17 | XKAY-00055 | SEAL-ROD | |
| 18 | XKAY-00600 | SPRING | |
| 19 | XKAY-00430 | PUSH ROD | |
| 20 | XKAY-00431 | BOLT-SOCKET | |
| 21 | XKAY-00007 | SCREW-SET | |
| 22 | XKAY-00006 | NUT-HEX | |
| 23 | XKAY-00009 | SHAFT-CAM | |
| 24 | XKAY-00560 | SCREW-SET | |
| 25 | XKAY-00434 | BOLT-SOCKET | |
| 26 | XKAY-00601 | BLOCK | |
| 27 | XKAY-00323 | O-RING | |
| 28 | XKAY-00602 | BOLT-SOCKET | |
| 29 | XKAY-00032 | PLUG | |
| 30 | XKAY-00065 | PLUG |
