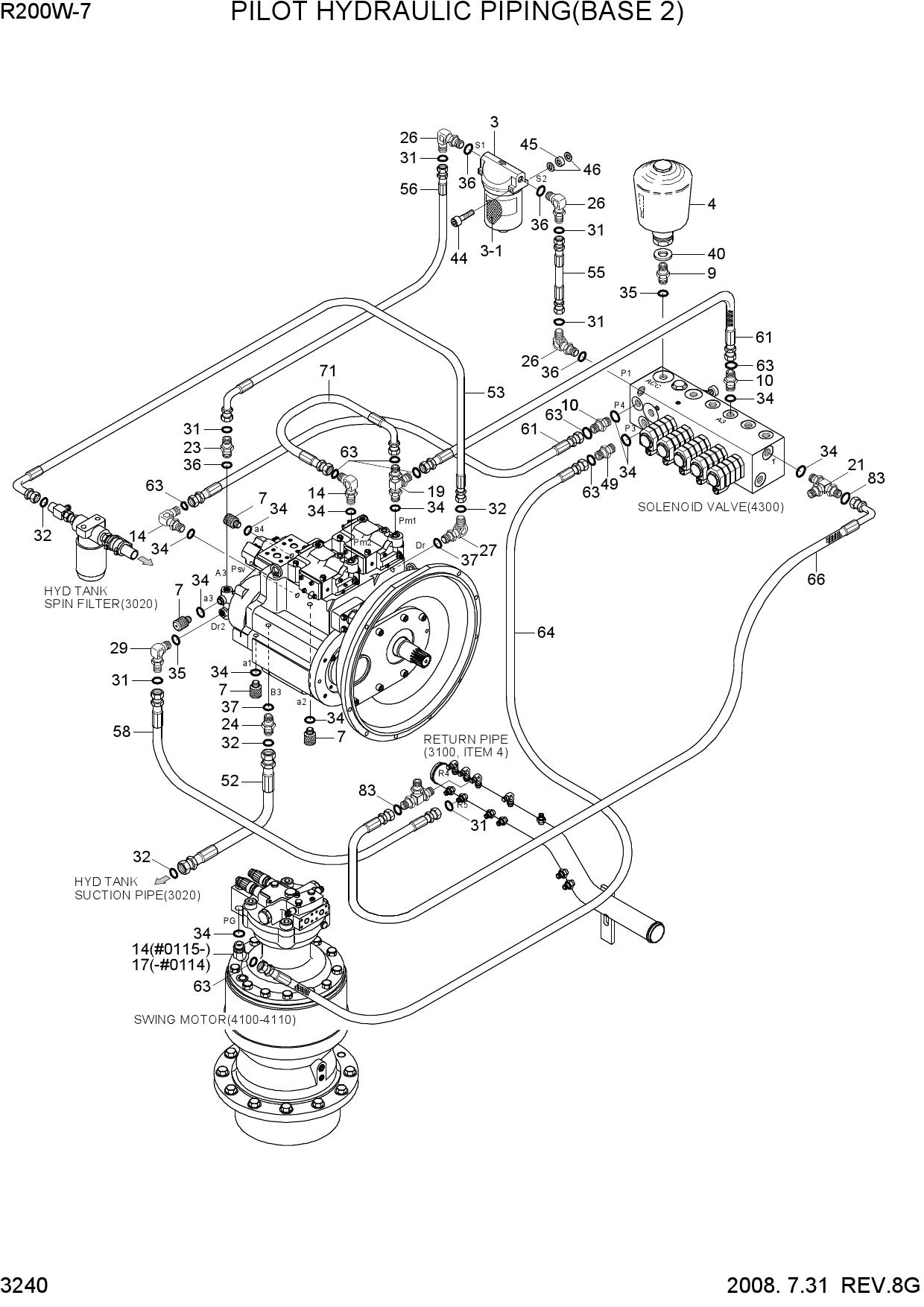

Запчасти для колесных экскаваторов Hyundai R200W-7 PILOT HYD PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31E3-0017 | FILTER-LINE | |
| 3-1 | 31E3-0018 | ELEMENT-LINE FILTER | |
| 4 | 31E3-3187 | ACCUMULATOR | |
| 7 | 31EK-11130 | COUPLING-SCREW | |
| 9 | 31E9-20060 | FITTING | |
| 9 | 31N6-24200 | CONNECTOR | |
| 10 | P010-110002 | CONNECTOR | |
| 10 | X500-110001 | CONNECTOR-ORFS | |
| 14 | P020-110001 | ELBOW-90 | |
| 14 | X520-110001 | ELBOW-90,ORFS | |
| 17 | X530-110001 | ELBOW-45,ORFS | |
| 19 | P310-040404 | TEE-BRANCH TYPE | |
| 19 | X810-045151 | TEE-B/TYPE,ORFS | |
| 21 | P320-040604 | TEE-RUN TYPE | |
| 21 | 31N3-22140 | TEE-ORFS | |
| 23 | X500-110003 | CONNECTOR-ORFS | |
| 24 | X500-110004 | CONNECTOR-ORFS | |
| 26 | X520-110003 | ELBOW-90,ORFS | |
| 27 | X520-110004 | ELBOW-90,ORFS | |
| 29 | X520-110013 | ELBOW-90,ORFS | |
| 31 | S621-014001 | O-RING | |
| 32 | S621-018001 | O-RING | |
| 34 | S631-011004 | O-RING | |
| 35 | S631-014004 | O-RING | |
| 36 | S631-018004 | O-RING | |
| 37 | S631-024004 | O-RING | |
| 40 | P391-080000 | WASHER-COPPER | |
| 40 | X321-021001 | RING-ED | |
| 44 | S109-060756 | BOLT-SOCKET | |
| 45 | 31EL-20100 | PAD-RUBBER | |
| 46 | S403-062002 | WASHER-PLAIN | |
| 49 | P101-104044 | CONNECTOR-LONG | |
| 49 | X511-104514 | CONNECTOR-LONG,ORFS | |
| 52 | P930-122012 | HOSE ASSY-ORFS 0X90 | |
| 53 | P930-122017 | HOSE ASSY-ORFS 0X90 | |
| 55 | P910-082010 | HOSE ASSY-ORFS 0X0 | |
| 55 | P910-082012 | HOSE ASSY-ORFS 0X0 | |
| 55 | P910-082010 | HOSE ASSY-ORFS 0X0 | |
| 56 | P920-082016 | HOSE ASSY-ORFS 0X45 | |
| 56 | P920-082013 | HOSE ASSY-ORFS 0X45 | |
| 58 | P930-082046 | HOSE ASSY-ORFS 0X90 | |
| 61 | P400-042017 | HOSE ASSY-COMPACT | |
| 61 | X400-042017 | HOSE ASSY-SYNF,ORFS | |
| 63 | S621-011001 | O-RING | |
| 64 | P400-042048 | HOSE ASSY-COMPACT | |
| 64 | X400-042048 | HOSE ASSY-SYNF ORFS | |
| 66 | P400-062042 | HOSE ASSY-COMPACT | |
| 66 | X400-062042 | HOSE ASSY-SYNFLEX,ORFS | |
| 71 | P420-042010 | HOSE ASSY-COMP 0X90 | |
| 71 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 71 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 83 | S621-012001 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R200W-7 в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
