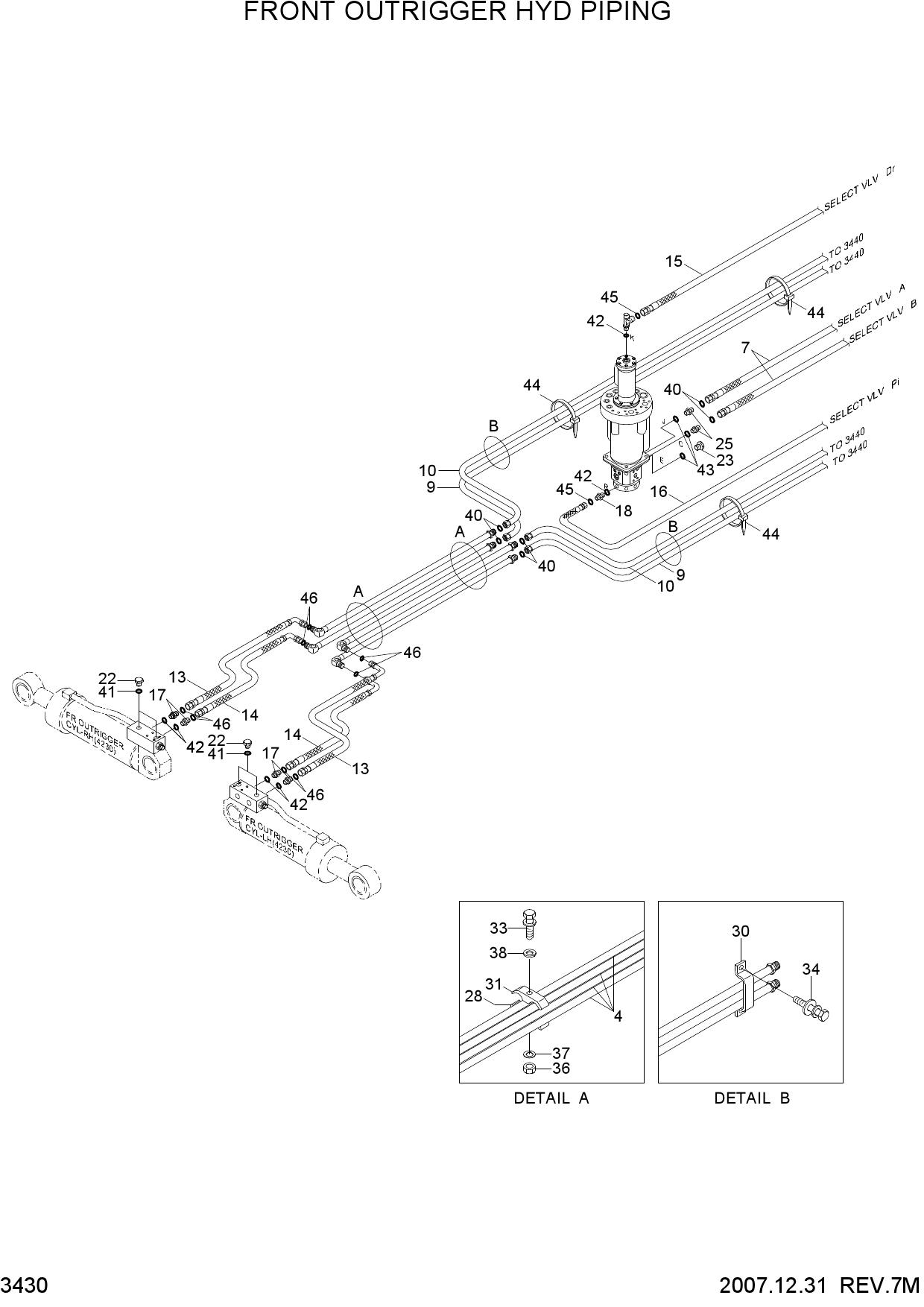

Запчасти для колесных экскаваторов Hyundai R200W-7 FRONT OUTRIGGER HYD PIPING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-70330 | PIPE ASSY | |
| 4 | 31N6-70331 | PIPE ASSY | |
| 4 | 31N6-70331BG | PIPE ASSY | |
| 7 | 31N6-70150 | HOSE ASSY | |
| 9 | P923-087034 | HOSE ASSY-ORFS 0X45 | |
| 10 | P923-087035 | HOSE ASSY-ORFS 0X45 | |
| 13 | P613-067014 | HOSE ASSY-THD 0X45 | |
| 13 | P613-067011 | HOSE ASSY-THD 0X45 | |
| 13 | P623-067011 | HOSE ASSY-THD 0X90 | |
| 13 | P933-067011 | HOSE ASSY-ORFS 0X90 | |
| 14 | P613-067016 | HOSE ASSY-THD 0X45 | |
| 14 | P613-067013 | HOSE ASSY-THD 0X45 | |
| 14 | P623-067013 | HOSE ASSY-THD 0X90 | |
| 14 | P933-067013 | HOSE ASSY-ORFS 0X90 | |
| 15 | P413-042028 | HOSE ASSY-COMP 0X45 | |
| 15 | P923-042028 | HOSE ASSY-ORFS 0X45 | |
| 16 | P423-042035 | HOSE ASSY-COMP 0X90 | |
| 16 | P933-042035 | HOSE ASSY-ORFS 0X45 | |
| 17 | P010-110003 | CONNECTOR | |
| 17 | X500-110002 | CONNECTOR-ORFS | |
| 18 | P010-110013 | CONNECTOR | |
| 18 | X500-110013 | CONNECTOR-ORFS | |
| 22 | P220-110102 | PLUG-HEX | |
| 23 | P220-110103 | PLUG-HEX | |
| 25 | X500-110003 | CONNECTOR-ORFS | |
| 28 | 31E4-3030 | CLAMP-PIPE | |
| 30 | 31EM-45320 | CLAMP-HOSE | |
| 31 | 31EK-70490 | SPACER-CLAMP | |
| 33 | S017-101202 | BOLT-HEX | |
| 33 | S017-101206 | BOLT-HEX | |
| 34 | S037-102022 | BOLT-W/WASHER | |
| 34 | S037-102026 | BOLT-W/WASHER | |
| 36 | S205-101006 | NUT-HEX | |
| 37 | S403-10100B | WASHER-PLAIN | |
| 38 | S411-100006 | WASHER-SPRING | |
| 40 | S621-014001 | O-RING | |
| 41 | S631-011004 | O-RING | |
| 42 | S631-014004 | O-RING | |
| 43 | S631-018004 | O-RING | |
| 44 | S552-102370 | CLAMP-BAND | |
| 45 | S621-011001 | O-RING | |
| 46 | S621-012001 | O-RING |
