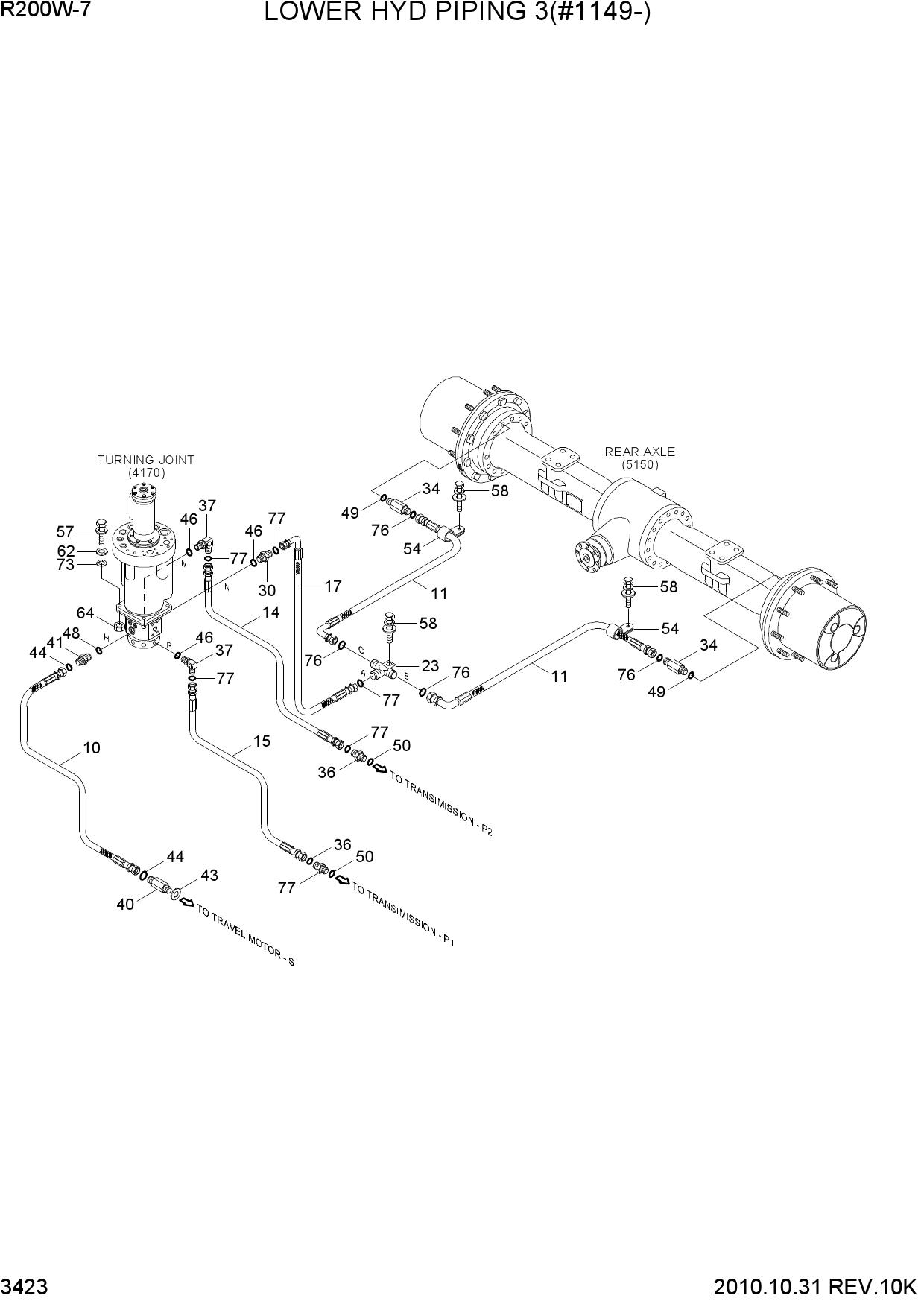

Запчасти для колесных экскаваторов Hyundai R200W-7 LOWER HYD PIPING 3(#1149-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | P923-122030 | HOSE ASSY-ORFS 0X45 | |
| 11 | P923-043020 | HOSE ASSY-ORFS 0X45 | |
| 14 | P933-062016 | HOSE ASSY-ORFS 0X90 | |
| 15 | P933-062015 | HOSE ASSY-ORFS 0X90 | |
| 17 | P933-063034 | HOSE ASSY-ORFS 0X90 | |
| 23 | 31N5-41030 | TEE-MTG | |
| 30 | X500-110002 | CONNECTOR-ORFS | |
| 34 | 31N6-41170 | CONNECTOR-LONG,ORFS | |
| 36 | X500-210005 | CONNECTOR-ORFS | |
| 37 | X520-110002 | ELBOW-90,ORFS | |
| 40 | X512-227546 | CONNECTOR-LONG,ORFS | |
| 40 | 31N6-41200 | CONNECTOR-LONG,ORFS | |
| 41 | 31N5-10250 | ELBOW-90,LONG,ORFS | |
| 43 | P392-270000 | WASHER-COPPER | |
| 44 | S621-018001 | O-RING | |
| 46 | S631-014004 | O-RING | |
| 48 | S631-024004 | O-RING | |
| 49 | Y161-014001 | O-RING | |
| 50 | Y161-016001 | O-RING | |
| 54 | 31L7-10190 | CLAMP-TUBE | |
| 57 | S017-120556 | BOLT-HEX | |
| 58 | S037-102526 | BOLT-W/WASHER | |
| 62 | S411-120006 | WASHER-SPRING | |
| 64 | S205-121006 | NUT-HEX | |
| 73 | S403-12100B | WASHER-PLAIN | |
| 76 | S621-011001 | O-RING | |
| 77 | S621-012001 | O-RING |
