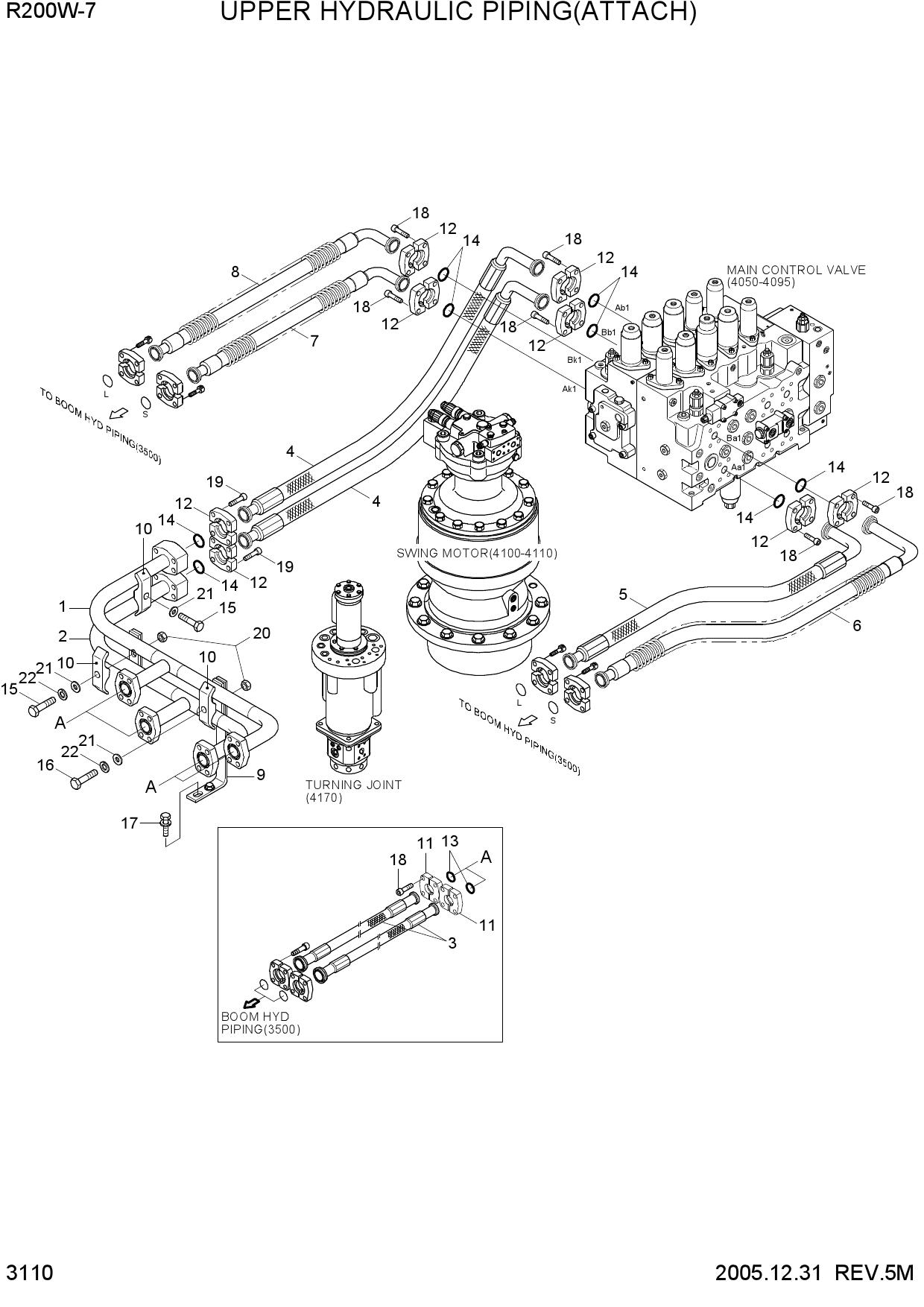

Запчасти для колесных экскаваторов Hyundai R200W-7 UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N6-13310 | PIPE ASSY | |
| 2 | 31N6-13320 | PIPE ASSY | |
| 3 | P683-127316 | HOSE ASSY-FLG 0X0 | |
| 4 | 31N6-13270 | HOSE ASSY-0X90 | |
| 5 | 31N6-14320 | HOSE ASSY | |
| 5 | 31N6-14321 | HOSE ASSY | |
| 5 | 31N6-13051 | HOSE ASSY-0X90 | |
| 6 | 31N6-14330 | HOSE ASSY | |
| 6 | 31N6-13061 | HOSE ASSY-0X90 | |
| 7 | 31N6-14340 | HOSE ASSY | |
| 7 | 31N6-14360 | HOSE ASSY | |
| 8 | 31N6-14350 | HOSE ASSY | |
| 8 | 31N6-14370 | HOSE ASSY | |
| 9 | 31N6-13070 | BRACKET | |
| 10 | 31EM-12170 | CLAMP-PIPE | |
| 11 | P173-120102 | FLANGE-HYD,SPLIT | |
| 12 | P173-160104 | FLANGE-HYD,SPLIT | |
| 13 | Y171-019004 | O-RING | |
| 14 | Y171-024004 | O-RING | |
| 15 | S017-100706 | BOLT-HEX | |
| 16 | S017-100856 | BOLT-HEX | |
| 17 | S037-123056 | BOLT-W/WASHER | |
| 18 | S109-100306 | BOLT-SOCKET | |
| 19 | S109-100406 | BOLT-SOCKET | |
| 20 | S205-10100B | NUT-HEX | |
| 21 | S403-10100B | WASHER-PLAIN | |
| 22 | S411-100006 | WASHER-SPRING |
