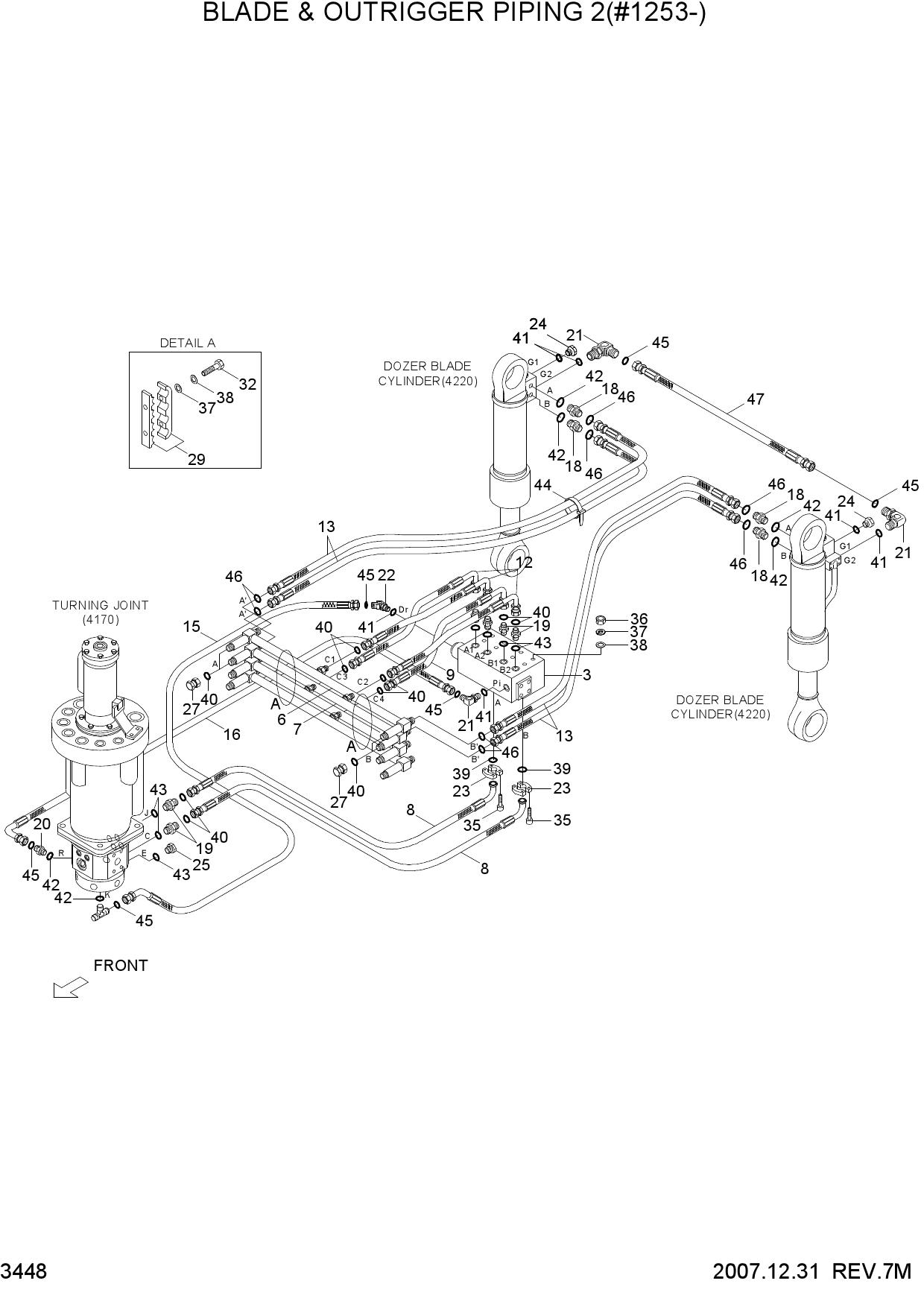

Запчасти для колесных экскаваторов Hyundai R200W-7 F/DOZER & R/DOZER PIPING 2(#1253-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31ER-12010 | SELECTOR VALVE | |
| 6 | 31N6-70341 | PIPE ASSY | |
| 6 | 31N6-70341BG | PIPE ASSY | |
| 7 | 31N6-70351 | PIPE ASSY | |
| 7 | 31N6-70351BG | PIPE ASSY | |
| 8 | 31N6-70150 | HOSE ASSY | |
| 9 | 31N6-70360 | HOSE ASSY-ORFS 0X90 | |
| 12 | P933-087014 | HOSE ASSY-ORFS 0X90 | |
| 13 | P913-067032 | HOSE ASSY-ORFS 0X0 | |
| 15 | P923-042028 | HOSE ASSY-ORFS 0X45 | |
| 16 | P933-042035 | HOSE ASSY-ORFS 0X45 | |
| 18 | X500-110002 | CONNECTOR-ORFS | |
| 19 | X500-110003 | CONNECTOR-ORFS | |
| 20 | X500-110013 | CONNECTOR-ORFS | |
| 21 | X520-110001 | ELBOW-90,ORFS | |
| 22 | X530-110001 | ELBOW-45,ORFS | |
| 23 | P173-160104 | FLANGE-HYD,SPLIT | |
| 24 | P220-110102 | PLUG-HEX | |
| 25 | P220-110104 | PLUG-HEX | |
| 27 | X710-100104 | CAP-DUST | |
| 29 | 31EK-70370 | CLAMP-PIPE | |
| 32 | S017-100506 | BOLT-HEX | |
| 35 | S109-101306 | BOLT-SOCKET | |
| 36 | S205-10100B | NUT-HEX | |
| 37 | S403-10100B | WASHER-PLAIN | |
| 38 | S411-100006 | WASHER-SPRING | |
| 39 | Y171-024004 | O-RING | |
| 40 | S621-014001 | O-RING | |
| 41 | S631-011004 | O-RING | |
| 42 | S631-014004 | O-RING | |
| 43 | S631-018004 | O-RING | |
| 44 | S552-102370 | CLAMP-BAND | |
| 45 | S621-011001 | O-RING | |
| 46 | S621-012001 | O-RING | |
| 47 | P913-047016 | HOSE ASSY-ORFS 0X0 |
