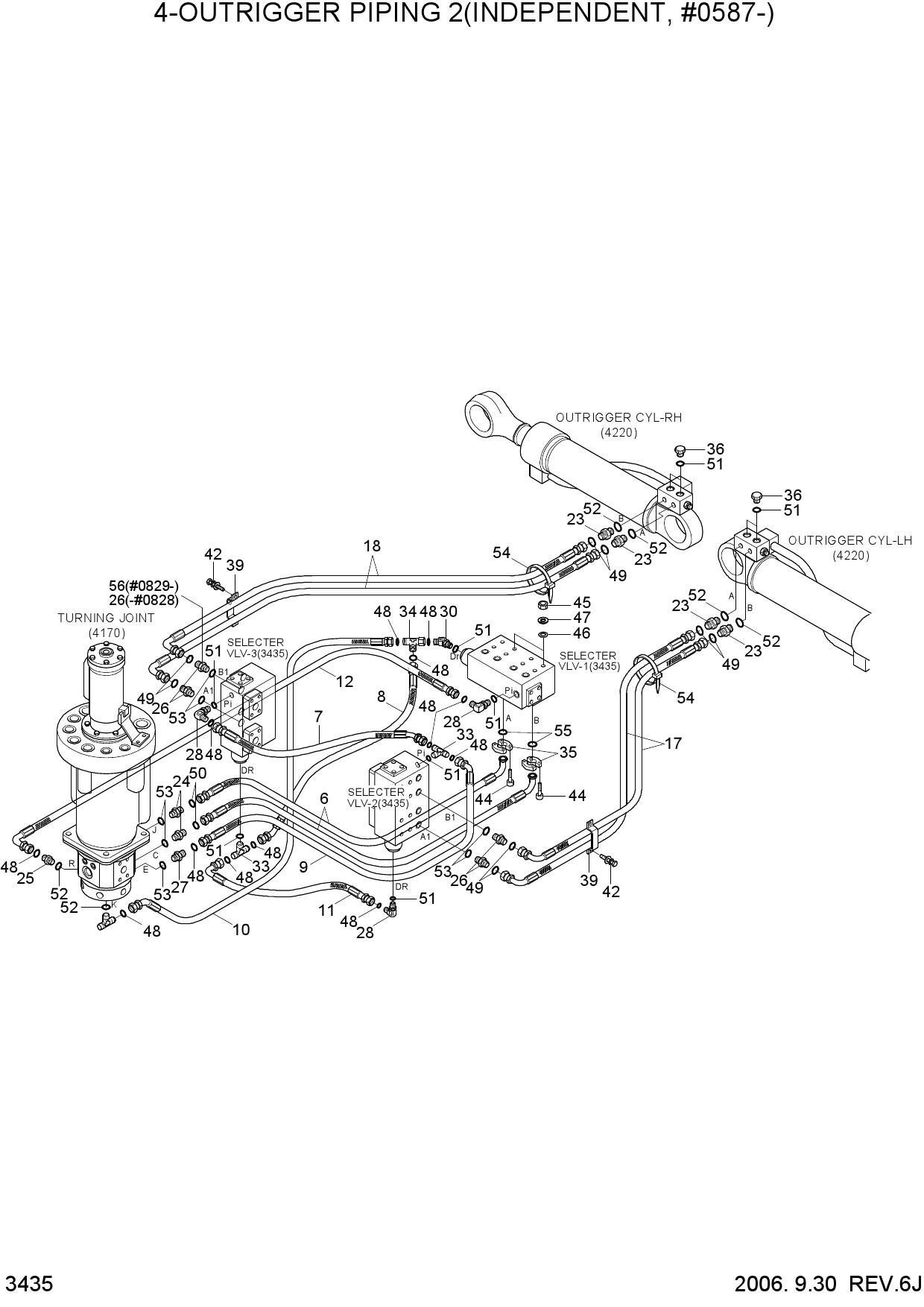

Запчасти для колесных экскаваторов Hyundai R200W-7 4-OUTRIGGER PIPING 2(INDEPENDENT,#0587-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 31N6-70150 | HOSE ASSY | |
| 7 | P923-042009 | HOSE ASSY-ORFS 0X45 | |
| 8 | P923-042014 | HOSE ASSY-ORFS 0X45 | |
| 9 | P923-042021 | HOSE ASSY-ORFS 0X45 | |
| 10 | P923-042027 | HOSE ASSY-ORFS 0X45 | |
| 11 | P933-042008 | HOSE ASSY-ORFS 0X90 | |
| 12 | P933-042035 | HOSE ASSY-ORFS 0X45 | |
| 17 | P933-067025 | HOSE ASSY-ORFS 0X90 | |
| 18 | P933-067027 | HOSE ASSY-ORFS 0X90 | |
| 23 | X500-110002 | CONNECTOR-ORFS | |
| 24 | X500-110003 | CONNECTOR-ORFS | |
| 25 | X500-110013 | CONNECTOR-ORFS | |
| 26 | X500-110015 | CONNECTOR-ORFS | |
| 26 | X500-110015 | CONNECTOR-ORFS | |
| 27 | 31N6-70520 | CONNECTOR | |
| 28 | X520-110001 | ELBOW-90,ORFS | |
| 30 | X530-110001 | ELBOW-45,ORFS | |
| 33 | X810-045151 | TEE-B/TYPE,ORFS | |
| 34 | X840-515151 | TEE-R/TYPE,ORFS | |
| 35 | P173-160104 | FLANGE-HYD,SPLIT | |
| 36 | P220-110102 | PLUG-HEX | |
| 39 | 31EM-45320 | CLAMP-HOSE | |
| 42 | S037-102026 | BOLT-W/WASHER | |
| 44 | S109-101306 | BOLT-SOCKET | |
| 45 | S205-101006 | NUT-HEX | |
| 46 | S403-101006 | WASHER-PLAIN | |
| 47 | S411-100006 | WASHER-SPRING | |
| 48 | S621-011001 | O-RING | |
| 49 | S621-012001 | O-RING | |
| 50 | S621-014001 | O-RING | |
| 51 | S631-011004 | O-RING | |
| 52 | S631-014004 | O-RING | |
| 53 | S631-018004 | O-RING | |
| 54 | S552-102370 | CLAMP-BAND | |
| 55 | Y171-024004 | O-RING | |
| 56 | X511-108523 | CONNECTOR-LONG,ORFS |
