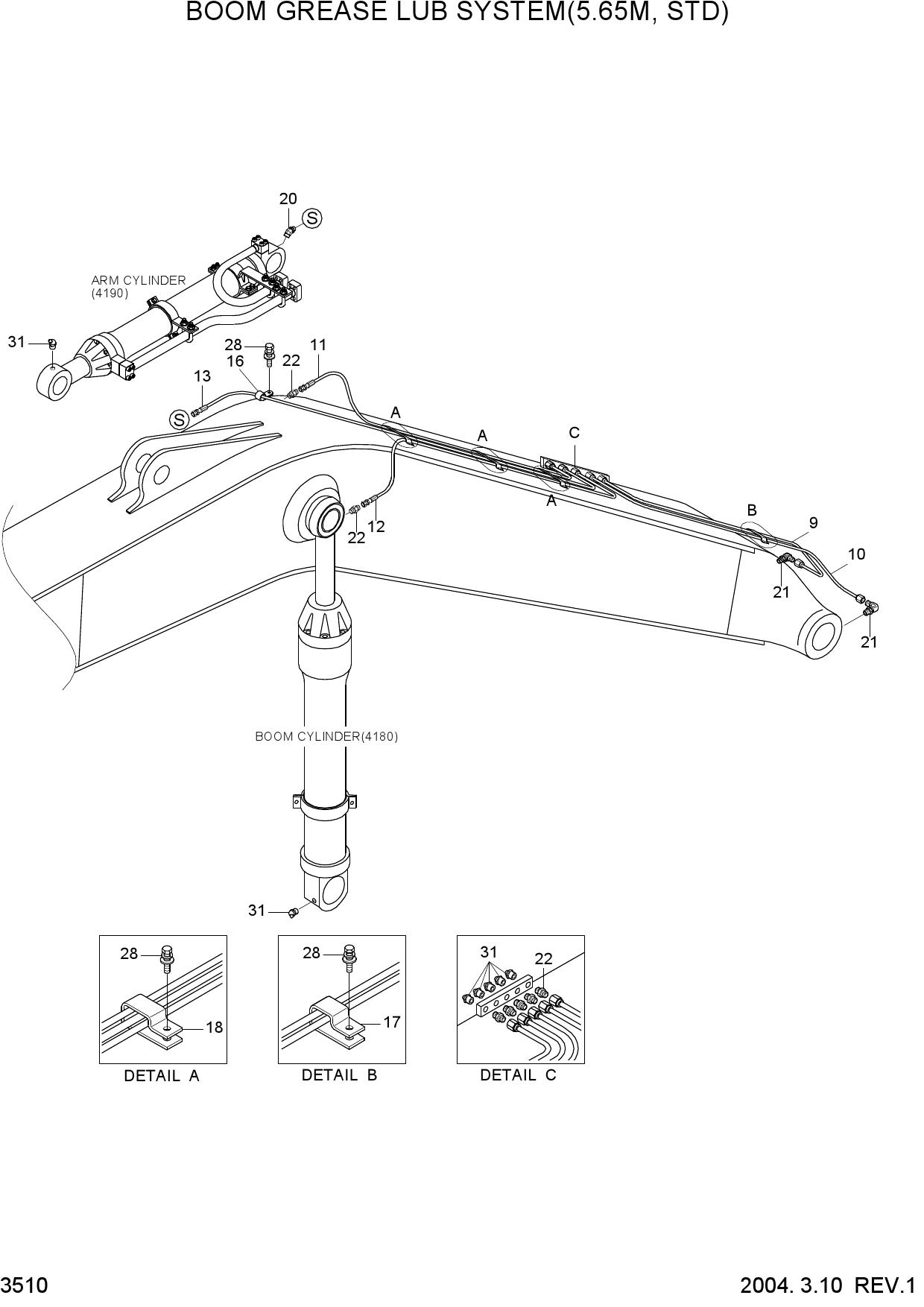

Запчасти для колесных экскаваторов Hyundai R200W-7 BOOM GREASE LUB SYSTEM(5.65M,STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | P840-042015 | HOSE ASSY-SYN THD | |
| 10 | P840-042016 | HOSE ASSY-SYN THD | |
| 11 | P840-042048 | HOSE ASSY-SYN THD | |
| 12 | P840-042050 | HOSE ASSY-SYN THD | |
| 13 | P840-042061 | HOSE ASSY-SYN THD | |
| 16 | 31N8-50370 | CLAMP-HOSE | |
| 17 | 31N8-50380 | CLAMP-HOSE | |
| 18 | 31N8-50390 | CLAMP-HOSE | |
| 20 | E231-0207 | ELBOW-45 | |
| 21 | 31NB-50280 | ELBOW-90 | |
| 22 | P010-430011 | CONNECTOR | |
| 28 | S035-062022 | BOLT-W/WASHER | |
| 31 | S651-810002 | NIPPLE-GREASE |
